About the product

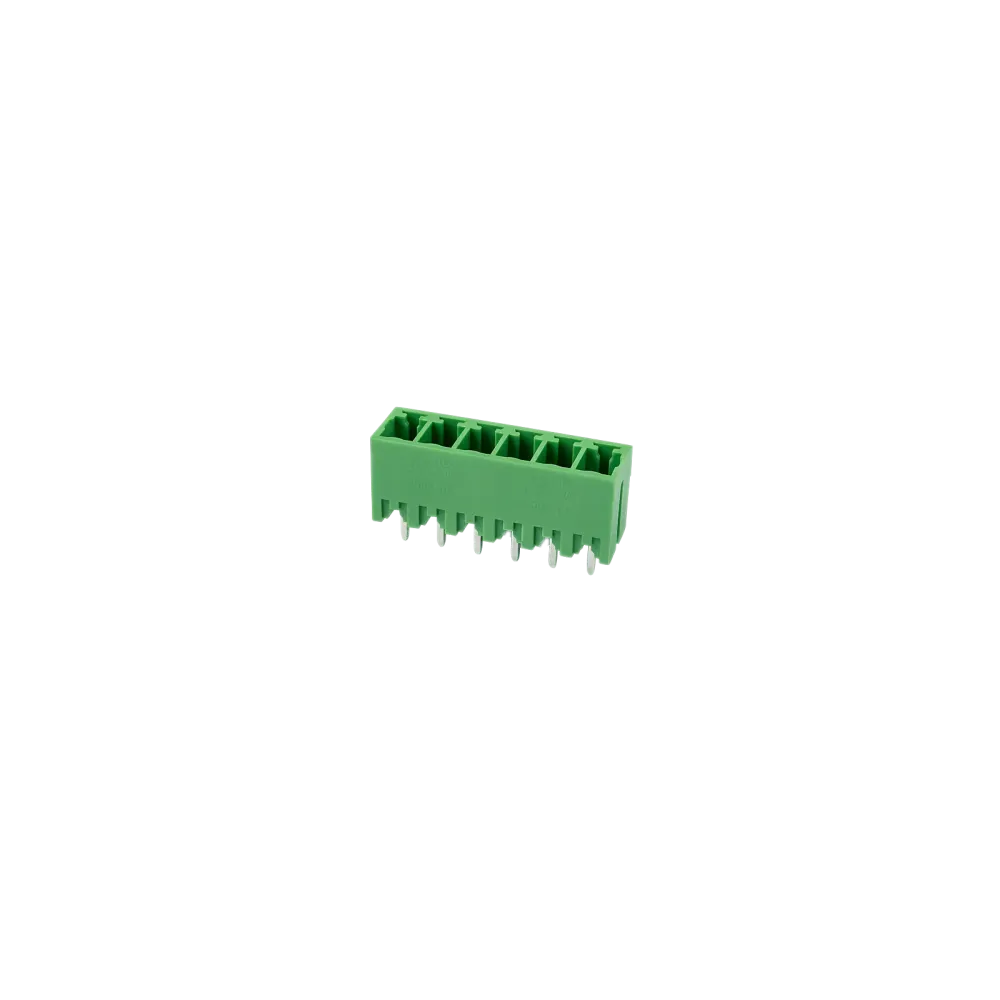

Printed circuit board (PCB) connection socket ECH381V-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-24 poles
- Grid 3.81mm
- Green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - Socket, Wave soldering, 3.81 mm pitch, 300 V, 8 A
Category: PCBConnector - Socket
Pitch: 3.81mm
Color: green
Interlock type: without
Soldering method: Wave soldering

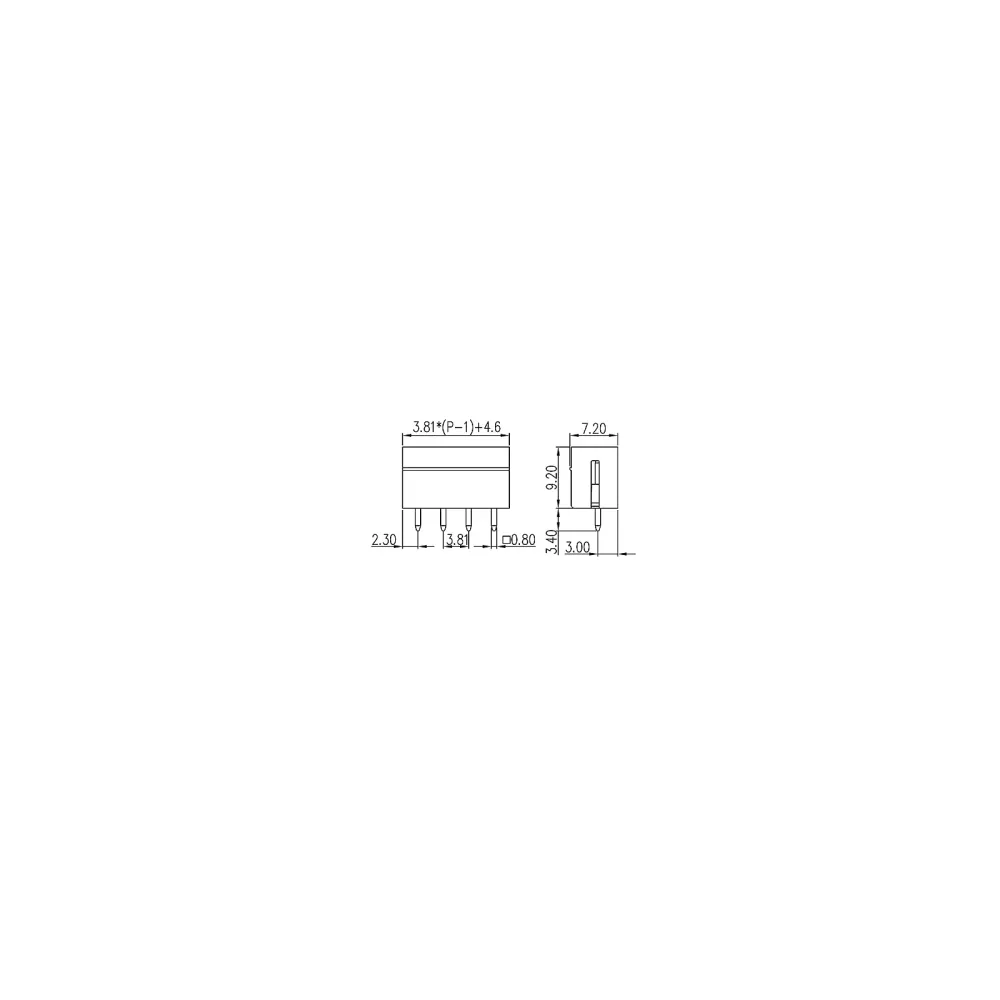

Length (mm): 3.81*(P-1)+4.6
Width (mm): 7.2
Height (mm): 9.2
Pin dimensions (thickness x width): 0.8×0.8

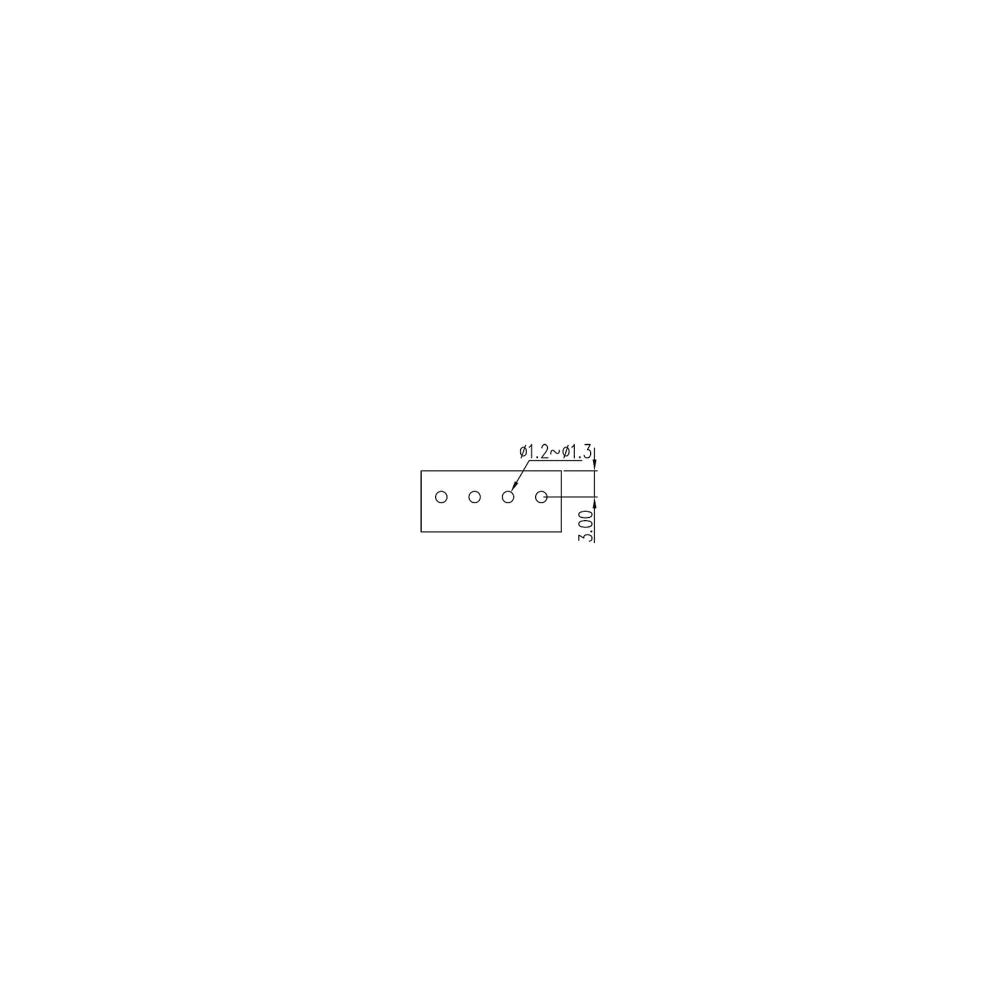

PCB hole diameter (mm): 1.2~1.3
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 8 mA |
| Contact grid | 3.81 mm |
