About the product

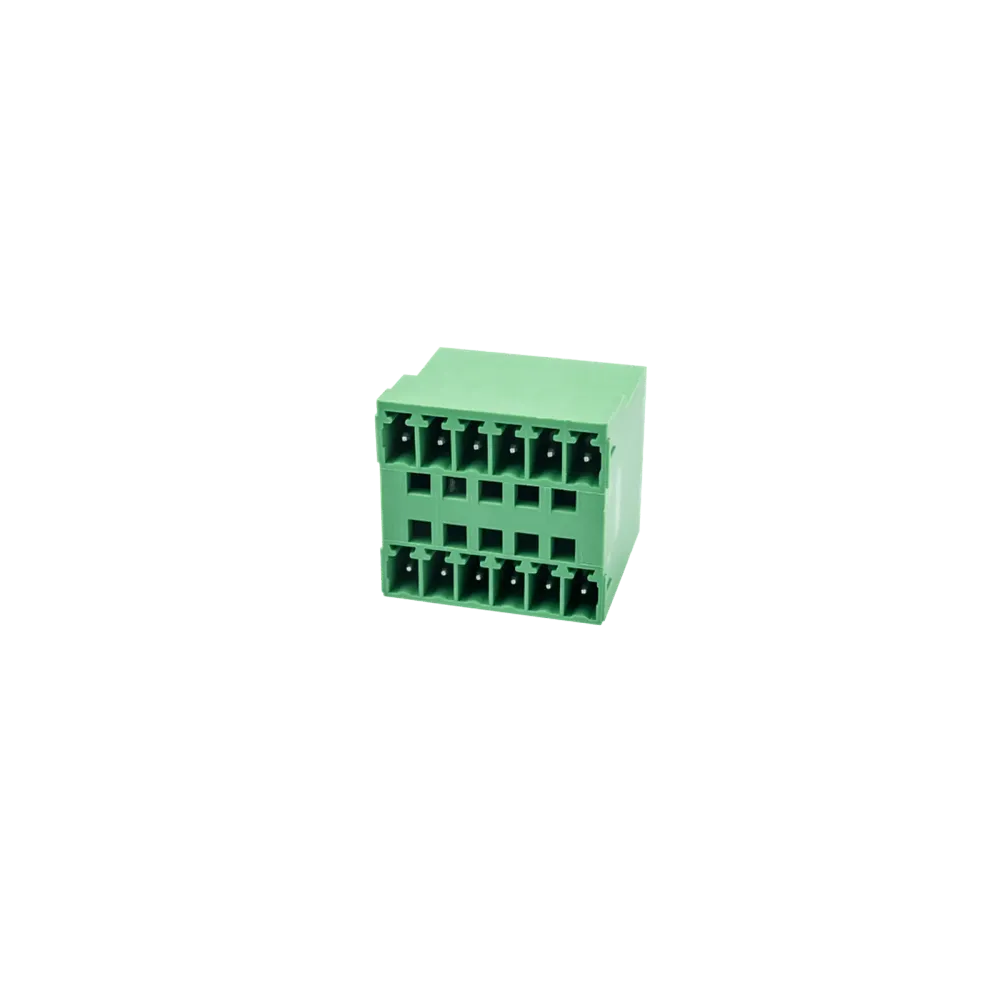

Printed circuit board (PCB) connection block/connection socket ECHB350R-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 4-44 poles
- Grid 3.50mm
- Wave soldering
- Green
- Double Level
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB connection block - socket, wave soldering, pitch: 3.50 mm, 300 V, 8 A
Category: PCB connection socket
Grid: 3.50 mm
Color: green
Soldering process: Wave soldering
Locking type: without
Soldering method: Wave soldering
Length (mm): 3.50*(P/2-1)+4.9
Width (mm): 21.9
Height (mm): 22.7
Pin dimensions (thickness x width): 0.8 x 0.8
PCB hole diameter (mm): 1.2~1.3
Number of poles: 04P~44 P
Level: Double level
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 8 mA |
| Contact grid | 3.50 mm |
