About the product

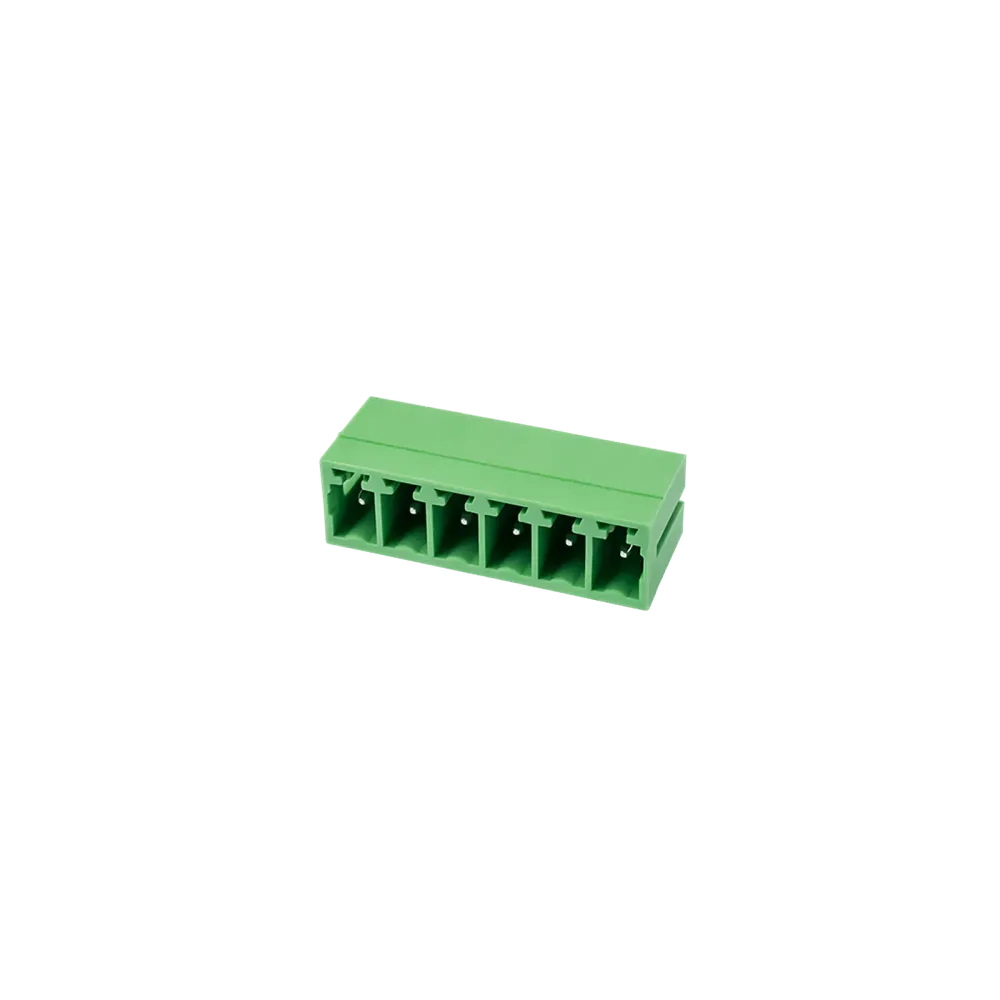

Printed circuit board (PCB) connector socket ECH350R-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-24 poles
- Grid 3.5 mm
- Green
- Wave Soldering
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - Socket, Wave soldering, pitch: 3.5 mm, 300 V, 8 A
Category: PCBConnector - Socket
Pitch: 3.5 mm
Color: green
Interlock type: none
Soldering method: Wave soldering
Length (mm): 3.50*(P-1)+4.3
Width (mm): 9.2
Height (mm): 7.2
Pin dimensions (thickness x width): 0.8 x 0.8
PCB hole diameter (mm): 1.2~1.3
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 8 mA |
| Contact grid | 3.50 mm |
