About the product

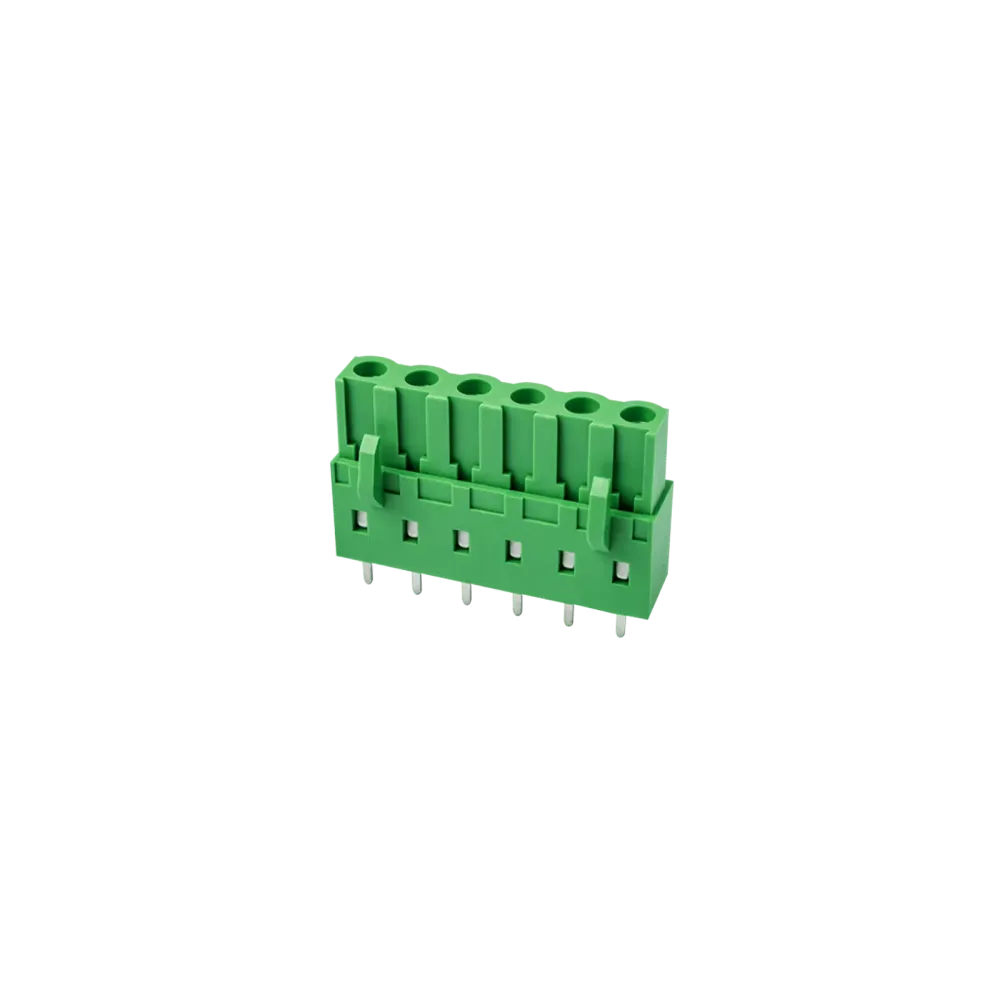

Printed circuit board (PCB) connector 2ESDCV-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector 2-24 poles
- Grid 5.08 mm
- Color green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - Plug, Wave soldering, Pitch: 5.08 mm, 300 V, 12 A
Category: PCBConnector - Plug
Pitch: 5.08 mm
Color: green
Soldering method: Wave soldering
Locking type: without
Length (mm): 5.08*(P-1)+5.6
Width (mm): 10.1
Height (mm): 19
Pin dimensions (thickness x width): 0.4 x 1.0
PCB hole diameter (mm): 1.3~1.5
Number of poles: 02P~24 P
Level: Single level
Subject to technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 12 mA |
| Contact grid | 5.08 mm |
