About the product

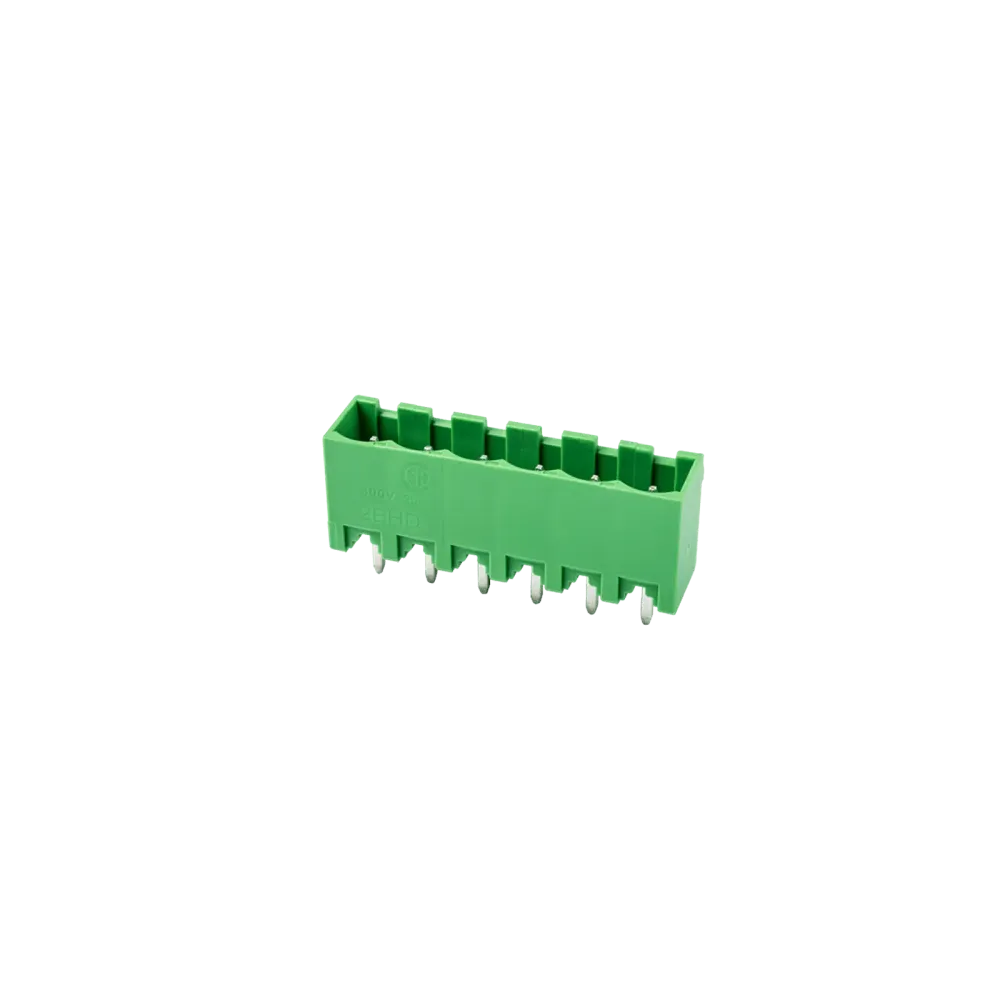

Printed circuit board (PCB) connector socket - socket 2EHDVC-xxp from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-24 poles
- Grid 5.08 mm
- Green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - Socket, Wave soldering, Pitch: 5.08 mm, 300 V, 20 A
Category: PCBConnector - Socket
Pitch: 5.08 mm
Color: green
Interlock type: none
Soldering method: Wave soldering

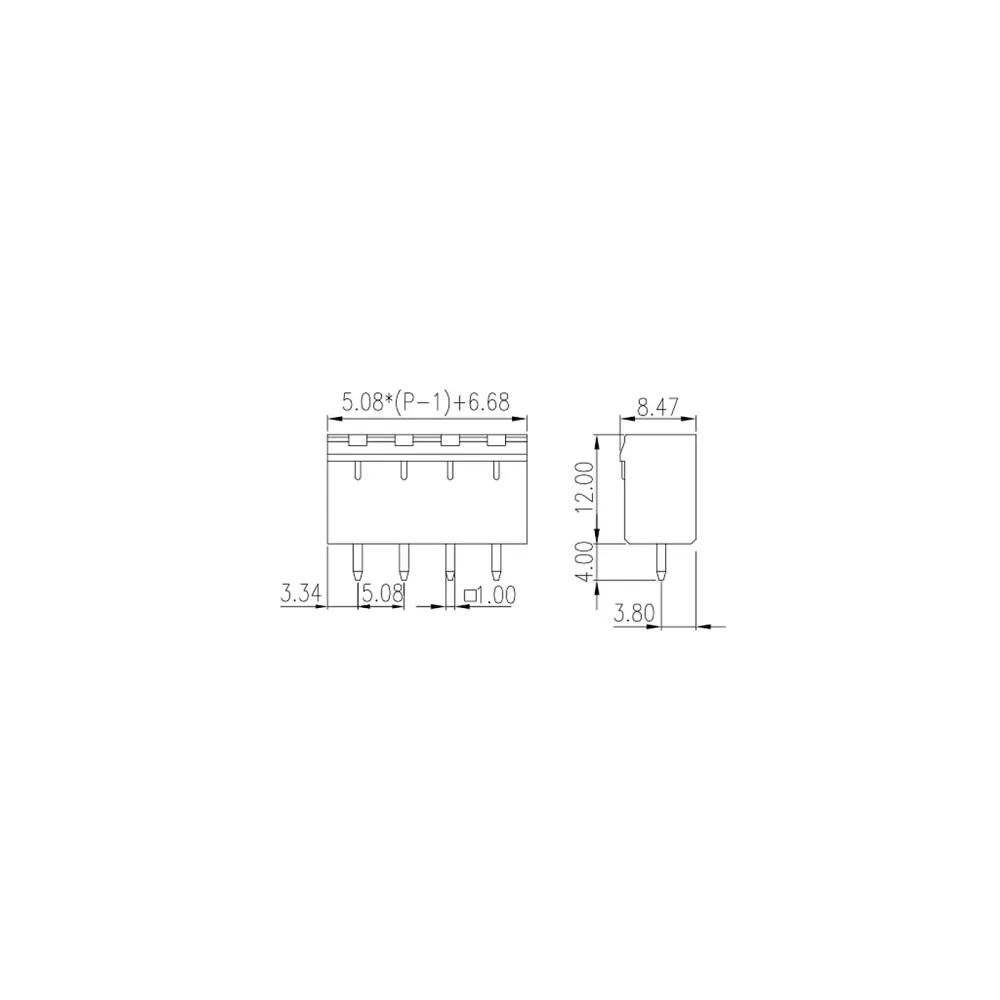

Length (mm): 5.08*(P-1)+6.68
Width (mm): 8.47
Height (mm): 12
Pin dimensions (thickness x width): 1.0 x 1.0
PCB hole diameter (mm): 1.6~1.7
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 20 A |
| Contact grid | 5.08 mm |
