About the product

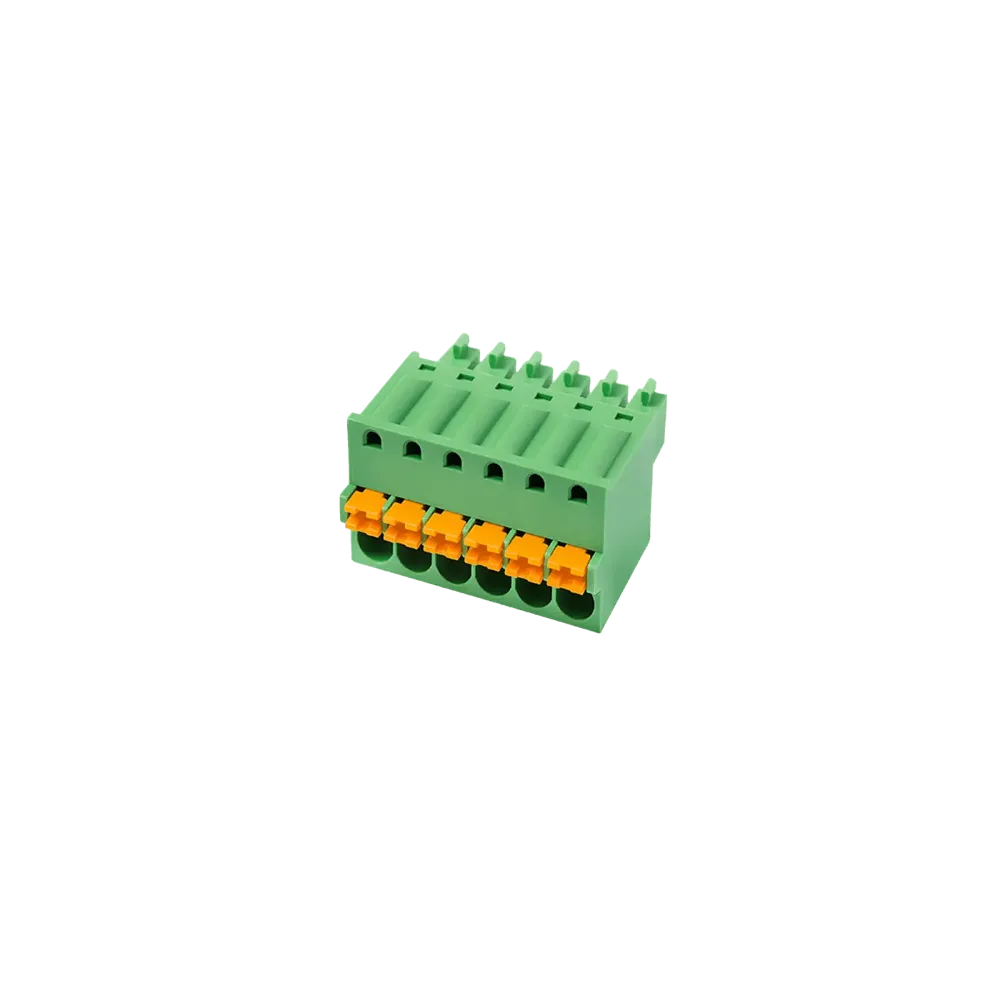

Printed circuit board (PCB) connector ESC350V-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector 2-24 poles
- Push in design
- Grid 3.50 mm
- Color green
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - Plug, Push in Design, Pitch: 3.50 mm, 300 V, 8 A
Category: PCBConnector - Plug
Pitch: 3.50 mm
Color: green
Connection type: Push in design
Locking type: without

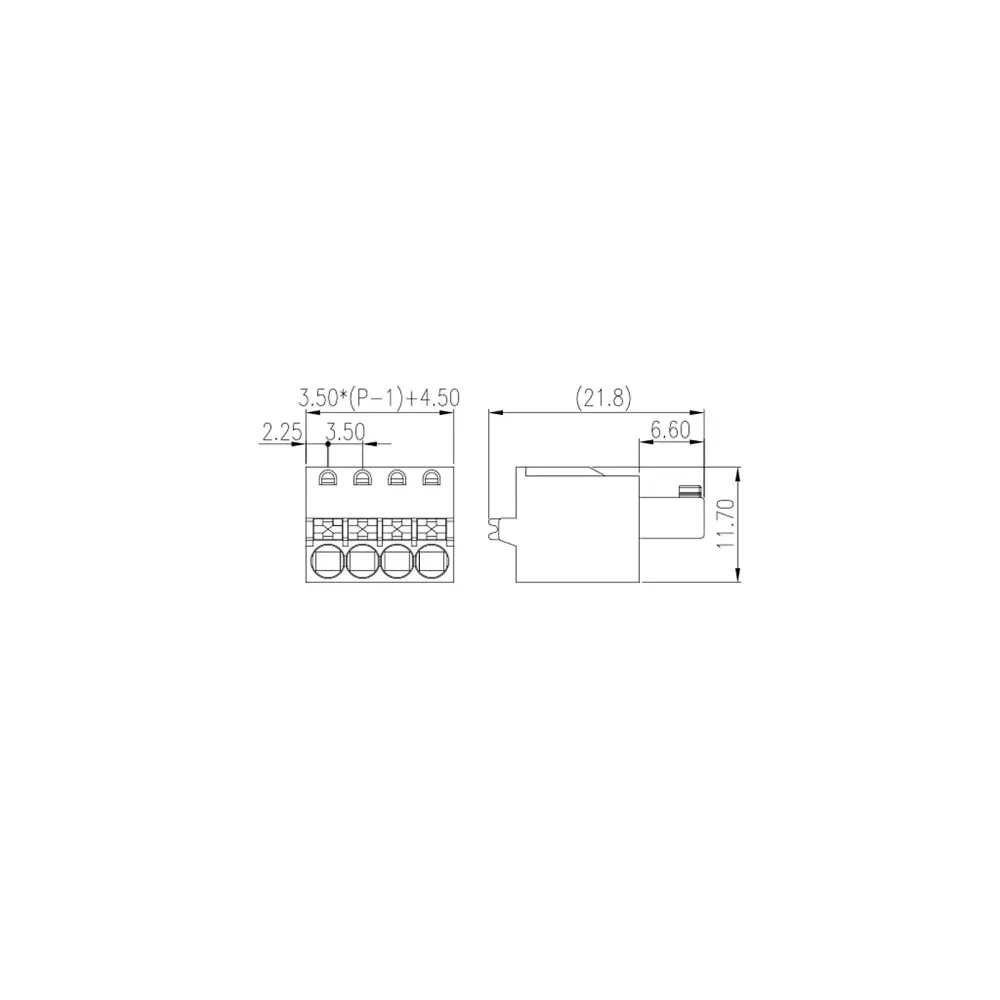

Length (mm): 3.50*(P-1)+4.50
Width (mm): 21.8
Height (mm): 11.7
Number of poles: 02P~24 P
Level: Single level
Subject to technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 8 mA |
| Contact grid | 3.50 mm |
