About the product

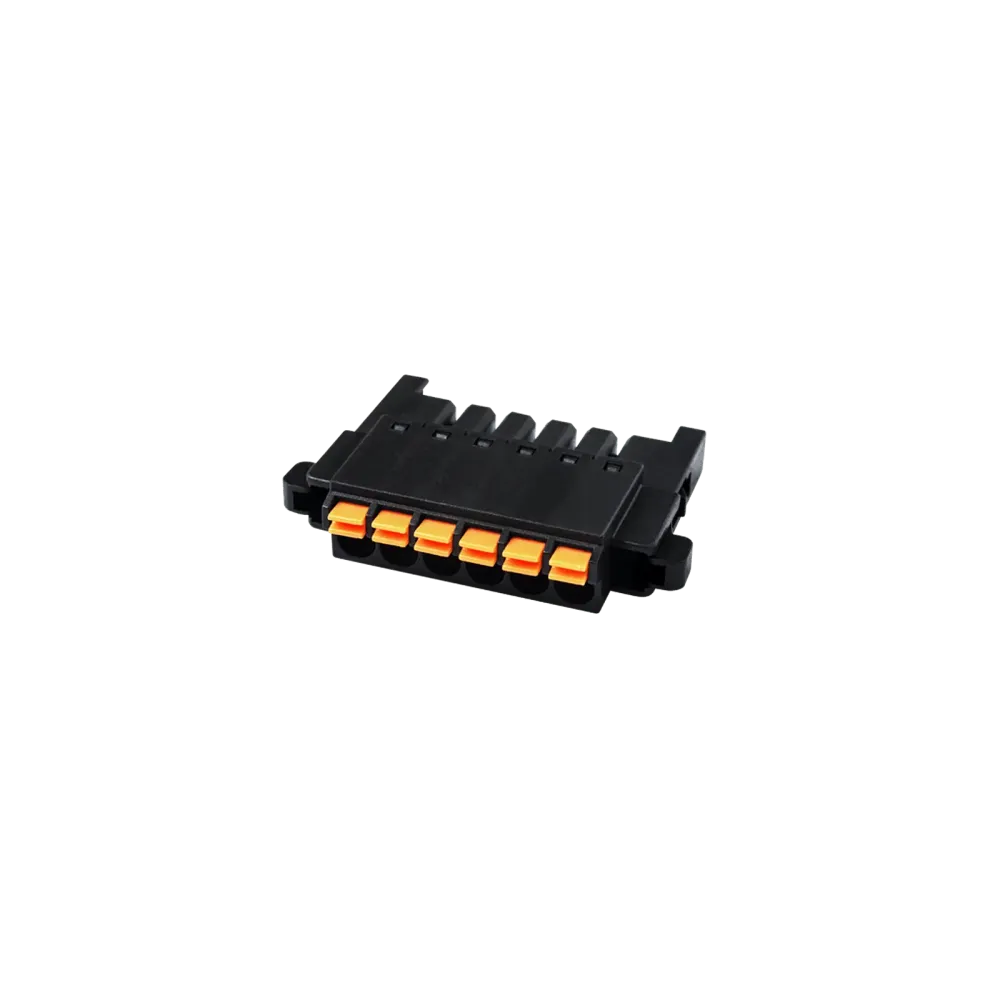

Printed circuit board (PCB) connector 0225-07xx from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connector 2-24 poles
- Push-in design for simple and flexible conductor connection
- Grid 3.50mm
- Color black
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Connector - Plug, Push-in Design, Pitch: 3.50mm, 300V, 8A
Category: PCBConnector - Plug (Plug)
Pitch: 3.50mm
Color: black
Connection type: Push in design
Locking type: With lock flange
Length (mm): 3.50*(P-1)+14.4
Width (mm): 24.4
Height (mm): 7.0
Number of poles: 02P~24P
Level: Single level
Subject to technical changes
Product specifications
| Nominal voltage (V) | 250 V |
| Nominal current | 8 mA |
| Contact grid | 3.50 mm |
