About the product

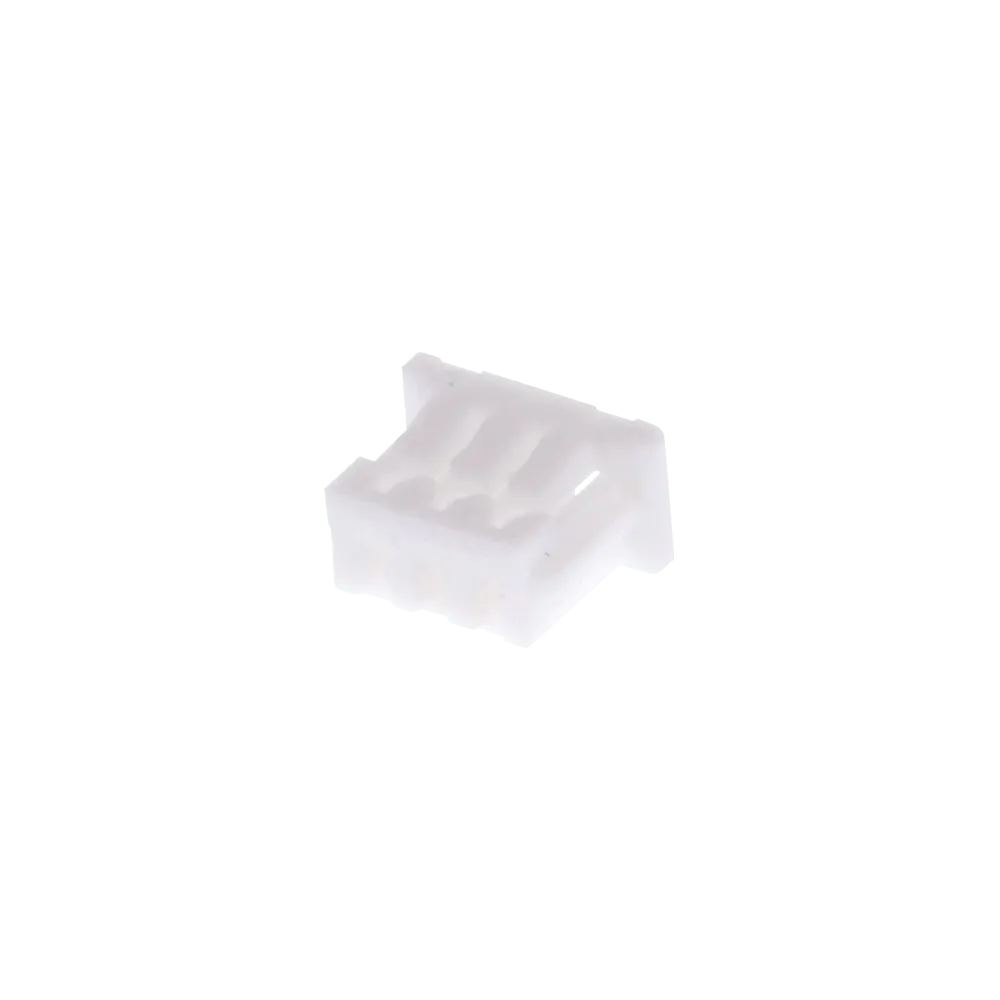

Plug housing PicoBlade 51021-xxxx from MOLEX
. The PicoBlade system from Molex was developed for wire harness applications and offers the same 1.0 A performance as comparable products with a 2.00 mm pitch in a very compact design with a 1.25 mm pitch.
- PCB socket, 1-15 poles, 1.25 mm pitch
Other non-published MOLEX products on request.
Technical data
Type: Crimp housing
Series: PicoBlade
Execution: Socket
Number of poles: 1×3..1×15
Grid dimension: 1.25 mm
Temperature range: -40..+85 °C
Cable cross-section: < 0.20 mm2
Load limits: 125 VAC / 1A
Subject to technical changes
Product specifications
| Nominal current | 1 mA |
| Contact grid | 1.25 mm |
