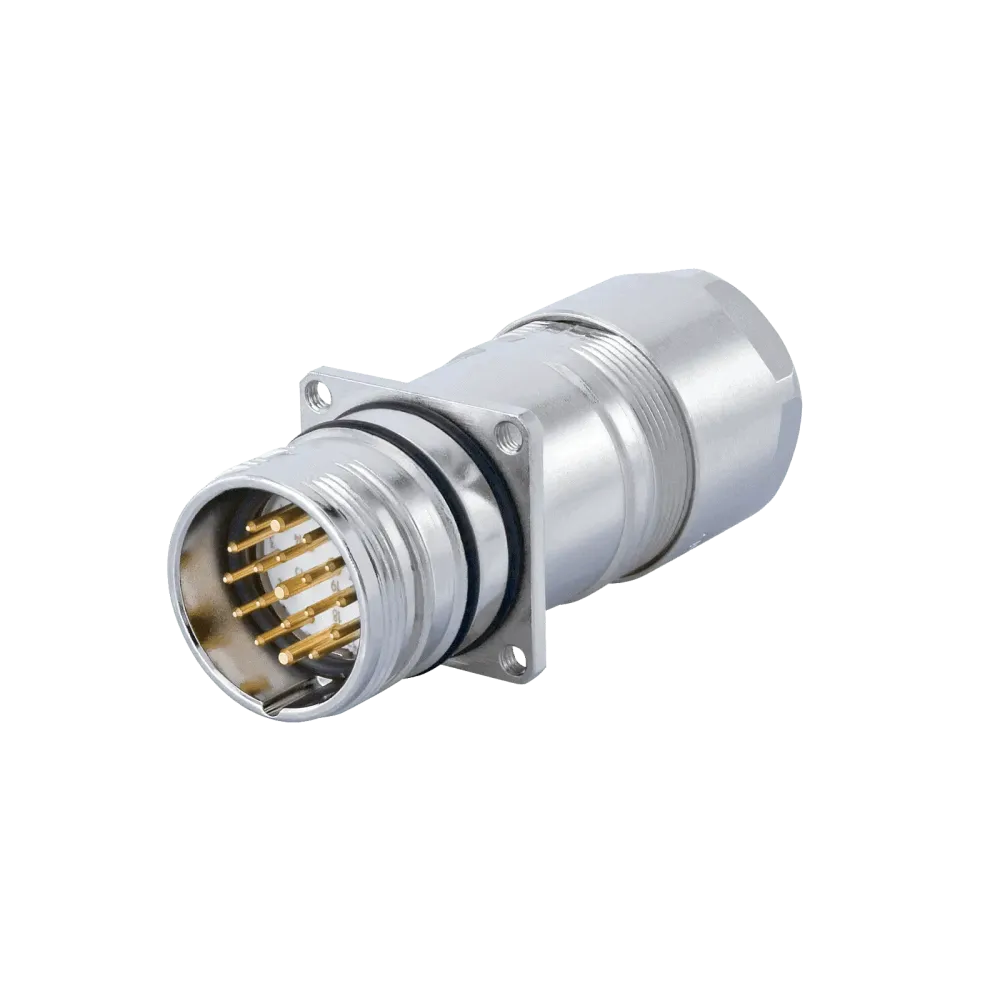

Housing M23 appliance coupler with strain relief Signal rear panel

M23 appliance coupler with strain relief Signal (Housing only, excl. insert and contacts)
. This proven and universally applicable connector system is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited possibilities.

// Numerous housing designs
// Wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener

A huge modular construction kit
. The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
. numerous advantages:

// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools

This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable contact insert >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

Technical data

• Housing material: brass, die-cast zinc
• Material housing surface: nickel-plated
• Mounting type: Rear wall
• Male thread on plug-in side: M23 x 1
• Locking type: Screw fastening
• Shielding: shielded
• Material seals/o-rings: NBR

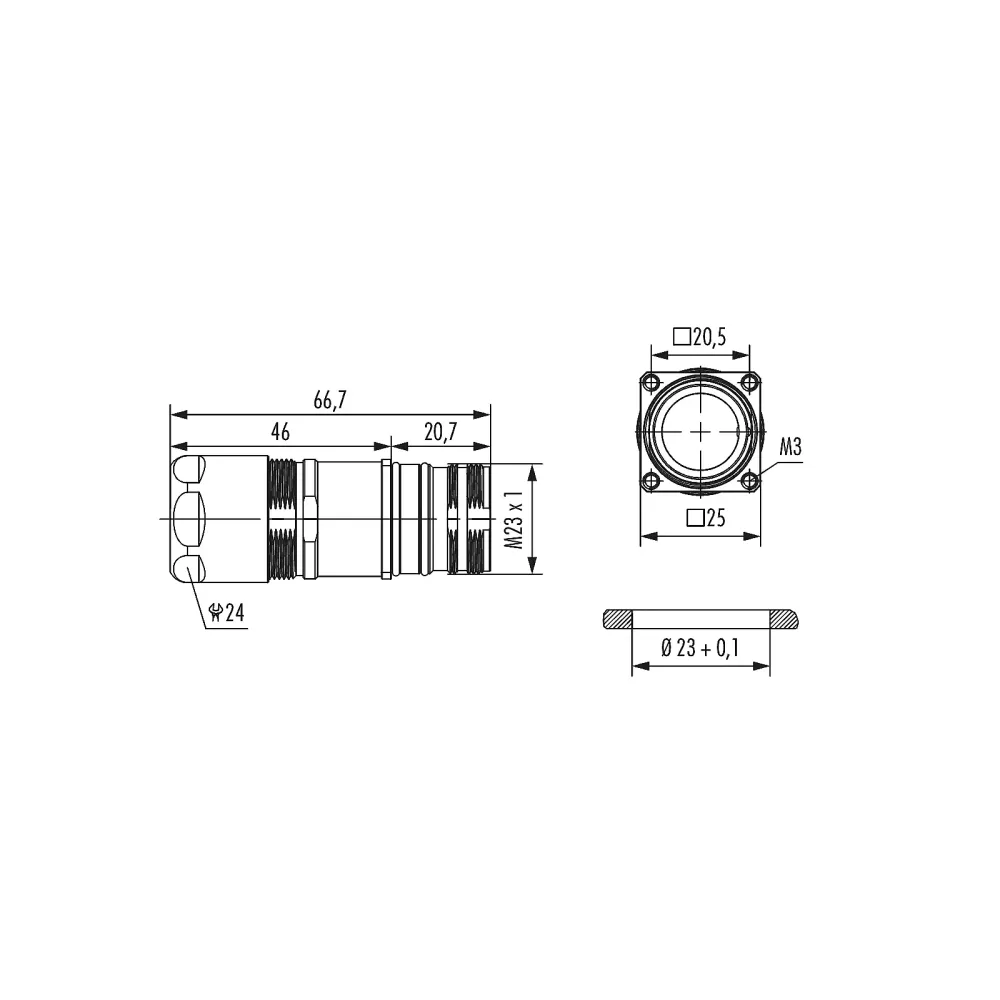

• Installation dimensions: Ø 23 + 0.1 mm
• Flange: 25 x 25 mm
• Hole spacing: 20.5 mm
• Hole diameter: 4x M3 mm
• Length (L): 66.7 mm
• Width across flats (SW): 24 mm
• Cable diameter: 3 - 7 mm / 7 - 12 mm / 11 - 17 mm
• Protection class: IP67 / 69K
• Temperature range: -40°C to +125°C

Subject to technical changes
