Housing M23 cable connector Power

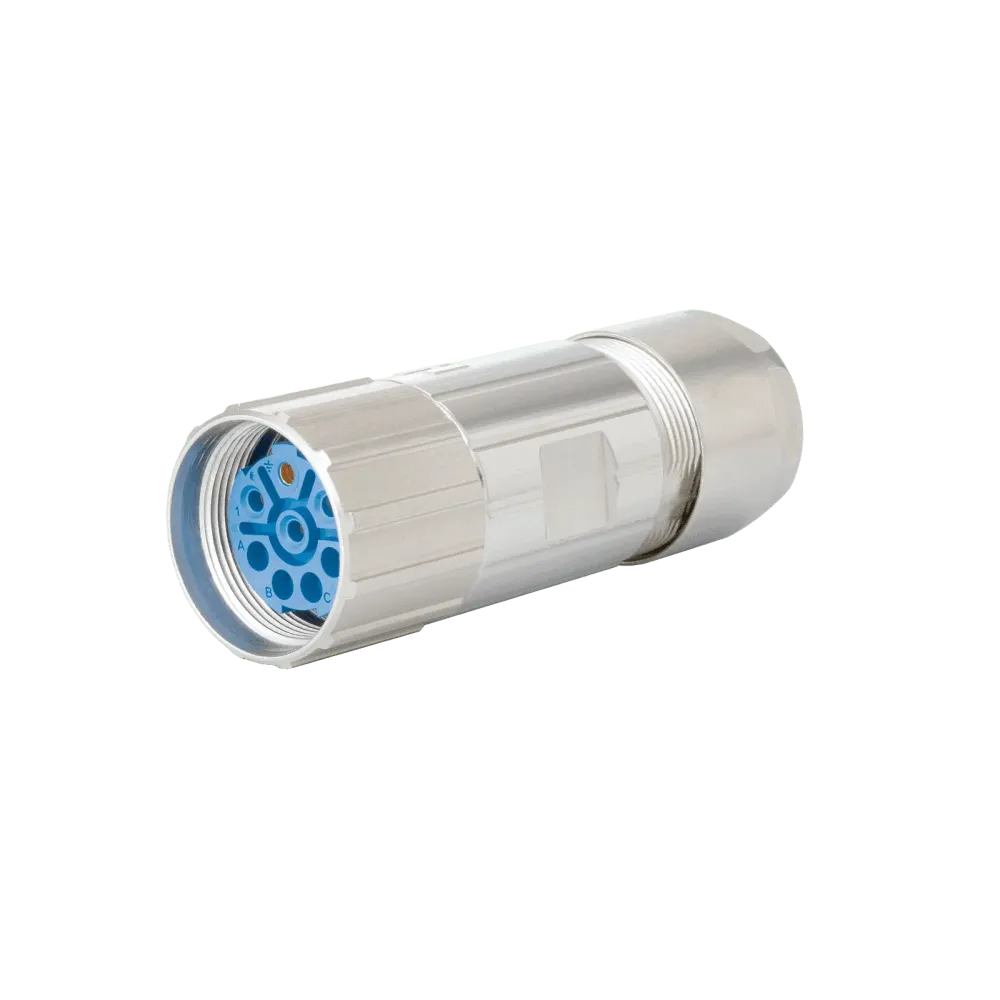

M 23 cable connector (Housing only, excl. insert and contacts)
. The classic HUMMEL M 23 power connector is able to cover a wide range of applications. With 6, 8 or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.

// High power transmission
// Screw or TWILOCK / TWILOCK-S quick-release fastener
// Numerous housing designs

A huge modular construction kit
. The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
. numerous advantages:

//  huge number of possible combinations
//  Uniform packaging
//  Simple disposition
//  Minimized warehousing
//  Assembly and disassembly without special tools

This is how the system works:
//  Choose one of the connector series according to the application and the required number of poles.
//  Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
//  Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

Technical data

• Housing design: Cable
• Housing material: brass, die-cast zinc
• Material housing surface: nickel-plated
• Version: Screw

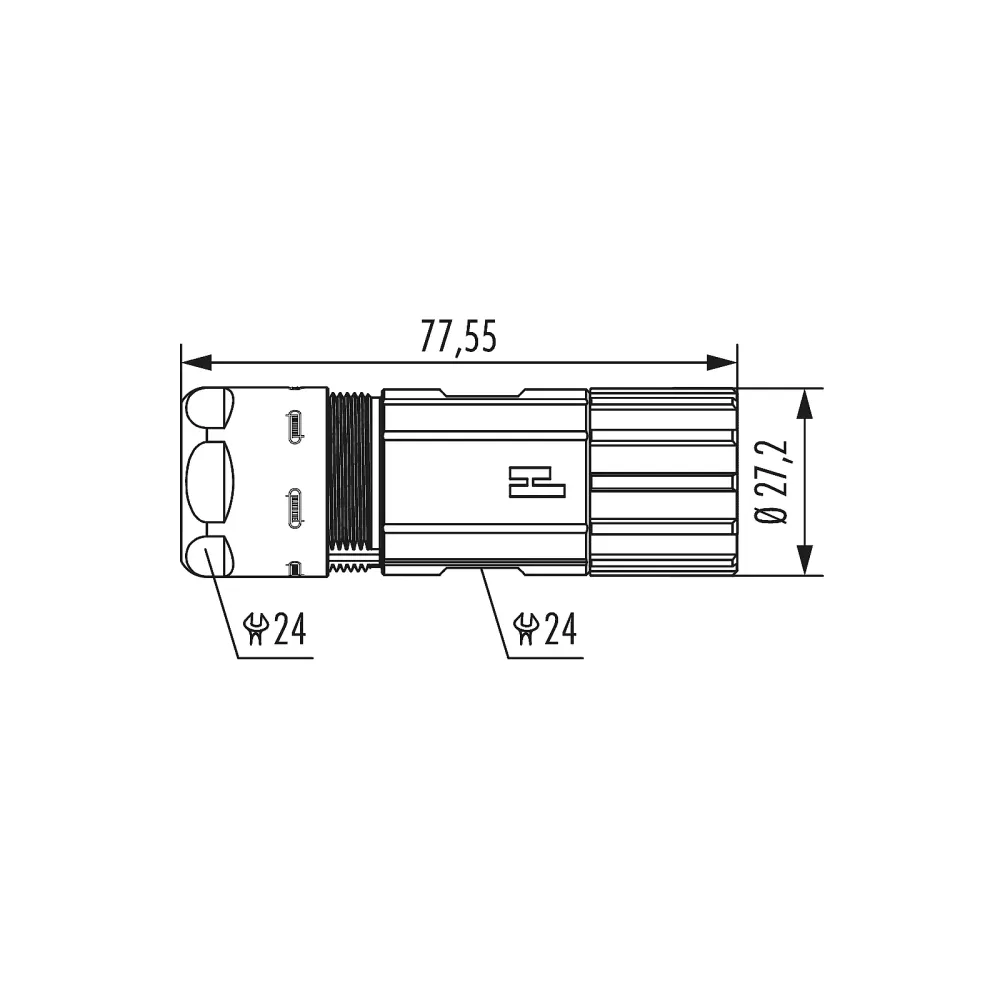

• Internal thread on plug-in side: M23 x 1
• Knurled nut Ø on plug-in side: 27.2 mm
• Locking type: Screw fastening
• Shielding: shielded
• Material seals/o-rings: NBR
• Width across flats (SW1/SW2): 24/24 mm
• Cable diameter: 7-12 mm / 11-17 mm
• Temperature range: -40°C to +125°C
• Protection class: IP67 / 69K

Subject to technical changes
