Housing M23 appliance coupler Power single-hole mounting

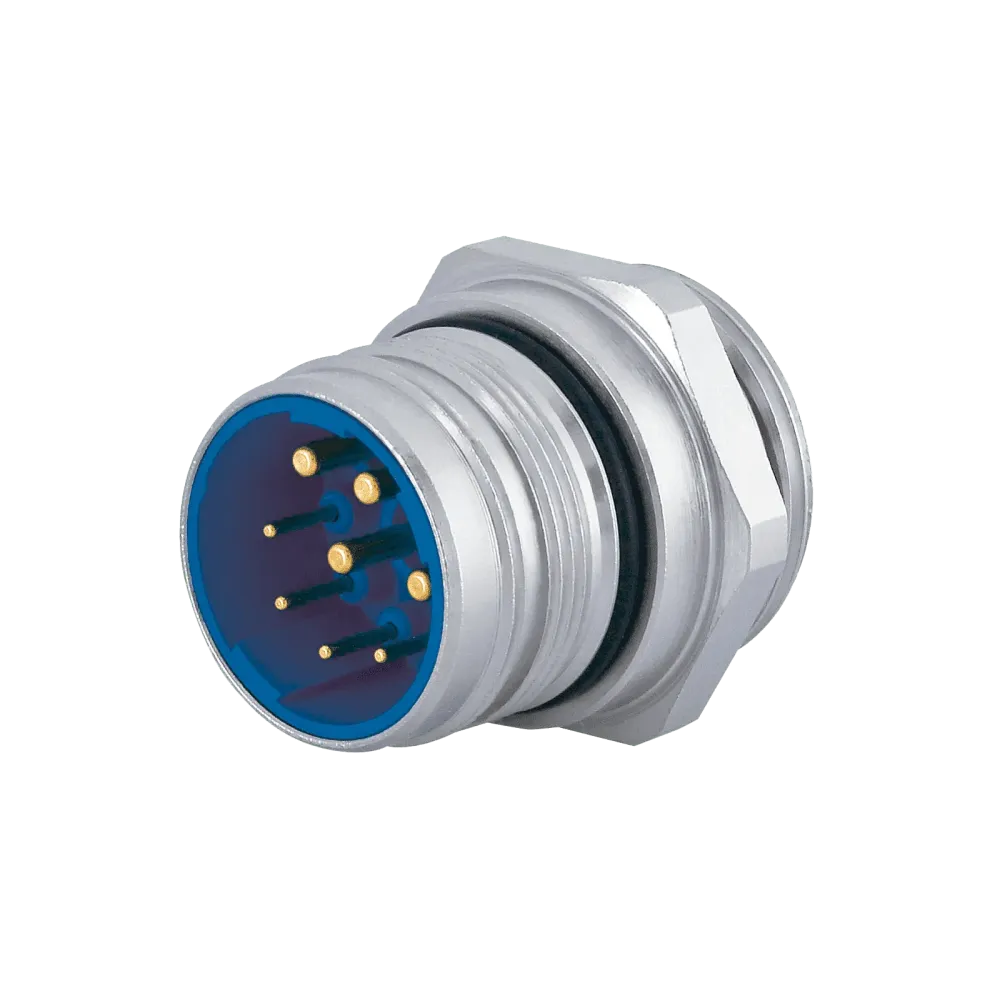

M23 appliance coupler power single-hole mounting (Housing only, excl. insert and contacts)
. The classic HUMMEL M 23 power connector is able to cover a wide range of applications. With 6, 8 or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.

//  High power transmission
//  Screw or TWILOCK / TWILOCK-S quick-release fastener
//  Numerous housing designs

A huge modular construction kit
. The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
. numerous advantages:

//  huge number of possible combinations
//  Uniform packaging
//  Simple disposition
//  Minimized warehousing
//  Assembly and disassembly without special tools

This is how the system works:
//  Choose one of the connector series according to the application and the required number of poles.
//  Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
//  Select suitable insert (pin insert or socket insert) >see accessories
//  Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

Technical data

• Housing material: brass, die-cast zinc
• Material housing surface: nickel-plated
• Mounting type: Front wall
• External thread (male): M25 x 1.5
• Male thread on plug-in side: M23 x 1
• Locking type: Screw fastening
• Shielding: unshielded
• Material seals/o-rings: NBR
• Installation dimensions: Ø 25.2 + 0.1 mm
• Drill shape: D 24.1 + 0.1, D Ø 25 + 0.1 mm
• Width across flats (SW): 28 mm
• Protection class: IP67 / 69K
• Temperature range: -40°C to +125°C

Subject to technical changes
