Housing M23 angled connector rotatable

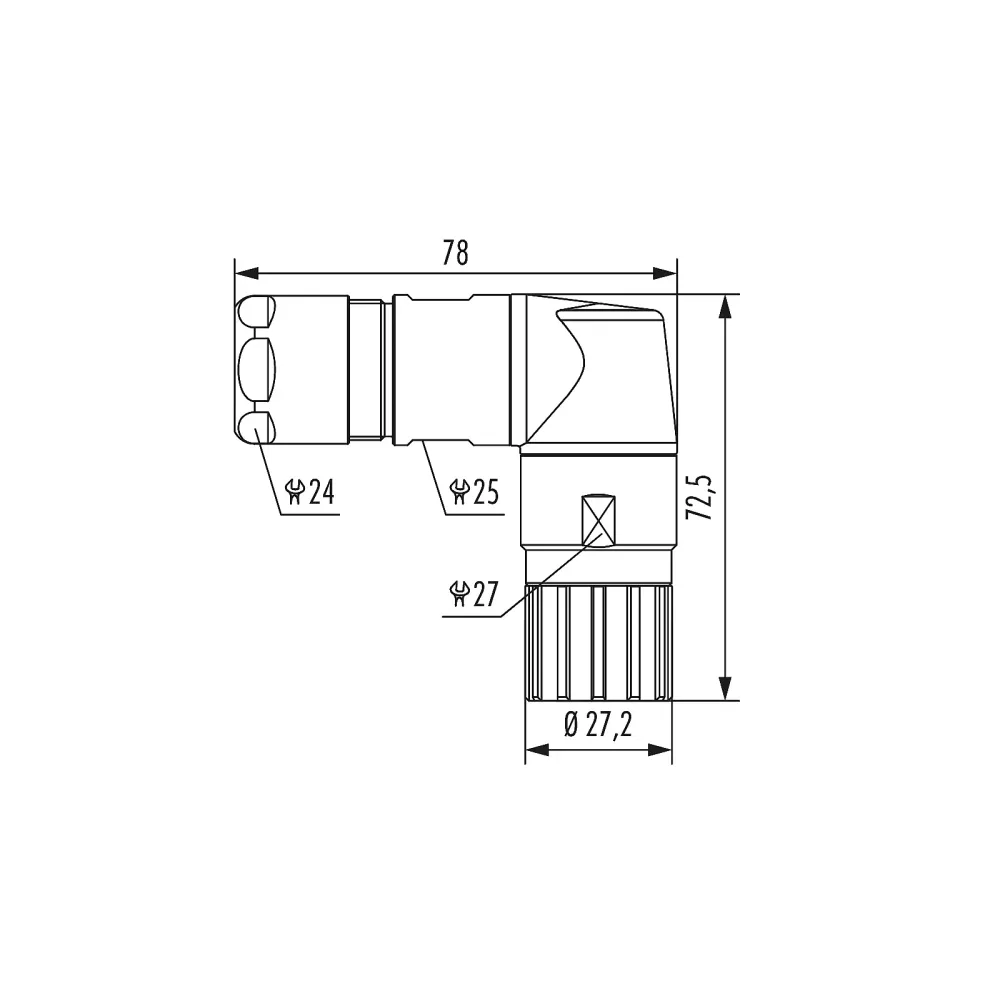

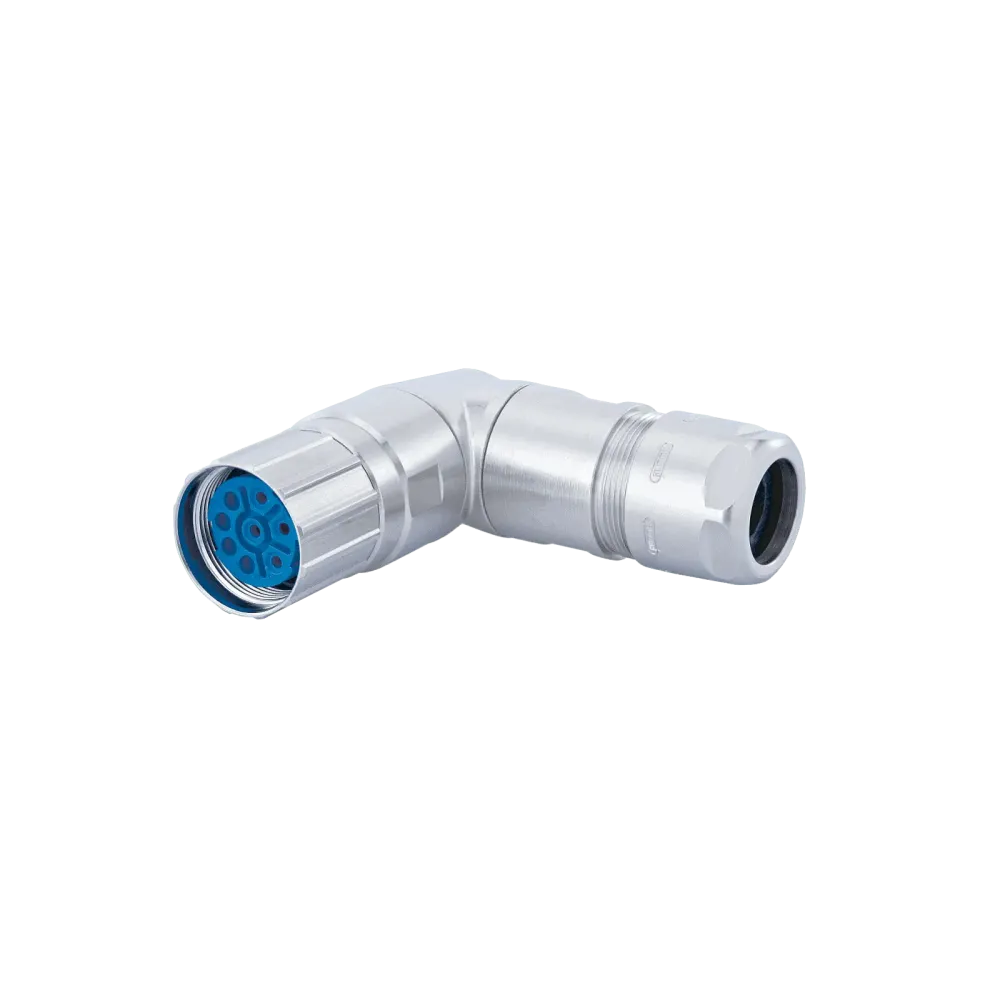

M 23 right-angle connector, rotatable (housing only, excl. insert and contacts)
. Robust, versatile and easy to install: these are the hallmarks of HUMMEL's successful M23 series. Numerous housings, inserts and contacts can be combined within the product family. This makes the system extremely versatile and suitable for almost any application.
. The mechanical and electrical data of the M23 connector series is outstanding and proves its absolute suitability for industrial use.

M 23 Power, M 23 Hybrid
. The classic M 23 power connector is able to cover a wide range of applications. With 6-, 8- or 9-pole inserts and performance data
. of up to 28 A / 600 V, this connector system is up to almost any challenge.

//  High power transmission
//  Screw or TWILOCK / TWILOCK-S quick-release fastener
//  Numerous housing designs

This is how the HUMMEL system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

Technical data

• Housing material: brass, die-cast zinc
• Material housing surface: nickel-plated
• Internal thread on plug-in side: M23 x 1
• Knurled nut Ø on plug-in side: 27.2 mm
• Locking type: Screw fastening
• Shielding: shielded
• Material seals/o-rings: NBR
• Cable diameter: 7-12 mm / 11-17 mm
• Temperature range: -40°C to +125°C
• Protection class: IP67 / 69K

Subject to technical changes
