Housing M16 cable connector TWILOCK

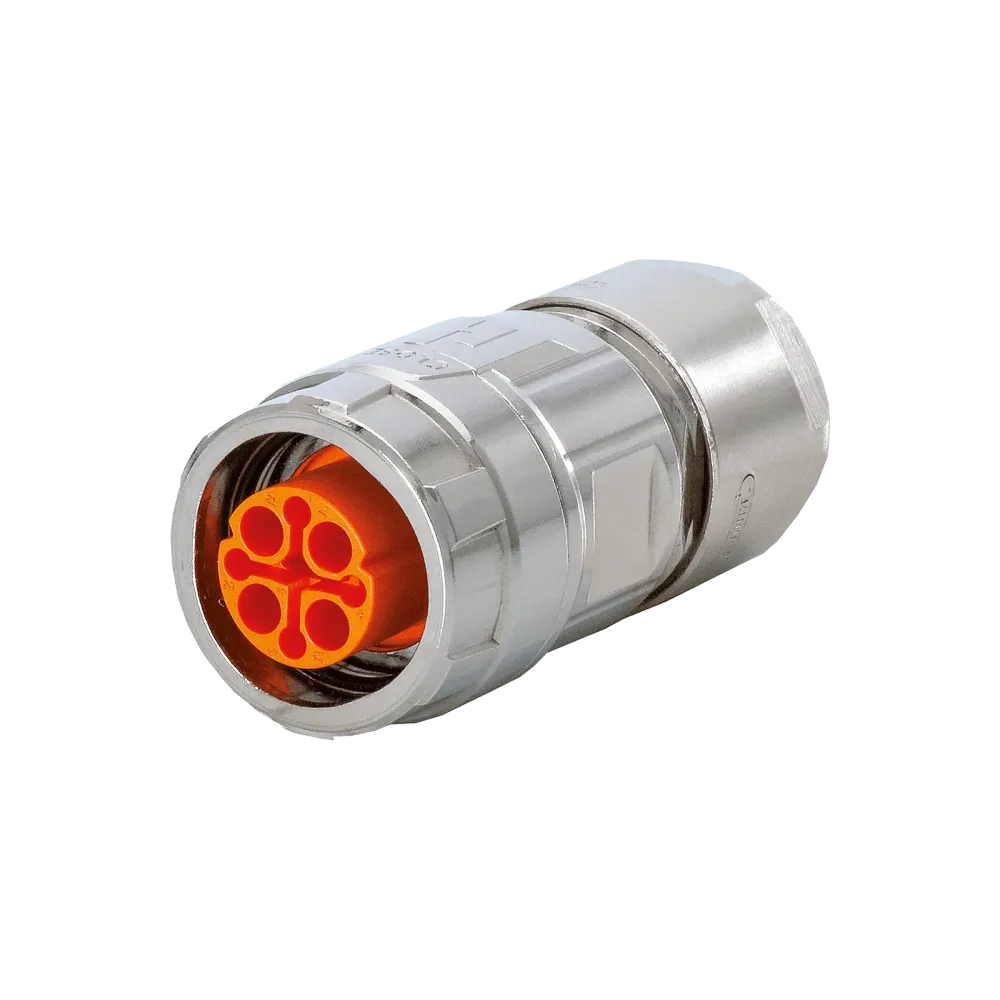

M 16 cable connector TWILOCK (Housing only, excl. insert and contacts)
. The M 16 plug-in system from HUMMEL is traditionally very popular with users. The reason for this is its high performance with minimal space requirements.

A huge modular construction kit
. The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
. numerous advantages:

// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools

This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

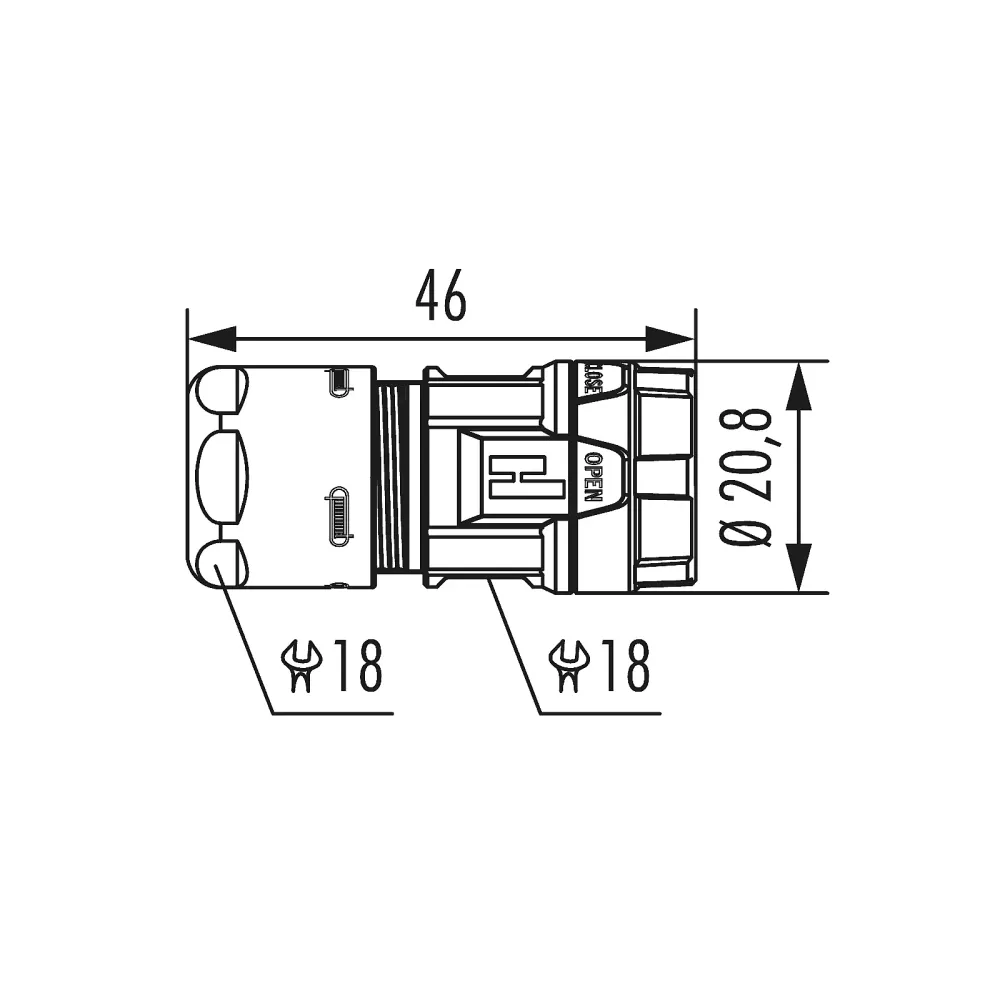

Technical data

• Housing design: Cable
• Housing material: brass, die-cast zinc
• Material housing surface: nickel-plated
• Version: TWILOCK
• Internal thread on plug-in side: M16 x 0.75
• TWILOCK/TWILOCK-S-Ø plug-in side: 20.8 mm
• Shielding: shielded
• Seal type: O-ring
• Material seals/o-rings: NBR
• Width across flats (SW1/SW2): 18/18 mm
• Cable diameter: 3-6mm / 5-9mm / 8-11mm
• Temperature range: -40°C to +125°C
• Protection class: IP67 / 69K
