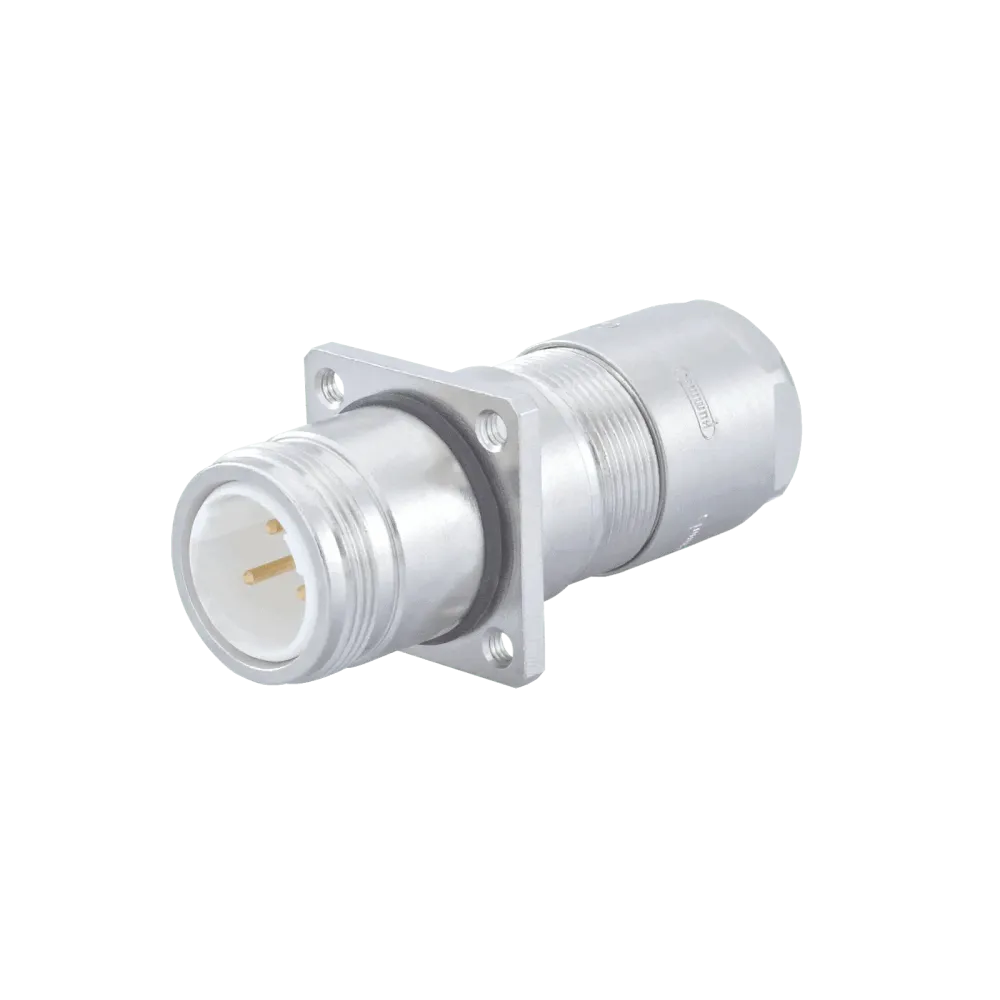

Housing M16 appliance coupler with strain relief Rear panel

M16 appliance coupler with strain relief (Housing only, excl. insert and contacts)
. The M 16 plug-in system from HUMMEL is traditionally very popular with users. The reason for this is its high performance with minimal space requirements.

A huge modular construction kit
. The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
. numerous advantages:

// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools

This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

Technical data

• Housing material: aluminum alloy, copper-zinc alloy, die-cast zinc
• Material housing surface: nickel-plated
• Male thread on plug-in side: M16 x 0.75
• Locking type: Screw fastening
• Shielding: shielded
• Material seals/o-rings: FKM (FPM), NBR

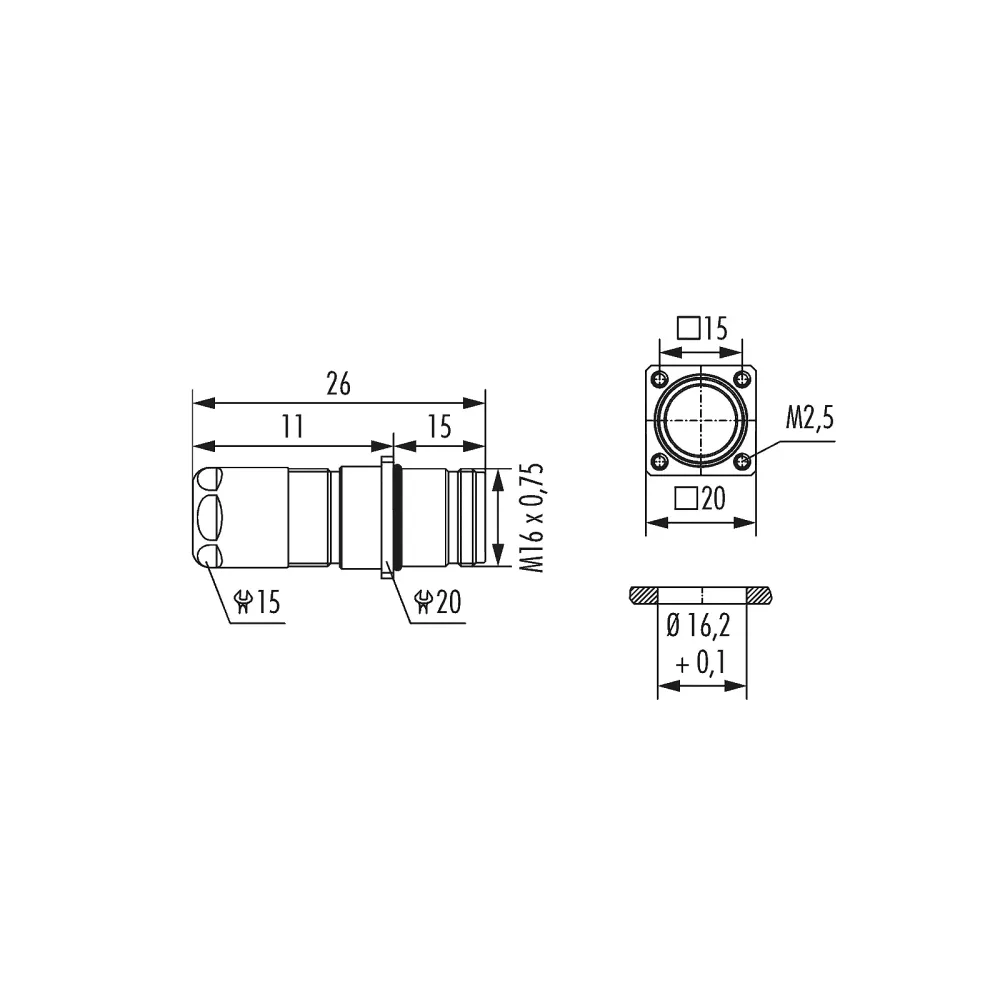

• Installation dimensions: Ø 16.2 + 0.1 mm
• Rear wall: M2.5 x 4 thread
• Width across flats (SW1/SW2): 15/20 mm
• Cable diameter: 2-7mm / 5-9mm
• Temperature range: -40°C to +125°C
• Protection class: IP67 / 69K

Subject to technical changes
