About the product
Item number: 7.010.981.601
suitable for contact inserts: M16
requires crimp sockets: 7010981602 (7.010.981.602)
. (PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)
Technical data
- Connection type: Crimping
- Use: Pen

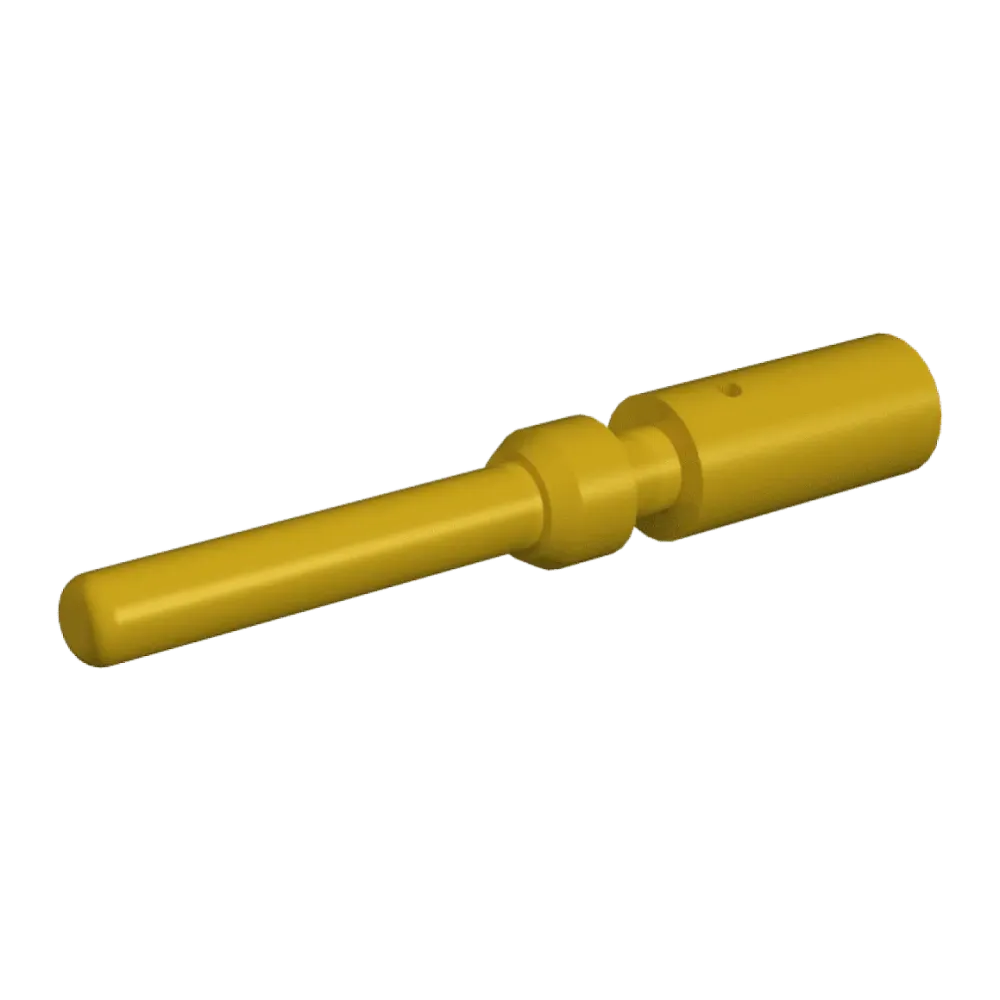

- Crimp contact: Crimp pin Signal 1.6 mm turned
- Contact material: Copper-zinc alloy
- Contact surface material: nickel-plated, gold-plated (0.25µm)

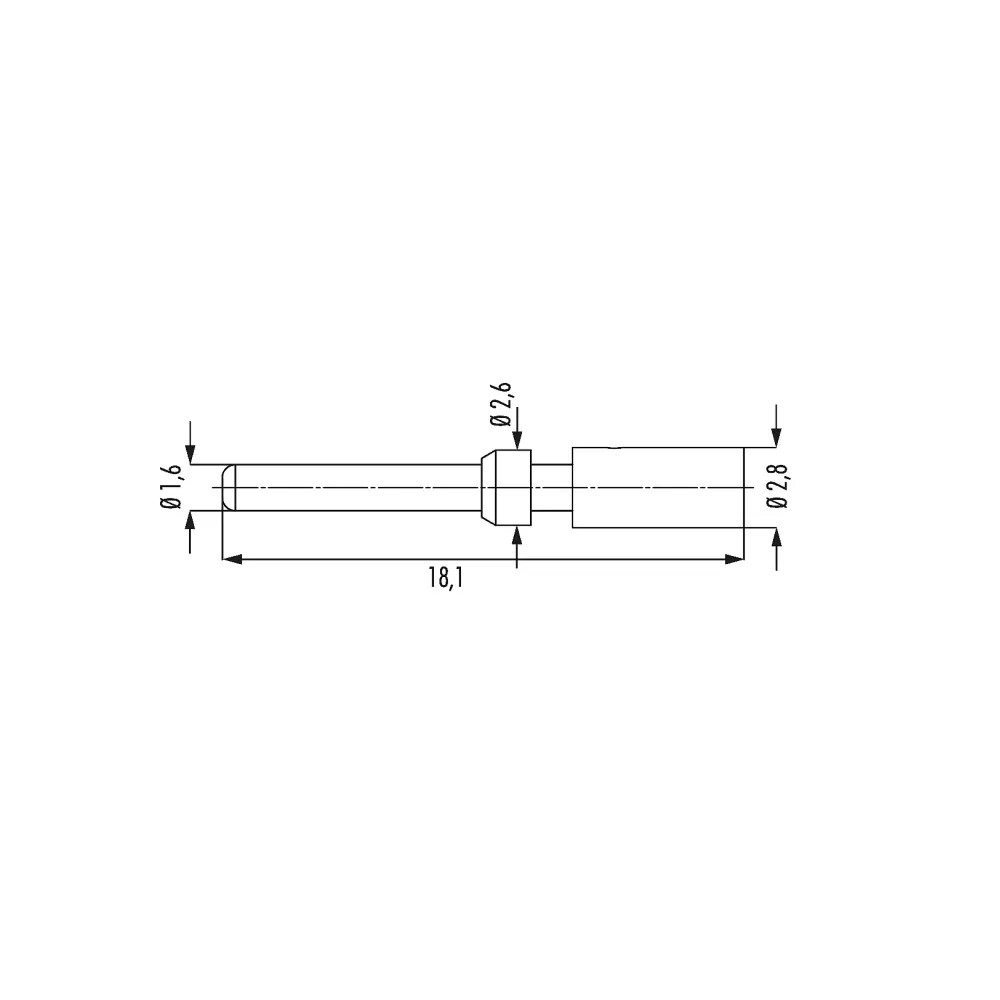

- Contact Ø signal: 1.6mm
- Length (L): 18.1 mm
- Connection range: 0.34 - 1.5 mm²
- suitable crimping pliers: 7000900904
Subject to technical changes
Product specifications
| Nominal current | 5 mA |
| Nominal voltage (V) | 300-630 V |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Product | Crimping pin |
| Connection cross-section (mm²) | 0.34 - 1.5 mm² |
| HUMMEL item number | 7.010.981.601 |
