About the product

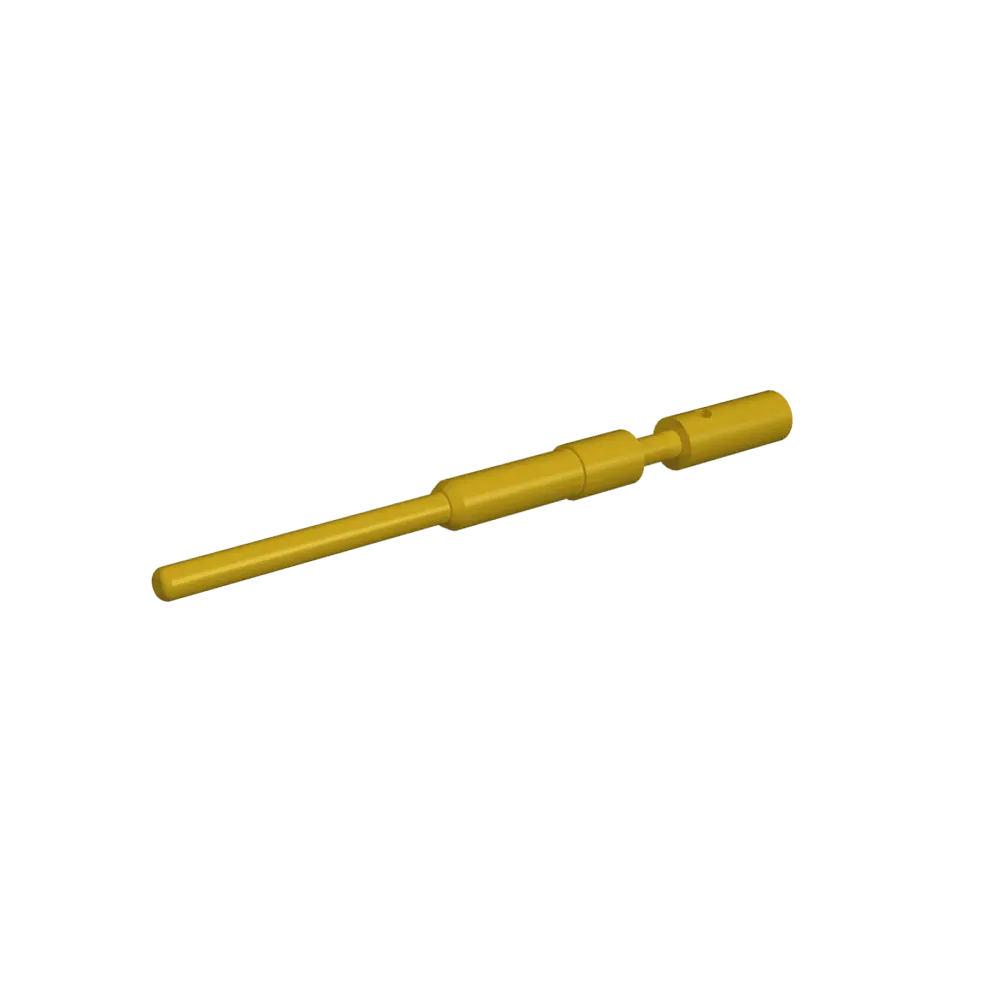

Contact M16 / M23 signal crimp pin 0.8 mm
Suitable for contact insert: 7.003.943.101
requires crimp socket: 7010980802
Suitable crimping pliers: 7000900904
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 0.8 mm turned
- Contact material: Copper-zinc alloy
- Contact surface material: nickel-plated, gold-plated (0.25µm)
- Contact Ø signal: 0.8mm

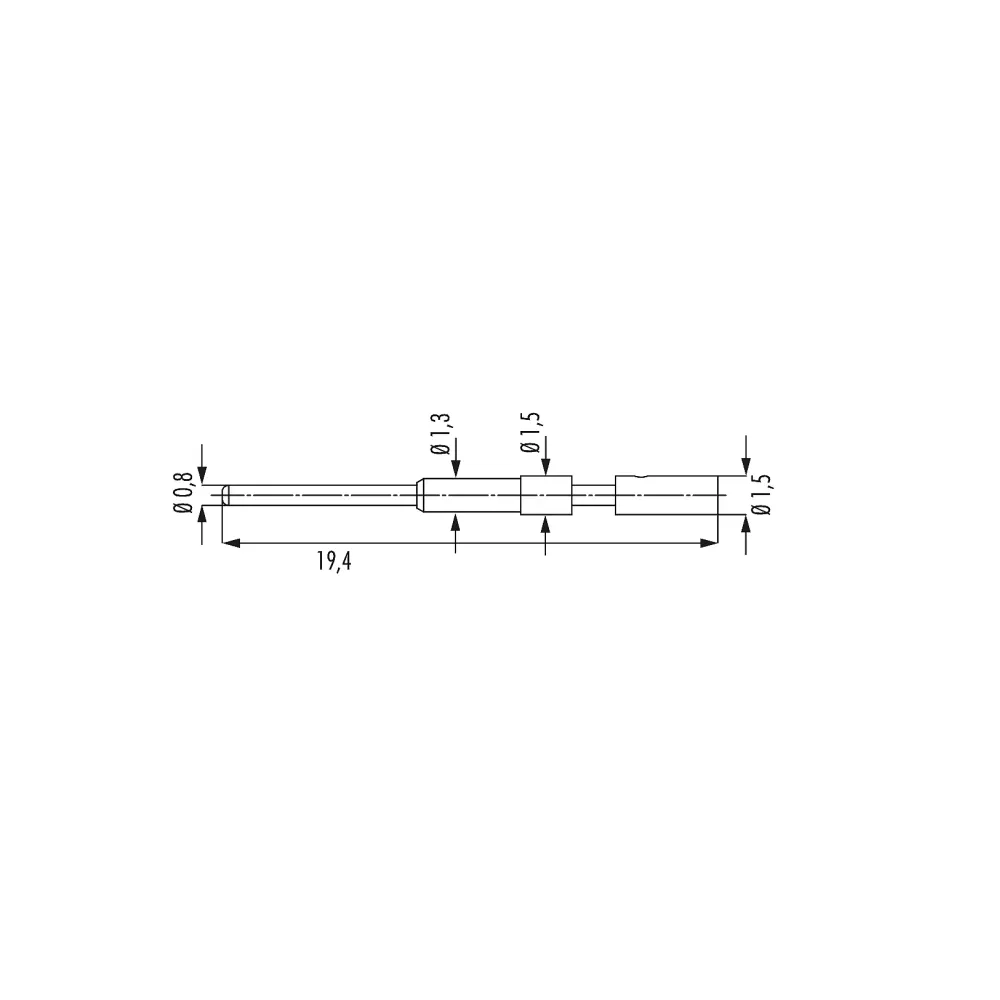

- Length (L): 19.4 mm
- Connection cross-section: 0.08 - 0.34mm2
- suitable crimping pliers: 7000900904
Subject to technical changes
Product specifications
| Certificates | IEC, UL |
| Nominal current | 5 mA |
| Nominal voltage (V) | 300-630 V |
| Temperature range | -40°C to 125°C |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Product | Crimping pin |
| Connection cross-section (mm²) | 0.08 - 0.34 mm² |
| New article number | 7.010.980.801 |
