M16 contact insert 4+3+PE, 320V pin

M16 contact insert 4+3+PE , 320V
Pin insert plug-in side 8-pin, excluding crimp contacts (available separately).
. Suitable for HUMMEL cable connectors & coupling connectors M16.

Required contacts:

• 4x 0.8mm 7010980801 (7.010.980.801)
• 4x 1.6mm 7010981601 (7.010.981.601)

Counterpart: 7003943102 (7.003.943.102)

The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized.

// Crimp insert without contacts
. // M16 contacts
// Housing M16 housing
// M16 accessories

Other, unpublished HUMMEL products and designs on request.

Technical data

• Connection type: Crimping
• Number of poles: 8

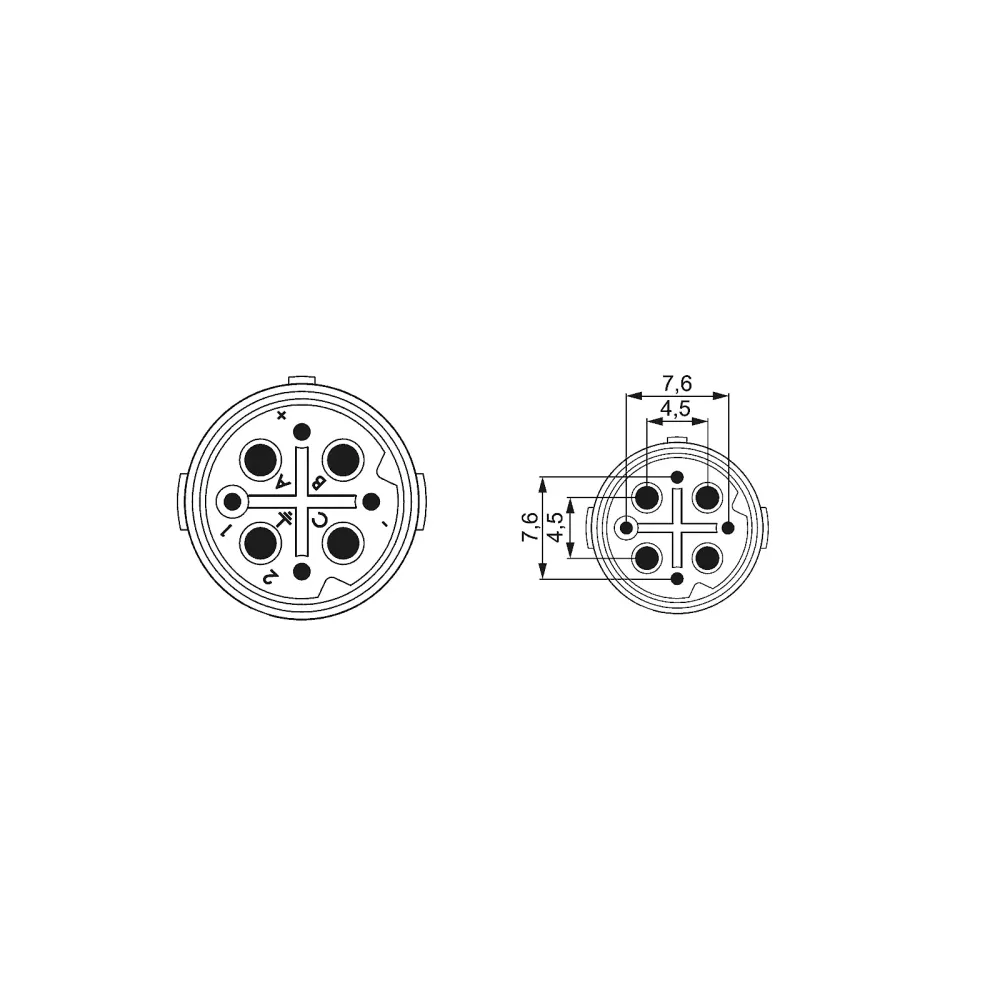

• Pole image: 4+3+PE
• Coding: PE
• Use: Pen
• Color contact insert: white
• Insulator material: PA 6, PBT
• Number of contacts Signal: 4 (7010980801 /7.010.980.801)
• Number of contacts Power: 4 (7010981601 /7.010.981.601)
• Contact Ø signal: 0.8mm
• Contact Ø power: 1.6mm
• Connection cross-section power: 0.34 - 1.5 mm²
• Rated current signal: 5A
• Rated current signal: 16A
• Rated voltages for pollution degree 3 Signal: 160V~
• Rated voltage for pollution degree 3 Power: 320 V~
• Test voltage signal: 1500 V~
• Test voltage power: 1500 V~
• Insulation resistance signal: >10⁸ Ω
• Insulation resistance Power: >10⁸ Ω
• max. contact resistance signal: 3 mOhm
• Temperature range: -40°C to +125°C
• Degree of soiling: 3
• Flammability: V-0 (UL 94)
• Required contacts:
• 4x 0.8mm 7010980801 (7.010.980.801)
• 4x 1.6mm 7010981601 (7.010.981.601)
