About the product

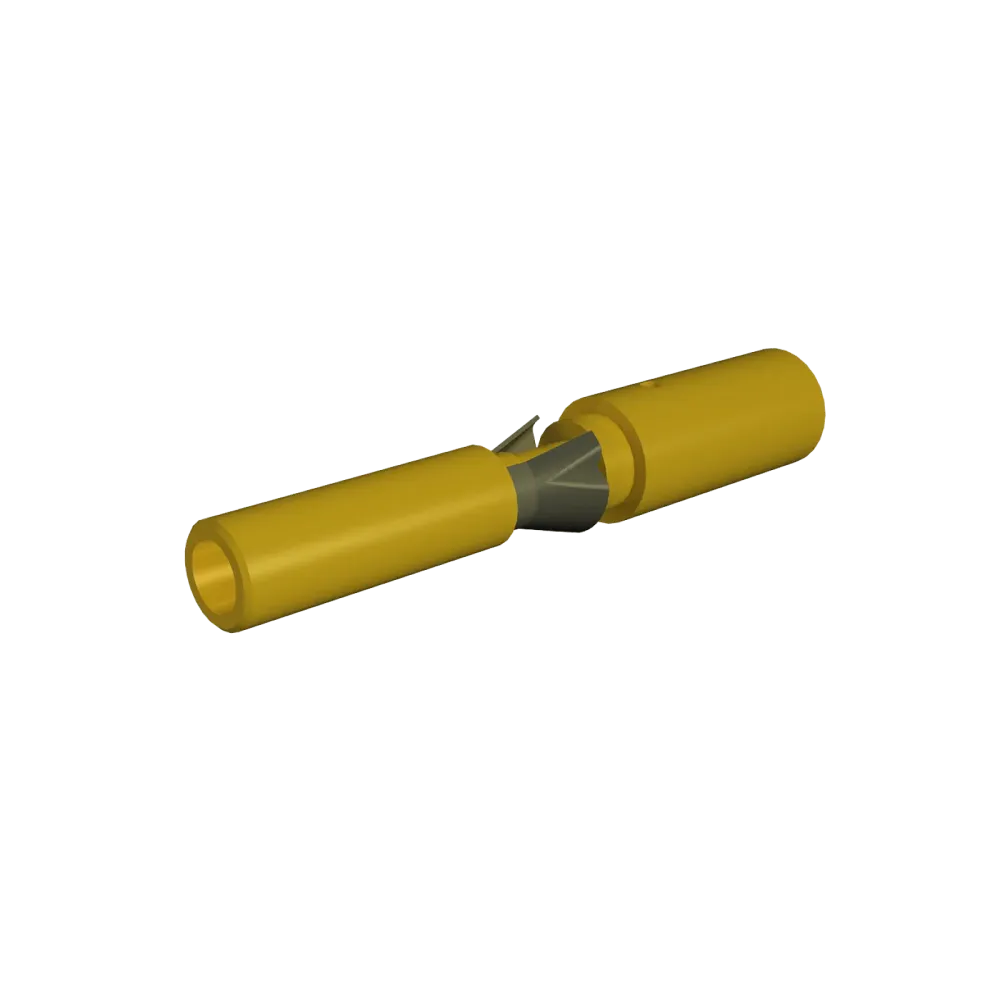

Contact: Crimp socket (f) 0.34 - 1.5 mm2 for Hummel contact inserts M16
Article number: 7.010.981.212
suitable for contact inserts: M16
requires crimp pins: 7010981211 (7.010.981.211)
. (PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)
Technical data
- Connection cross-section: 0.34 - 1.5mm2
- Contact diameter: 25mm
- Rated current: 16A
- Contact resistance: 3 mOhm
- Contact material: copper-zinc alloy
- Contact surface: nickel-plated, gold-plated 0.25µm
- Plug-in cycles: > 1000
- Temperature range: -40°C - +125°C
- Packaging unit: 100 pieces per bag
- Manufacturer: Hummel
Product specifications
| Certificates | IEC, UL |
| Nominal current | 16 A |
| Nominal voltage (V) | 300-630 V |
| Temperature range | -40°C to 125°C |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Connection cross-section (mm²) | 0.34 - 1.5 mm² |
| Product | Crimp socket |
