M16 crimping insert (m) 6+PE, for pins, without contacts, 630V

Hummel pin insert - M16 signal 7-pin 6+PE, crimp insert without contacts

Other, not published HUMMEL products and versions on request.

Technical data

• Connection type: Crimping
• Number of poles: 7

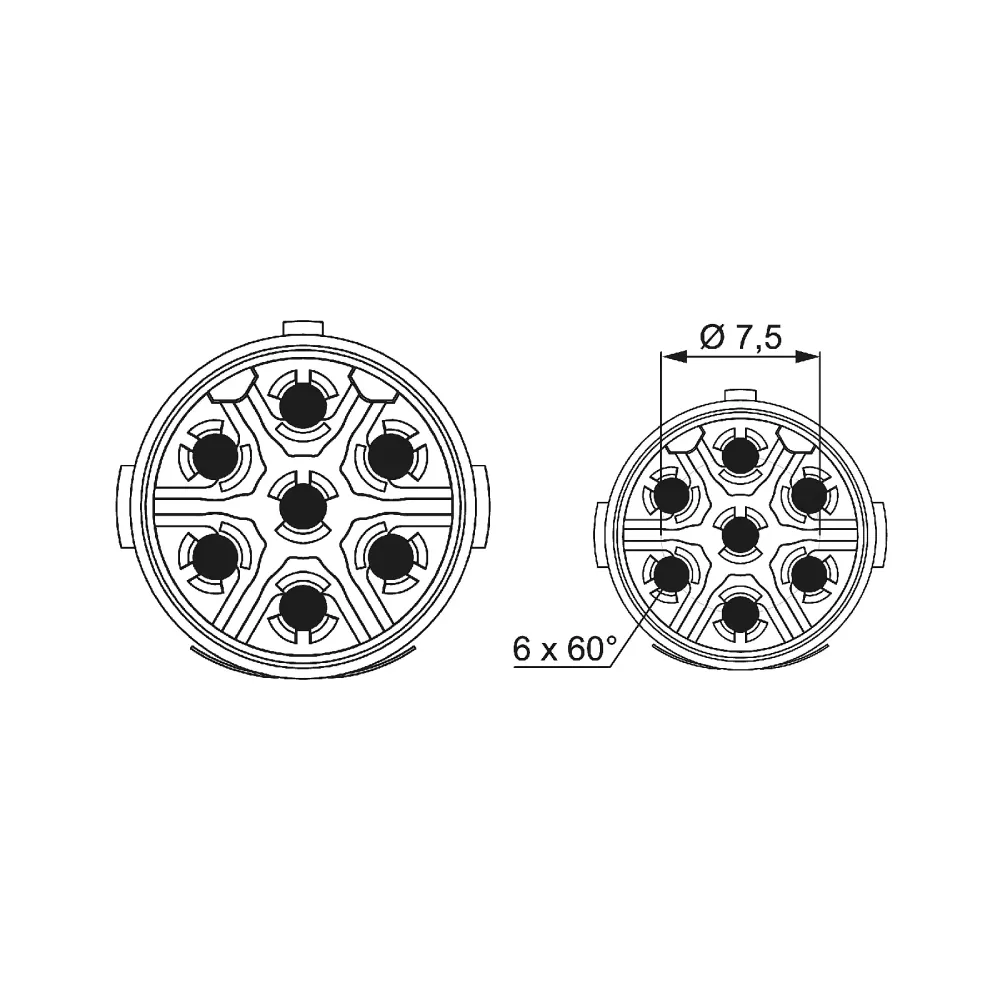

• Pole image: 6 + PE
• Coding: PE
• Use: Pen
• Color contact insert: white
• Insulator material: PA 6, PBT
• Number of contacts Signal: 7
• Number of contacts PE: 1
• Contact Ø signal: 1.25 mm
• Rated current power: 16A
• Rated voltage for pollution degree 3 Power: 500 V~
• Test voltage power: 1500 V~
• Insulation resistance Power: > 10⁸ Ω
• Max. contact resistance power: 3 mOhm
• Temperature range: -40°C..+125°C
• Degree of soiling: 3
• Flammability: V-0 (UL 94)

Subject to errors and technical changes
