About the product

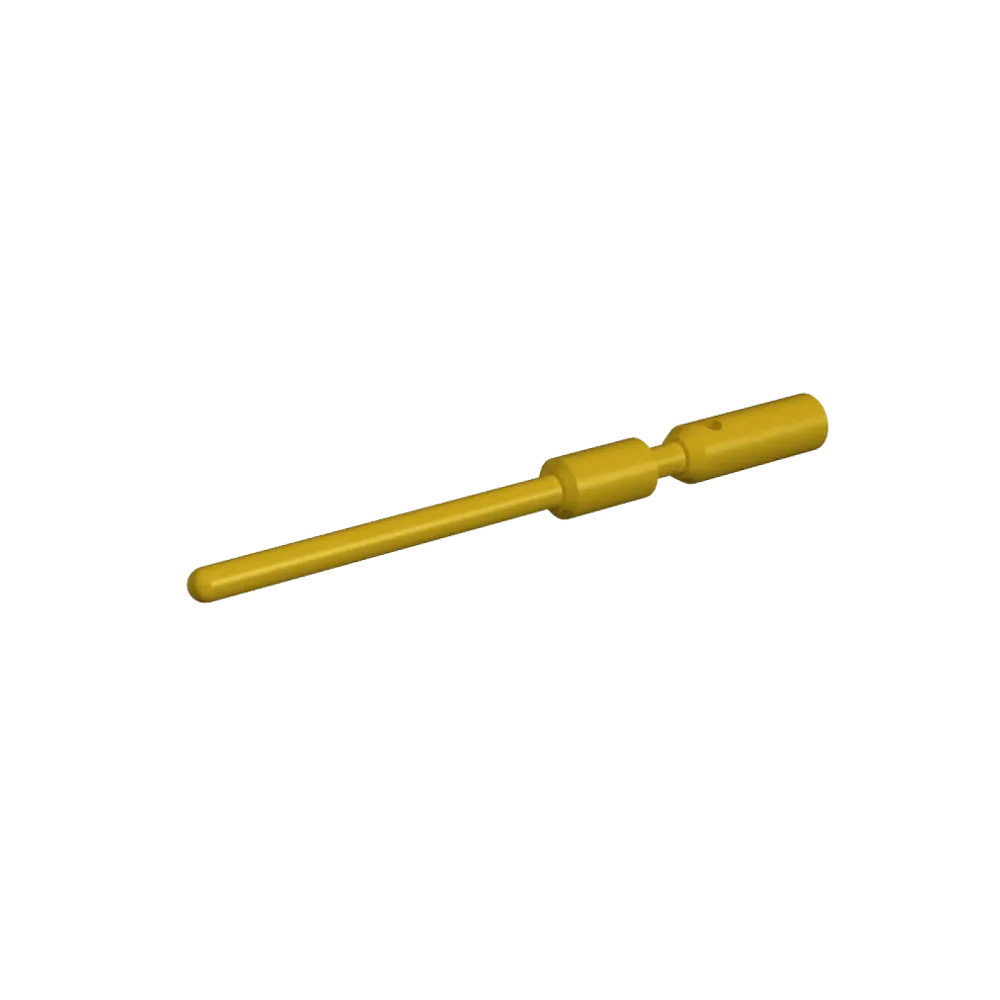

Contact: Crimp pin (m) 0.08 - 0.34 mm2 for Hummel contact inserts M16
Article number: 7010980811 (7.010.980.811)
suitable for contact inserts: M16
requires crimp sockets: 7010980814 (7.010.980.814)
. (PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)
Technical data
- Connection cross-section: 0.08 - 0.34mm2

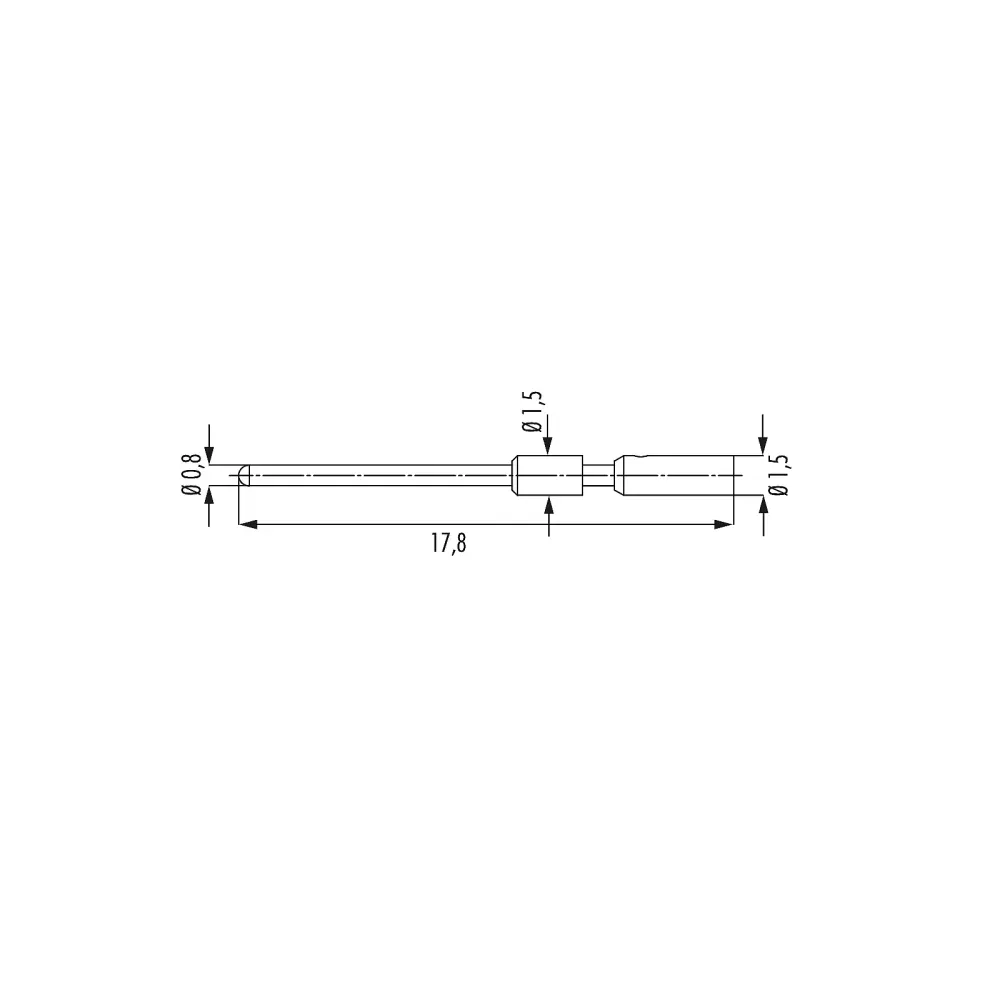

- Contact diameter: 8mm
- Rated current: 5A
- Contact resistance: 3 mOhm
- Contact material: copper-zinc alloy
- Contact surface: nickel-plated, gold-plated 0.25µm
- Plug-in cycles: > 1000
- Temperature range: -40°C - +125°C
- Packaging unit: 100 pieces per bag
- Manufacturer: Hummel
Product specifications
| Certificates | IEC, UL |
| Nominal current | 5 mA |
| Nominal voltage (V) | 300-630 V |
| Temperature range | -40°C to 125°C |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Product | Crimping pin |
| Connection cross-section (mm²) | 0.08 - 0.34 mm² |
