About the product
Hummel pin insert - M16 signal 8-pin (4+3+PE), 600V without contacts
. Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 8

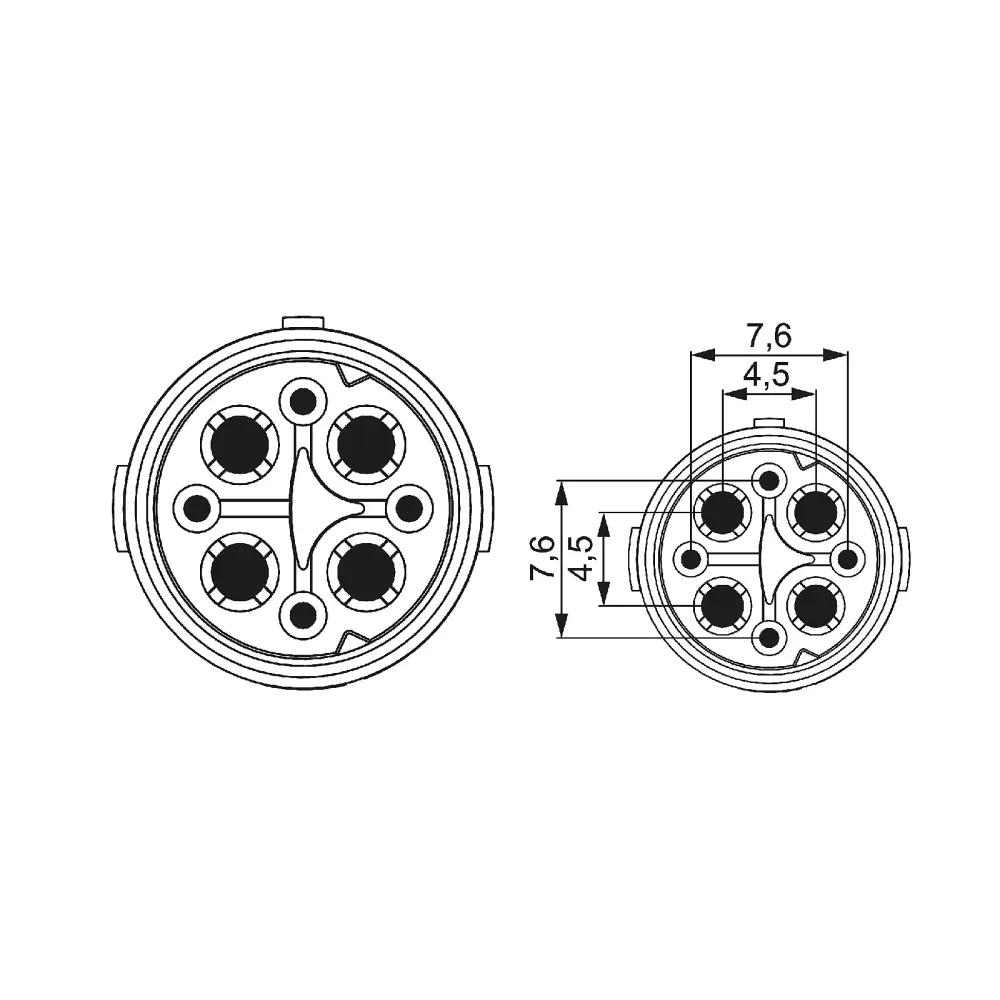

- Pole image: 4 + 3 + PE
- Coding: PE
- Use: Pen
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Signal: 4
- Number of contacts Power: 4
- Number of contacts PE: 1
- Contact Ø signal: 0.8 mm
- Contact Ø power: 1.25 mm
- Connection cross-section power: 0.34 - 1.5mm2
- Rated current signal: 5A
- Rated current power: 16A
- Rated voltage for pollution degree 3 Signal: 160 V~
- Rated voltage for pollution degree 3 Power: 600 V~
- Test voltage signal: 1500 V~
- Test voltage power: 2500 V~
- Insulation resistance signal: > 10^8 Ω
- Insulation resistance power: > 10^8 Ω
- max. contact resistance signal: 3 mOhm
- Temperature range: -40°C..+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
// Crimpeinsatz ohne Kontakte
Subject to errors and technical changes
Product specifications
| Certificates | IEC, UL |
| Degree of soiling | 3 |
| Number of poles | 8 |
| Manufacturer | Hummel |
| Connection | Crimp connection |
| Temperature range | -40°C to 125°C |
| Nominal voltage (V) | 300-630 V |
| Nominal current | 5-16 A |
| Product | Crimp insert |
| Connection cross-section (mm²) | 0.08 - 0.34, 0.34 - 1.5 mm² |
