About the product
Hummel pin insert - M16 crimp insert (m) 3-pin (3x 2mm), without contacts
. Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 3

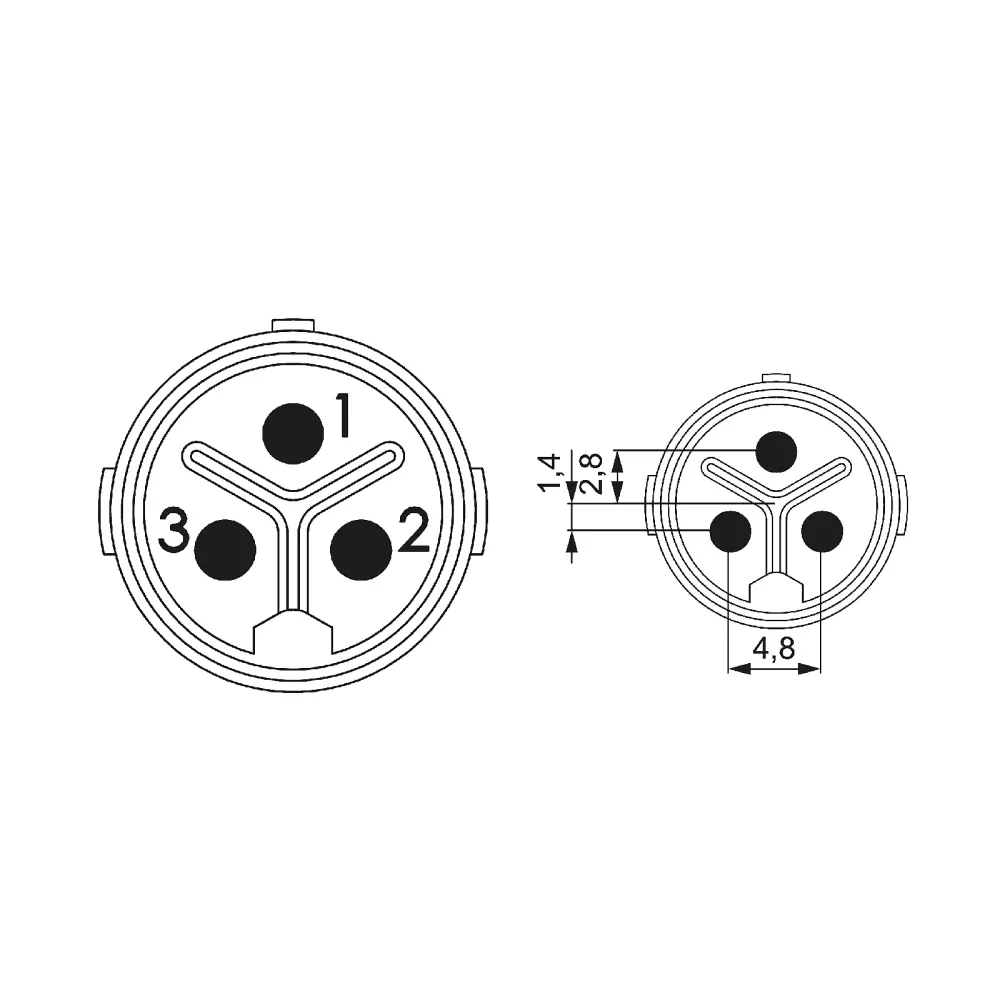

- Pole image: 3
- Use: Pen
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Power: 3
- Contact Ø power: 2 mm
- Rated current power: 20A
- Rated voltage for pollution degree 3 Power: 400 V~
- Test voltage power: 2500 V~
- Insulation resistance power: > 10^10 Ω
- Max. contact resistance power: 3 mOhm
- Temperature range: -40°C..+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
- Suitable power contacts: 7010982001
// Crimpeinsatz ohne Kontakte
. // Nennstrom abhängig vom Kontaktdurchmesser: 8 A (1 mm) / 20 A (2mm)
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 400 V |
| Nominal current | 20 A |
| Product | Crimp insert |
| Temperature range | -40°C to 125°C |
| Number of poles | 3 |
| Manufacturer | Hummel |
| Degree of soiling | 3 |
| Certificates | CSA, IEC, UL |
