About the product

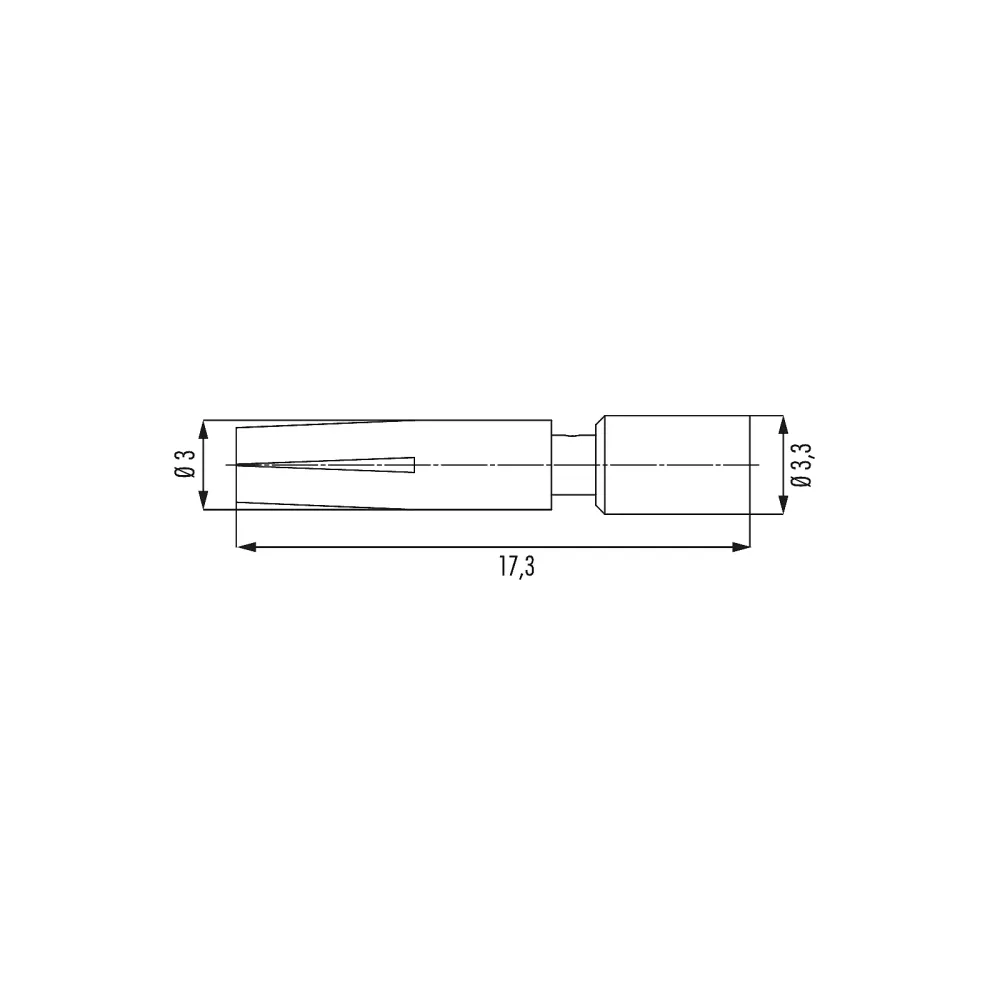

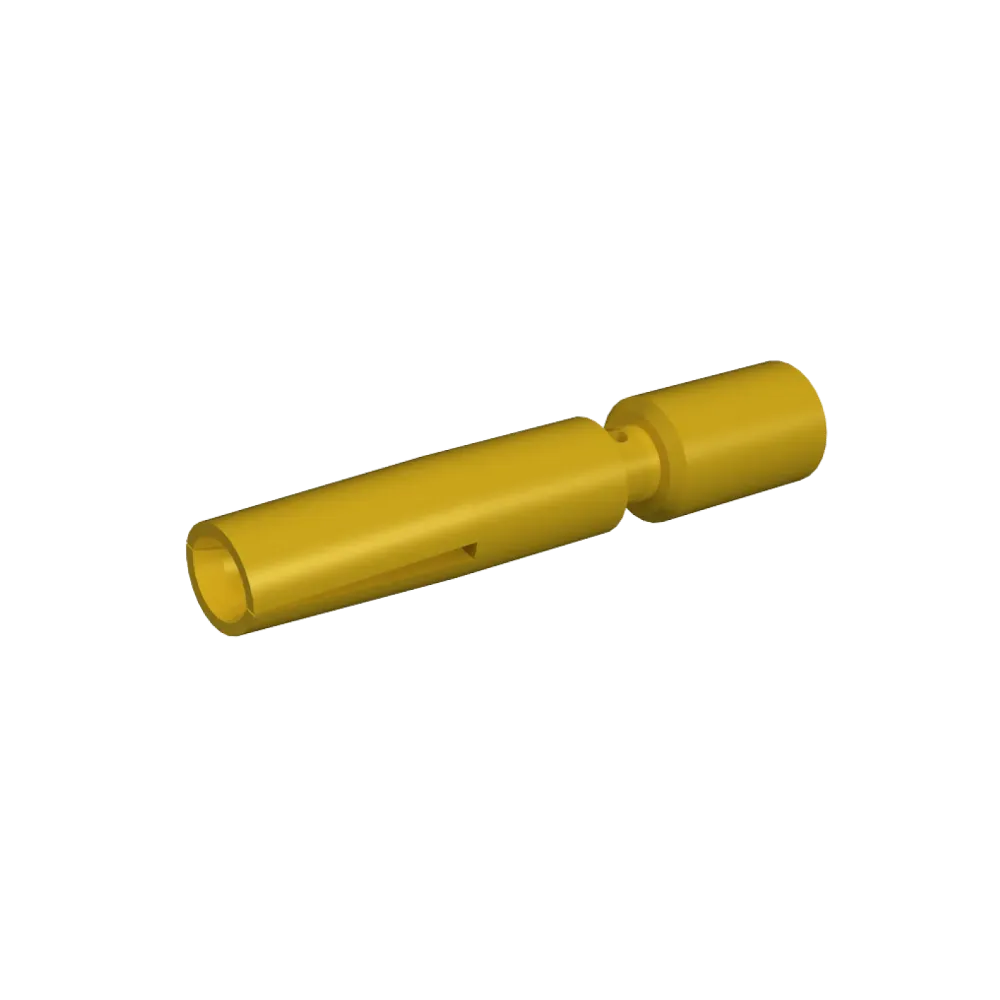

Contact: Crimp socket (f) 1.0-2.5 mm2 for Hummel contact inserts M16
Article number: 7.010.982.002
suitable for contact inserts: M16
requires crimp pins: 7010982001 (7.010.982.001)
. (PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900904 (7.000.900.904)
Technical data
- Connection cross-section: 1.0 - 2.5mm2
- Contact diameter: 0mm
- Rated current: 20A
- Contact resistance: 3 mOhm
- Contact material: copper-zinc alloy
- Contact surface: nickel-plated, gold-plated 0.25µm
- Plug-in cycles: > 1000
- Temperature range: -40°C - +125°C
- Packaging unit: 100 pieces per bag
- Manufacturer: Hummel
Product specifications
| Certificates | IEC, UL |
| Nominal voltage (V) | 400 V |
| Nominal current | 20 A |
| Temperature range | -40°C to 125°C |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Product | Crimp socket |
| Connection cross-section (mm²) | 1.0 - 2.5 mm² |
