About the product

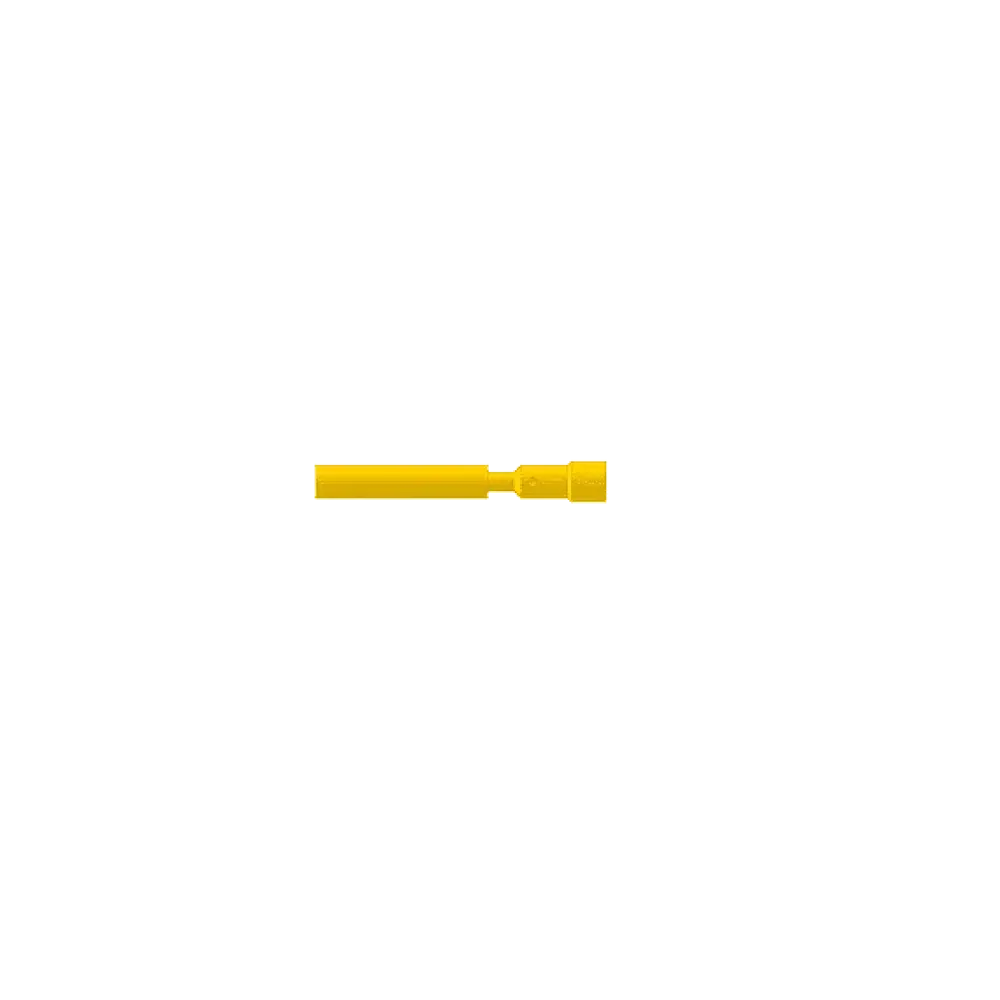

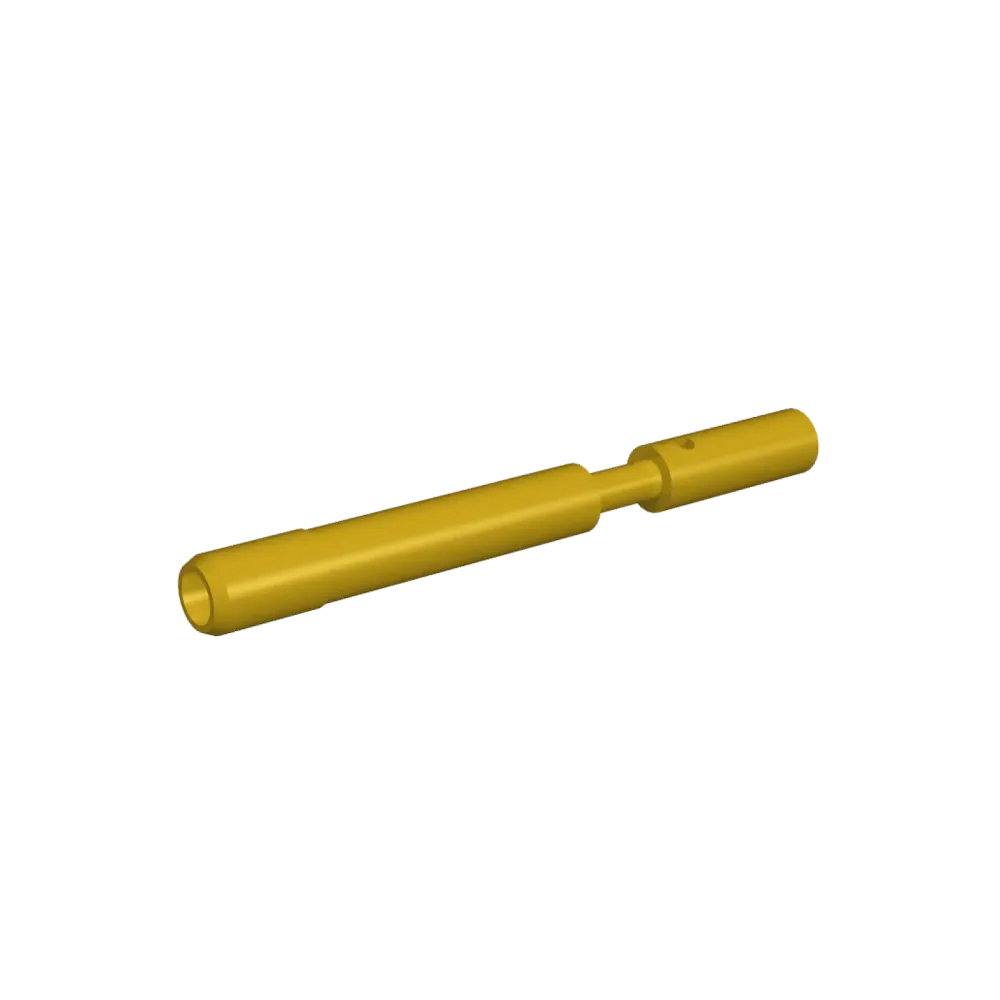

Contact M16 crimp socket 1 mm
Suitable for contact insert: 7003910102 / 7.003.910.102
requires crimping pins: 7010981001 / 7.010.981.001
Suitable crimping pliers: 7000900904 / 7.000.900.904
Technical data
- Connection type: Crimping
- Application: Socket
- Crimp contact: Crimp socket signal 1.0 mm turned
- Contact material: Copper-zinc alloy
- Contact surface material: nickel-plated, gold-plated (0.25µm)
- Contact Ø signal: 1.0 mm

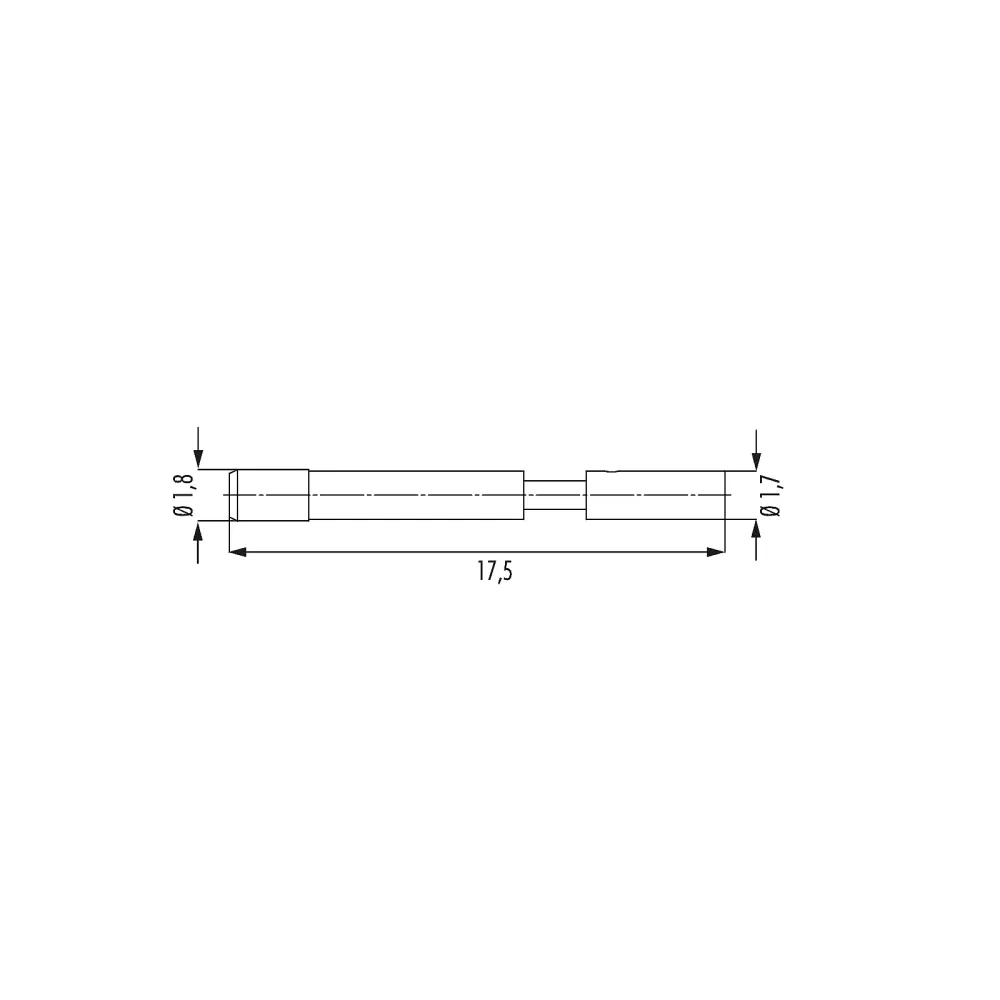

- Length (L): 17.5 mm
- Connection range: 0.08 - 0.75 mm²
- suitable crimping pliers: 7000900904 / 7.000.900.904
Subject to technical changes
Product specifications
| Certificates | IEC, UL |
| Nominal current | 8 mA |
| Nominal voltage (V) | 160 V |
| Temperature range | -40°C to 125°C |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Connection cross-section (mm²) | 0.08 - 0.75 mm² |
| Product | Crimp socket |
