M16 contact insert 10-pin

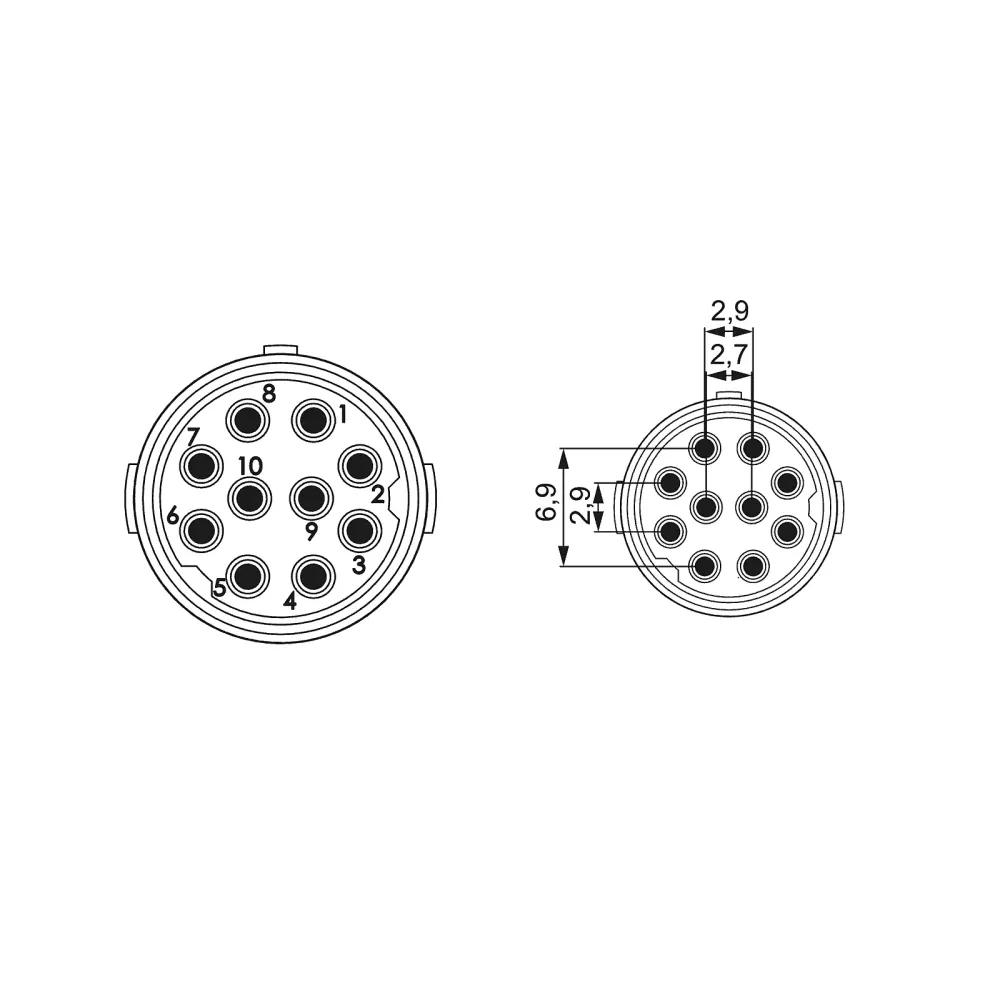

Pin insert mating side excluding crimp contacts (available separately). Suitable for HUMMEL cable connectors & coupling connectors M16.
Required contacts: 10x 1.0mm (7010981001 / 7.010.981.001)
Counterpart: 7003910102 (7.003.910.102)
The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized.
// Crimp insert without contacts
. // M16 contacts
// Housing M16 housing
// M16 accessories
Other, unpublished HUMMEL products and designs on request.
Technical data
- Connection type: Crimping
- Number of poles: 10
- Pole image: 10
- Use: Pen
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Signal: 10
- Contact Ø signal: 1 mm
- Rated current signal: 8A
- Rated voltages for pollution degree 3 Signal: 40V~
- Test voltage signal: 500 V~
- Insulation resistance signal: >108 Ω
- max. contact resistance signal: 3 mOhm
- Temperature range: -40°C to +125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
- Required contacts: 10x 7010981001 (7.010.981.001)
Subject to technical changes
Product specifications
| Certificates | IEC, UL |
| Connection cross-section (mm²) | 0.08 - 0.75 mm² |
| Degree of soiling | 3 |
| Manufacturer | Hummel |
| Connection | Crimp connection |
| Temperature range | -40°C to 125°C |
| Product | Crimp insert |
| Nominal voltage (V) | 160 V |
| Nominal current | 8 mA |
| Number of poles | 10 |
