About the product
Contact M16 crimp pin 1 mm 0.08 - 0.75mm2 (PU 100 pieces)
Suitable for contact insert: 7003910101
requires crimp socket: 7010981002
Suitable crimping pliers: 7000900904
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 1 mm turned
- Contact material: Copper-zinc alloy
- Contact surface material: nickel-plated, gold-plated (0.25µm)

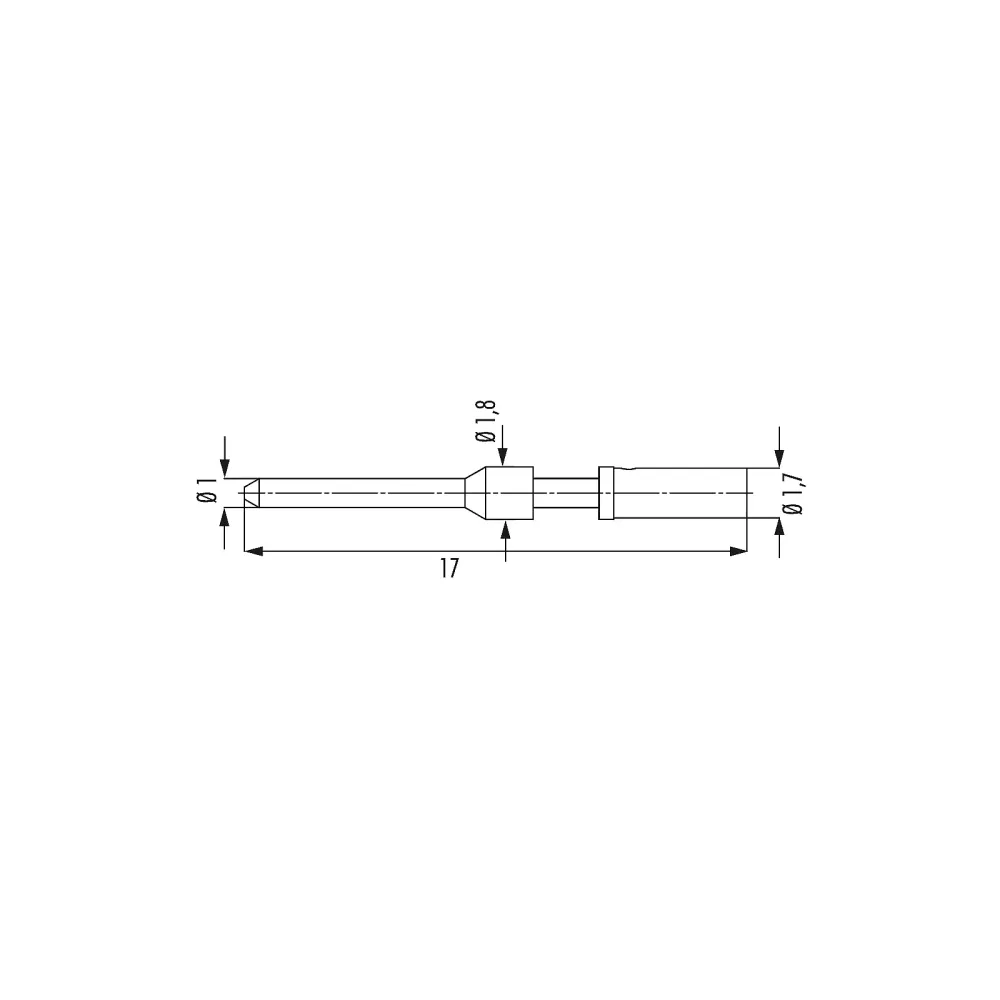

- Contact Ø signal: 1 mm
- Length (L): 17 mm
- Connection range: 0.08 - 0.75 mm²
- suitable crimping pliers: 7000900904
Subject to technical changes
Product specifications
| Certificates | IEC, UL |
| Nominal current | 8 mA |
| Nominal voltage (V) | 160 V |
| Temperature range | -40°C to 125°C |
| Connection | Crimp connection |
| Manufacturer | Hummel |
| Product | Crimping pin |
| Connection cross-section (mm²) | 0.08 - 0.75 mm² |
