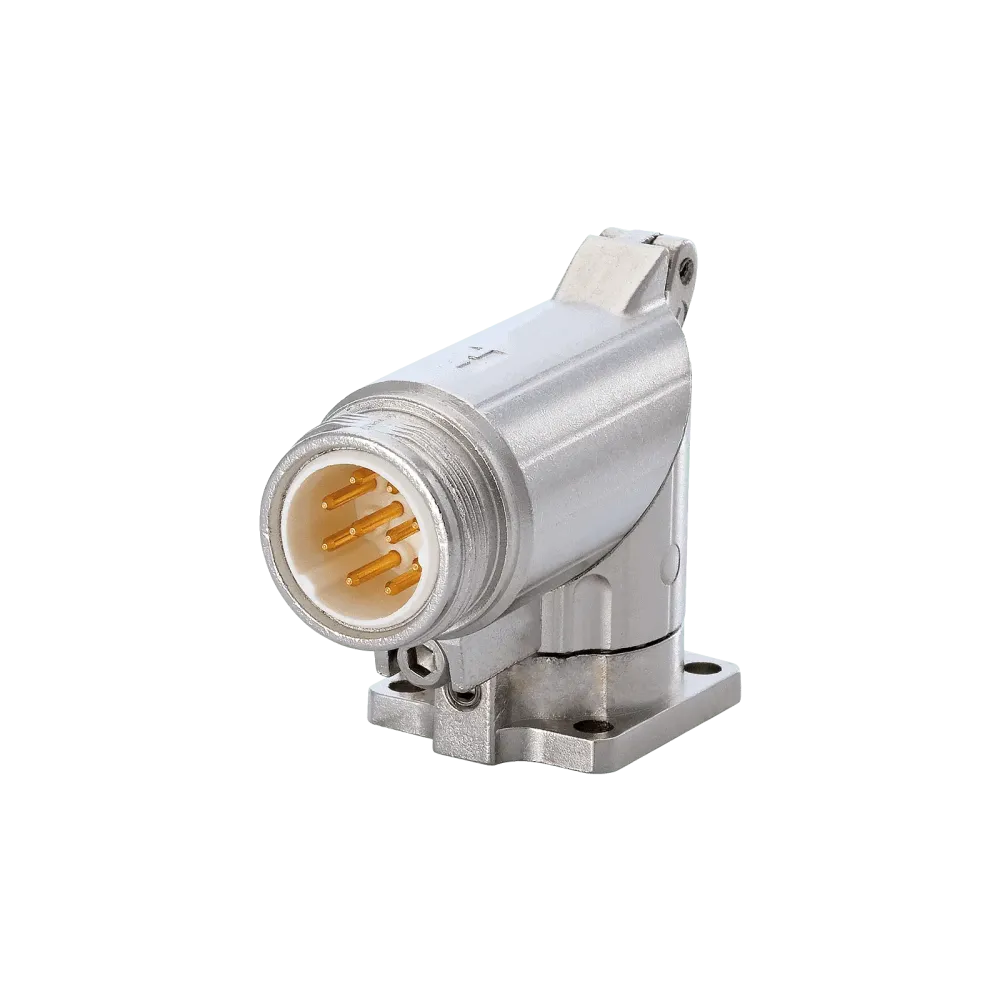

Housing M16 device connector angled

M16 appliance coupler angled, rotatable 300° (Housing only, excl. insert and contacts)
. The M 16 plug-in system from HUMMEL is traditionally very popular with users. The reason for this is its high performance with minimal space requirements.

A huge modular construction kit
. The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
. numerous advantages:

//  huge number of possible combinations
//  Uniform packaging
//  Simple disposition
//  Minimized warehousing
//  Assembly and disassembly without special tools

This is how the system works:
//  Choose one of the connector series according to the application and the required number of poles.
//  Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
//  Select suitable insert (pin insert or socket insert) >see accessories
//  Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

Technical data

• Housing design: Devices angled
• Housing material: aluminum alloy, copper-zinc alloy, die-cast zinc
• Material housing surface: nickel-plated
• Version:angled
• Male thread on plug-in side: M16 x 0.75
• Locking type: Screw fastening
• Shielding: unshielded
• Material seals/o-rings: FKM (FPM), NBR
• Rotatable: 300°

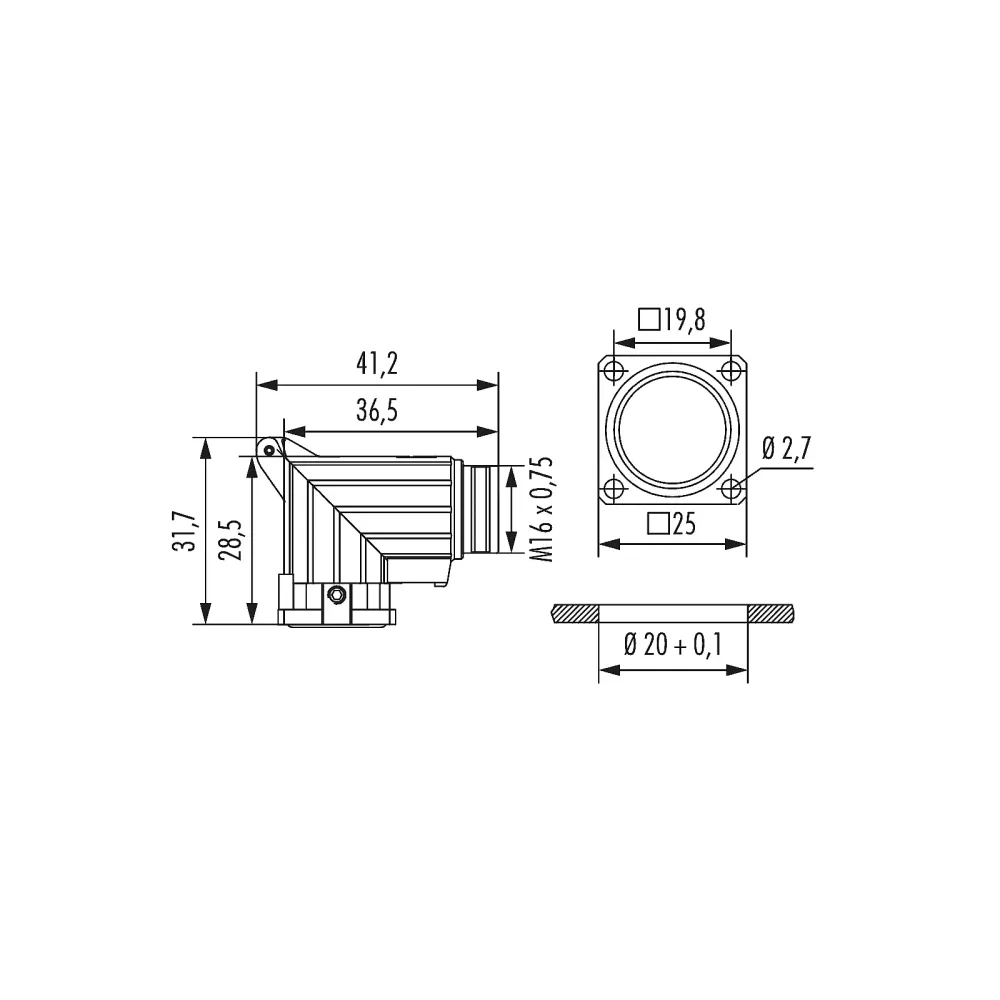

• Flange: 20 x 20 mm / 25 x 25 mm
• Hole spacing: 15 mm / 19.8 mm
• Hole diameter: 4 x Ø 2.7 mm
• Allen key / Torx: S1.5, S2
• Length (L): 23.5 mm
• Width across flats (SW1/SW2): 1.5/2 mm
• Temperature range: -40°C to +125°C
• Protection class: IP67 / 69K

Subject to technical changes
