Item ID: 53267
Mini cable connector, 4p, screw connection, 0.5-4.0mm2, D7.0-12.0mm, IP68
About the product

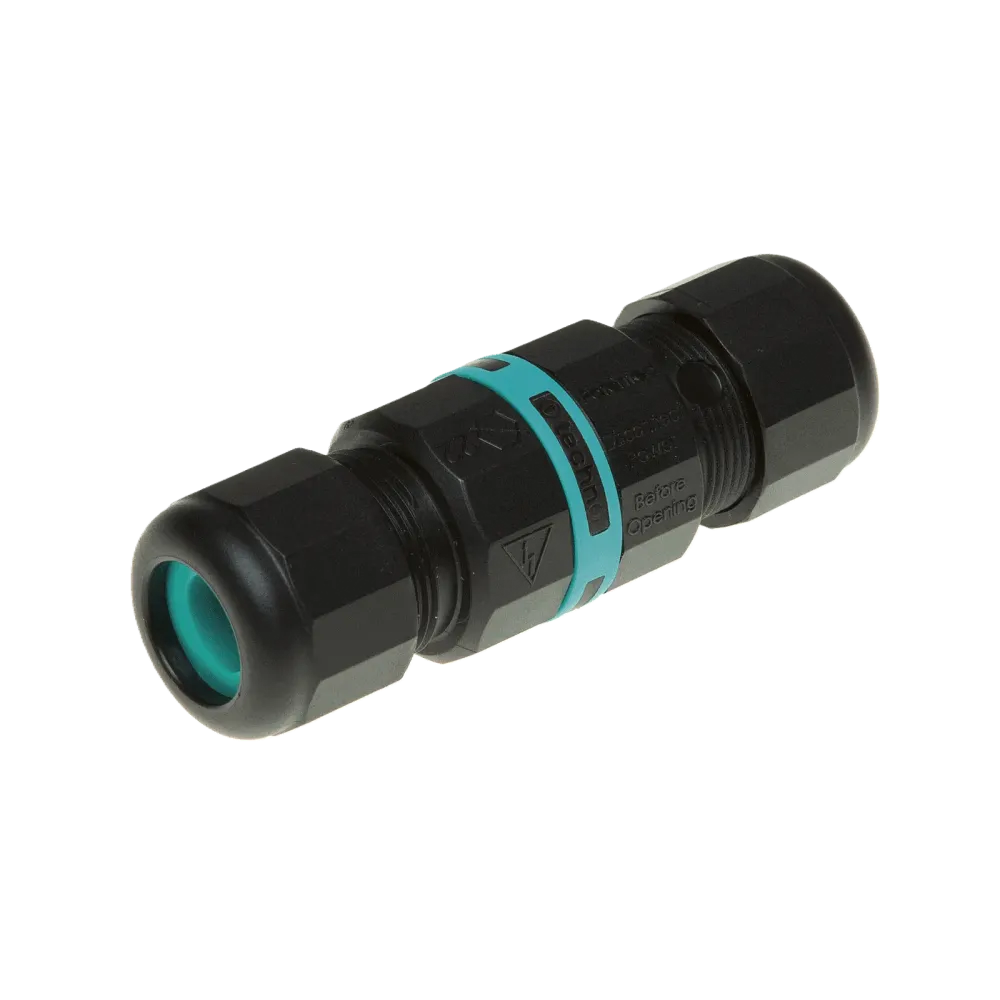

4-pin mini cable connector TH391 with screw lock from Techno, Italy
. The TH391 from Techno's TEETUBE series is a professional inline cable connector for a wide variety of power cables and can be used universally. Whether in industrial applications for connecting electric motors or pumps, for cabling data and fiber optic connections or for LED applications - wherever electricity flows and the installation needs to be reliably protected from water and dirt.
Version: Cable connector
. Connection: Screw
. Locking: Screw
Other Techno products and designs on request.
Technical data
Number of poles: 4
Protection class: IP68
Cable diameter: Ø 7.0 - 12.0 mm
Dimensions: Ø 23.0 x 66.0 mm
Cable cross-section: 0.5 - 4.0 mm2
Rated voltage: 450V AC
Rated current: 32 A
Temperature: T 85°C
Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| IP protection | IP68 |
| Product | Cable connector |
| Temperature range | -40°C to 125°C |
| Cable diameter | 7-12 mm |
| Number of poles | 4 |
| Nominal current | 32 A |
| Certificates | IEC |
| Nominal voltage (V) | 450 V |
| Manufacturer | Techno |
| Connection cross-section (mm²) | 0.5 - 4.0 mm² |
