About the product

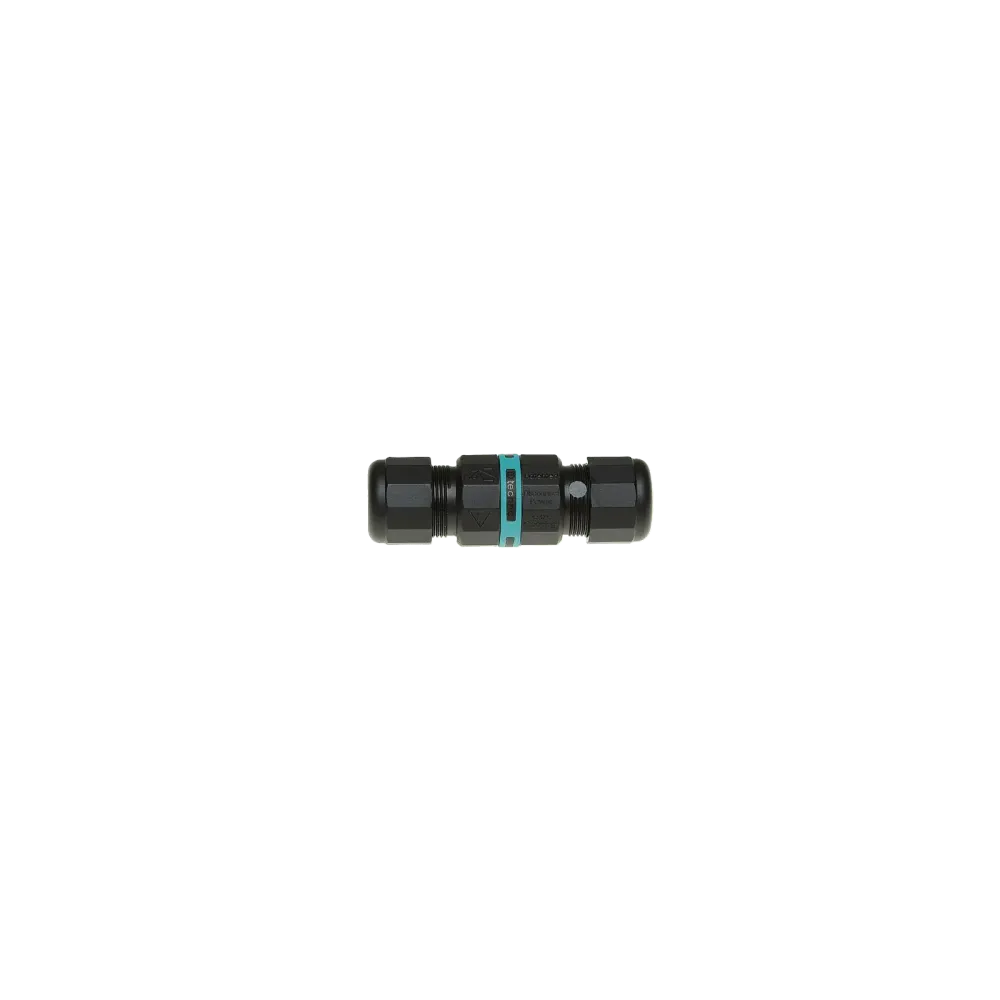

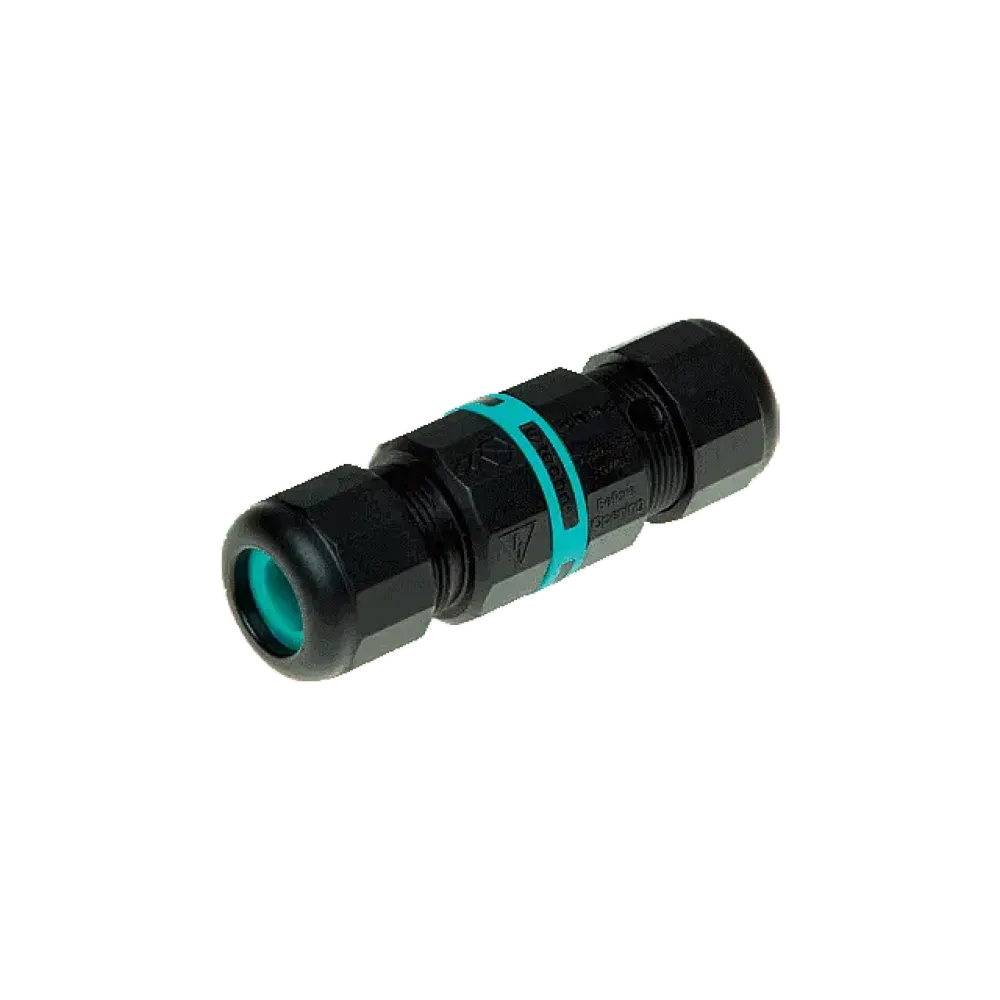

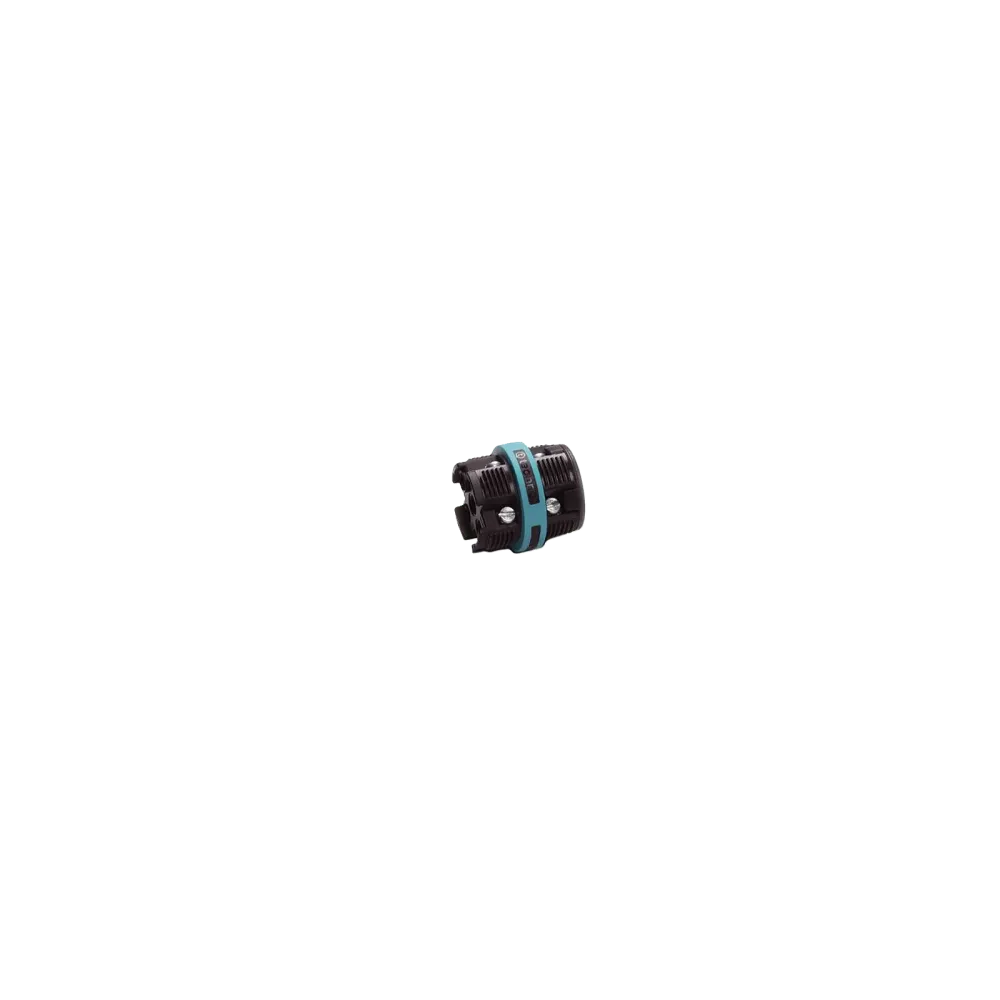

TH391 cable connector from Techno, Italy
. Waterproof, universally applicable cable connector
- For cable diameter: Ø 7.0 - 12.0 mm
- Dimensions: Ø 23.0 x 66.0
- IP68
Other Techno products and designs on request.
Technical data
Number of outputs: 2
Number of poles: 3
Dimensions:Ø 23.0 x 66.0 mm
Nominal voltage: 450V AC
Nominal current: 24 A
Connection cross-section: 0.5 - 2.5 mm2
Cable diameter: 7.0 -12.0 mm
Temperature: T 85°C
IP protection: IP68
Housing material: PA66 GF UL94 V0 / PA66 UL94 V2
O-rings: TPE
Sealings: TPE
Material properties: Halogen-free, silicone-free
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Product | Cable connector |
| Connection cross-section (mm²) | 0.5 - 2.5 mm² |
| Number of poles | 3 |
| Temperature range | -40°C to 125°C |
| Cable diameter | 7-12 mm |
| Nominal current | 24 A |
| Certificates | IEC |
| Nominal voltage (V) | 450 V |
| Manufacturer | Techno |
| IP protection | IP68 |
