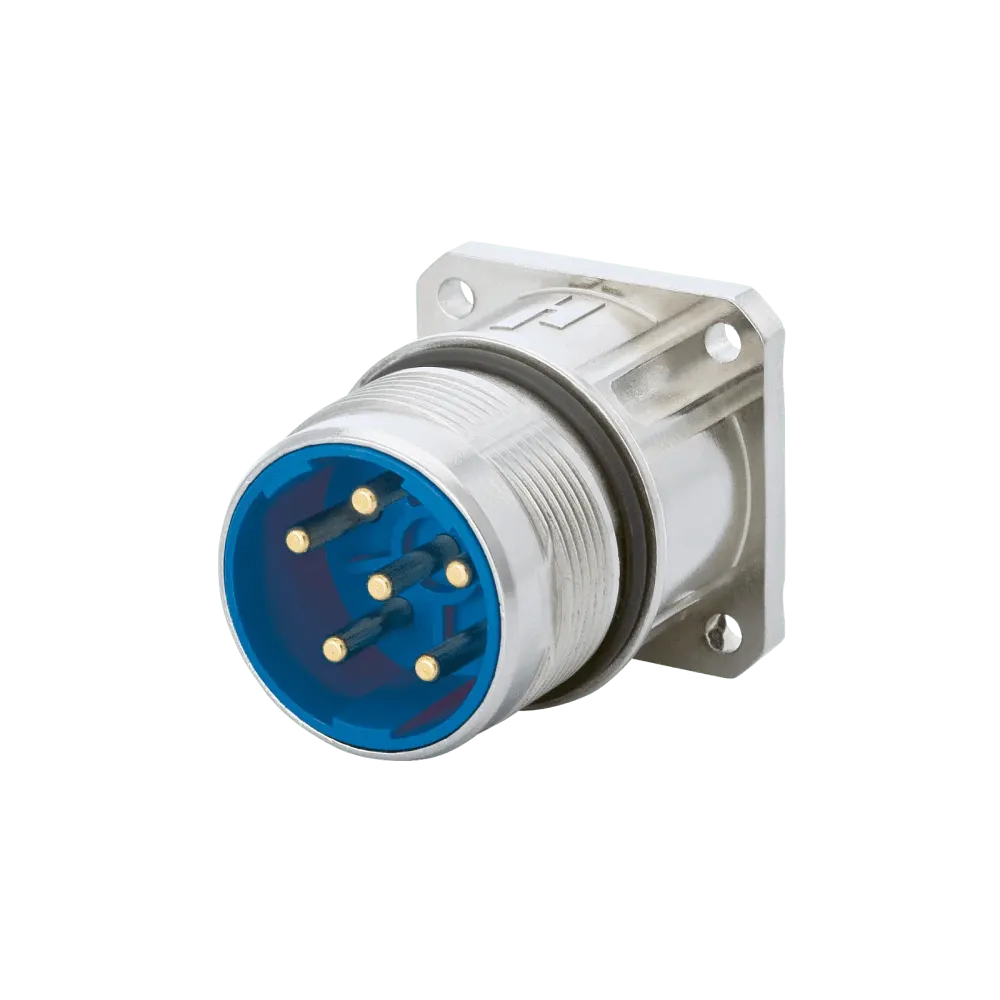

Housing M23 appliance coupler Power Front panel mounting

M23 appliance coupler power front panel mounting (Housing only, excl. insert and contacts)
. The classic HUMMEL M 23 power connector is able to cover a wide range of applications. With 6, 8 or 9-pole inserts and performance data of up to 28 A / 600 V, this connector system is up to almost any challenge.

// High power transmission
// Screw or TWILOCK / TWILOCK-S quick-release fastener
// Numerous housing designs

A huge modular construction kit
. The modular design makes it possible: many HUMMEL connector housings can be combined with numerous contact inserts. The system, which functions like a giant modular construction kit, allows a large number of variants to be realized. This results in
. numerous advantages:

// huge number of possible combinations
// Uniform packaging
// Simple disposition
// Minimized warehousing
// Assembly and disassembly without special tools

This is how the system works:
// Choose one of the connector series according to the application and the required number of poles.
// Select housing designs (cable connector, coupling, elbow, device connector) with the desired locking system (screw lock, TWILOCK, TWILOCK S)
// Select suitable insert (pin insert or socket insert) >see accessories
// Select the required number of corresponding contacts (pins or sockets) >see accessories

. Other, unpublished HUMMEL products and designs on request.

Technical data

• Housing material: brass, die-cast zinc
• Material housing surface: nickel-plated
• Mounting type: Front wall
• Male thread on plug-in side: M23 x 1
• Locking type: Screw fastening
• Shielding: unshielded
• Seal type: O-ring
• Material seals/o-rings: FKM (FPM), NBR

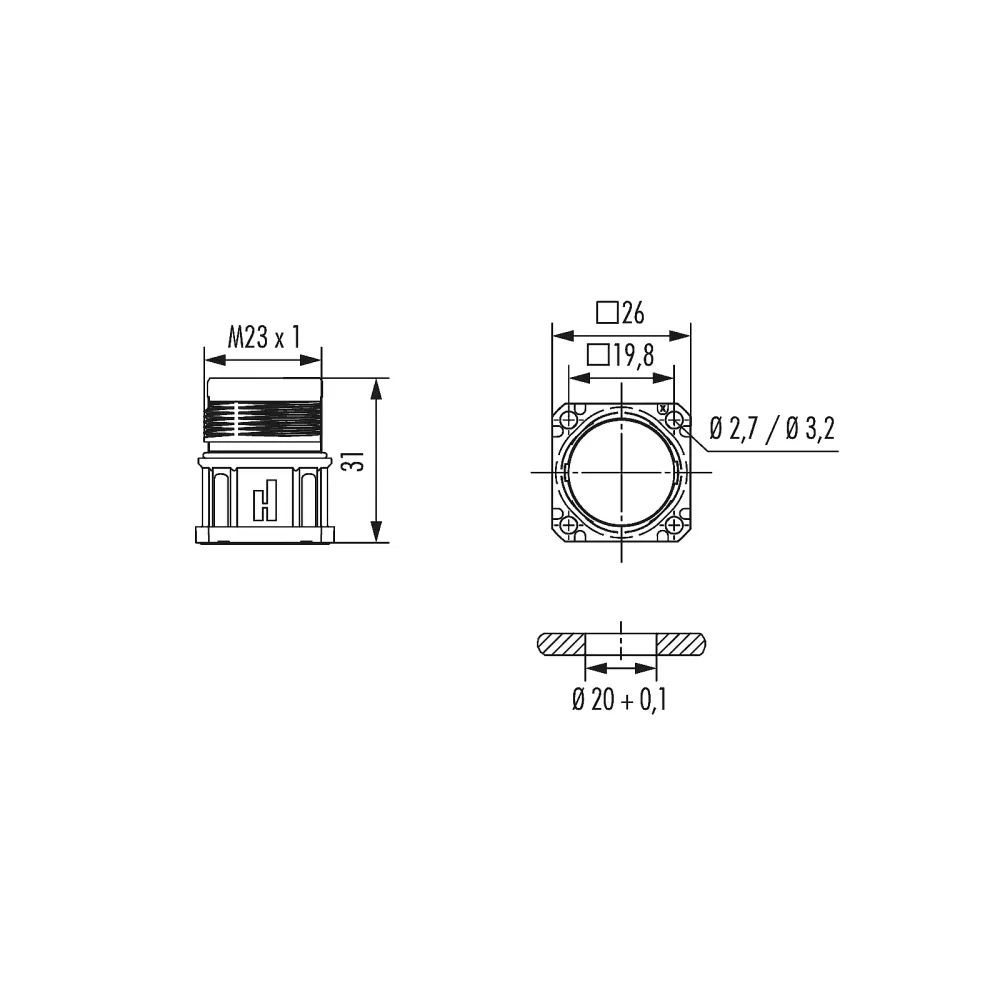

• Installation dimensions: Ø 20 + 0.1 mm
• Flange: 26 x 26 mm / 25 x 25 mm / 28 x 28 mm
• Hole spacing: 19.8 mm
• Hole diameter:4x Ø 3.2 mm / 4x Ø 2.7 mm
• Protection class: IP67 / 69K
• Temperature range: -40°C to +125°C

Subject to technical changes
