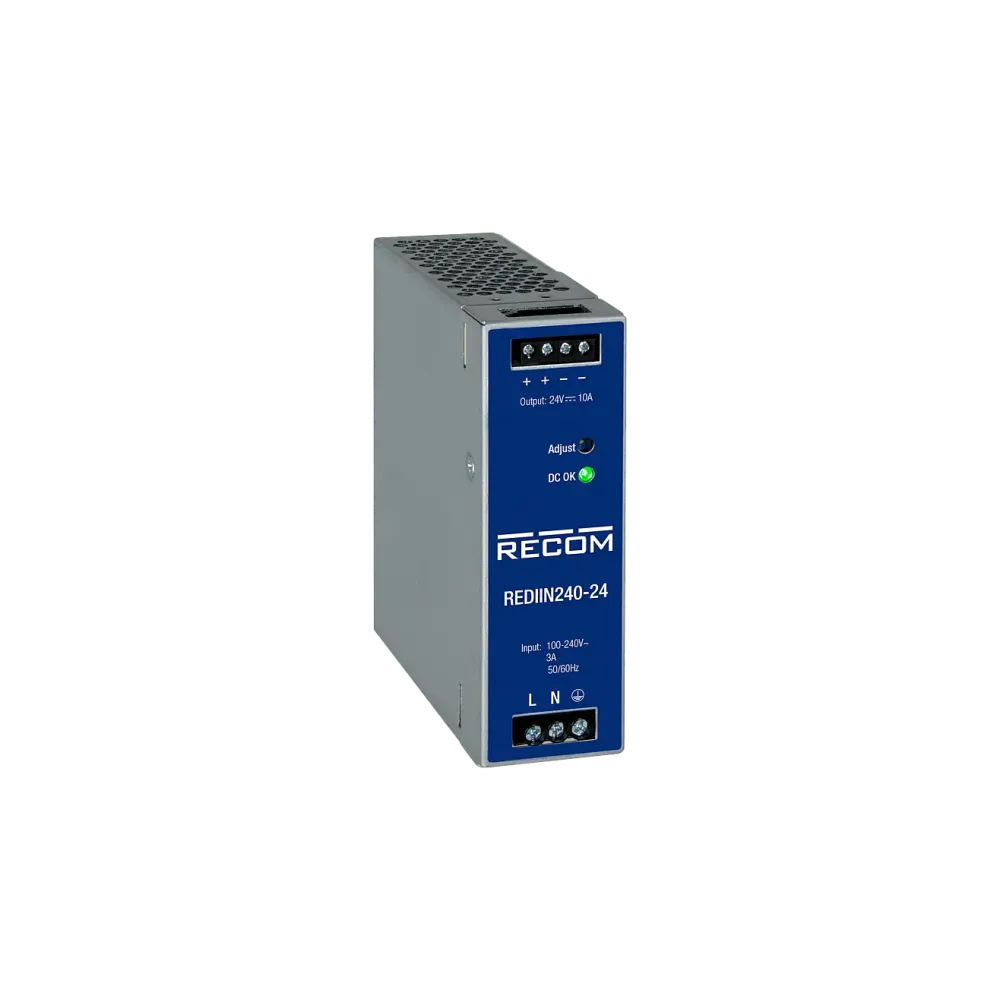

240W DIN rail power supply 24V/10A

The REDIIN240 DIN rail power supply has been specially developed for price-conscious users to provide important functions for industrial applications without compromising on quality and reliability. With an output power of 240W and an extremely compact size of only 123.6 x 40.0 x 116.8mm, the REDIIN240 series offers two adjustable output variants from 24V to 48V. The convection-cooled devices operate reliably in a temperature range from -30°C to +50°C (230VAC). They can be operated in constant current mode and are therefore ideal for inductive and capacitive loads. They are also certified in accordance with the safety standards IEC/EN/UL 62368-1, IEC/EN/UL61010-1 and IEC/EN/UL/CSA61010-2-201. The electromagnetic emissions comply with the industry standard EN 61000-6-4 Class B and the standard EN 61000-6-2 for immunity.

Technical data

• Universal input voltage range 90-264VAC
• Built-in constant current circuit
• Two output variants 24V and 48V available
• Adjustable output voltage range ±10%
• High power density with an efficiency of up to 90.5%
• Temperature range -30°C to +70°C
• Cold start capability -40°C
• Reduced power consumption in idle mode <0,3W
• Width only 40mm
• Low weight of only 620g
• 3-year guarantee
