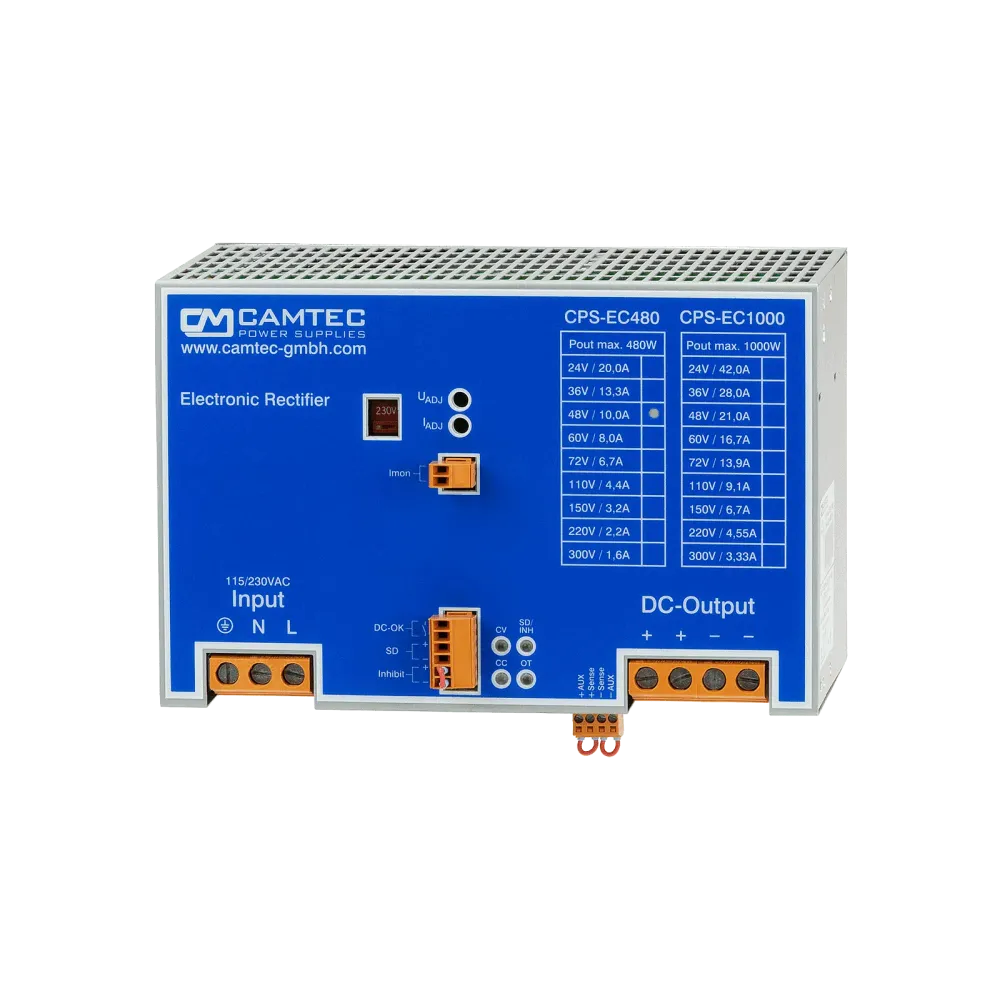

480W DIN rail battery charging module 48V/10A, single phase

The Camtec CPS-EC series is a high-precision switching power supply for demanding requirements. Current and voltage can be set precisely. It is developed and manufactured by CAMTEC in Germany. The design meets demanding requirements for applications such as railroads, complex drives, battery charging for DC UPS, test benches, mechanical engineering and professional LED lighting. The power supply offers low ripple, precise load regulation and a high efficiency of up to 94%. High-quality long-life capacitors guarantee an extended bridging time and an exceptional service life of the power supply unit. The circuit design takes complex loads into operation without any problems. The internal control circuit manages impermissible operating states to protect your system from damage. All inputs, outputs and functional connections are galvanically isolated. The design rules emphasize enhanced immunity and safety. The device is designed according to the standards EN60950-1, EN62368-1, EN61010-1, EN61010-2-201 and EMC compatibility according to EN55032.

Technical data

• Real-time current monitoring
• Precise potentiometer for current & voltage setting
• Power Good Relay DC-OK
• I/U characteristic up to 0V, no foldback
• Sense compensation 1V per load line
• Electronic inrush current limiter 13.8Apeak
• Inhibit / Interlock for safety shutdown
• Shutdown (remote shutdown)
• Efficiency of up to 92
• Precise dynamics during load changes
• Long service life under stress operation
• Resistant input filters
• Power failure bridging >50ms
• Soft start & Auto-Recovery
• Highly reliable, shock & vibration
• EMC complies with CE Class B standard
• Overload and permanently short-circuit proof
• Large spring terminals 0.5 - 16mm²
• Made in Germany
