480W DIN rail power supply 24V/20A, single phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

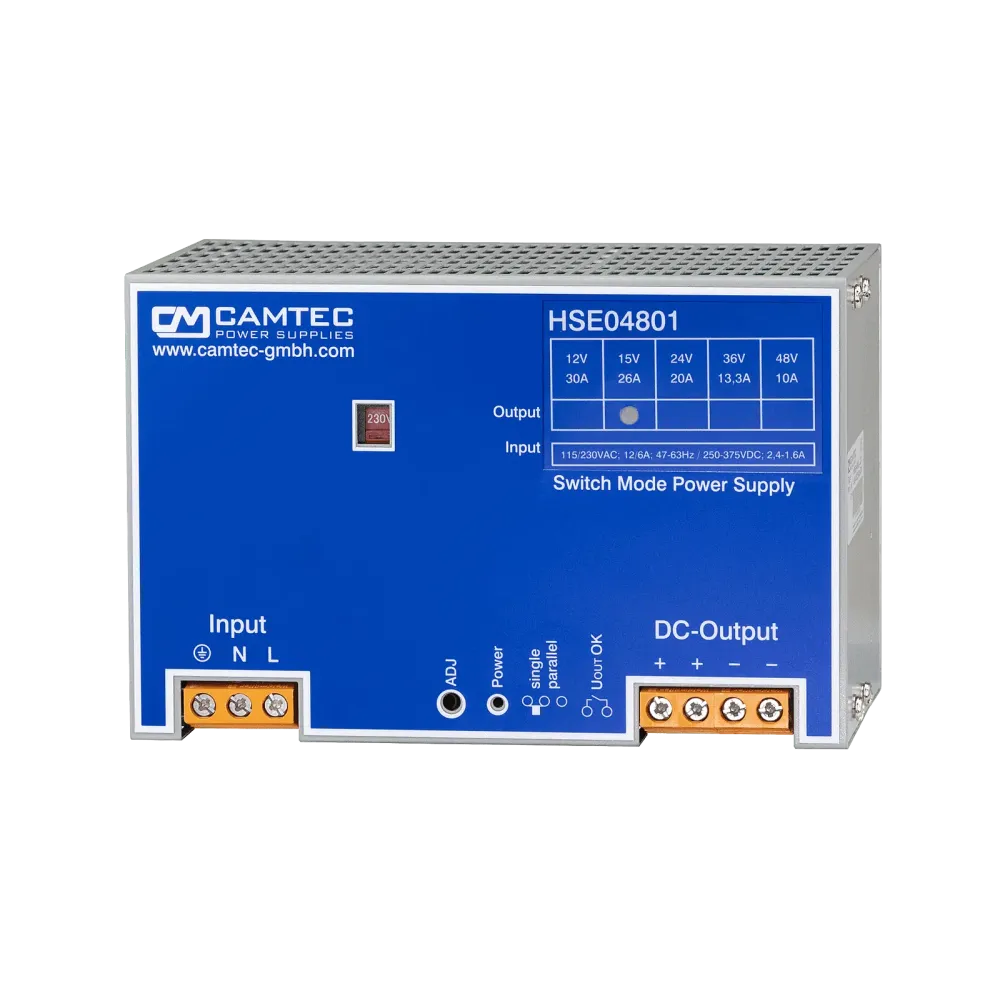

The Camtec HSE models are industrial high-performance power supply units "Made in Germany". These highly reliable power supply units are designed for complex loads and battery charging.

Technical data

Suitable for mounting on TS-35 top-hat rails
Spring terminals 0.5 to 12mm²
Efficiency 91%
Open-circuit-proof and permanently short-circuit, overvoltage and undervoltage-proof
Operating temperature range from -20° to +60°C at full load
Classic V/I characteristic curve for complex loads such as DC motors
Serial and parallel switchable
Dimensions 130 x 200 x 118mm (H x W x D)
Highly reliable, shock and vibration resistant

Product specifications

Width	200 mm
Overload behaviour	Constant current limiting
Input voltage range (VAC)	110/230 V
Product series	HSE
Status signals	AC OK relay contact, DC OK relay contact
Depth	115 mm
Height	130 mm
Manufacturer	Camtec
Output current	20 A
Power	480 W
Output voltage (VDC)	24 V
Certificates	EN60204-1, EN61010-1, EN61010-2-201, EN62368-1
