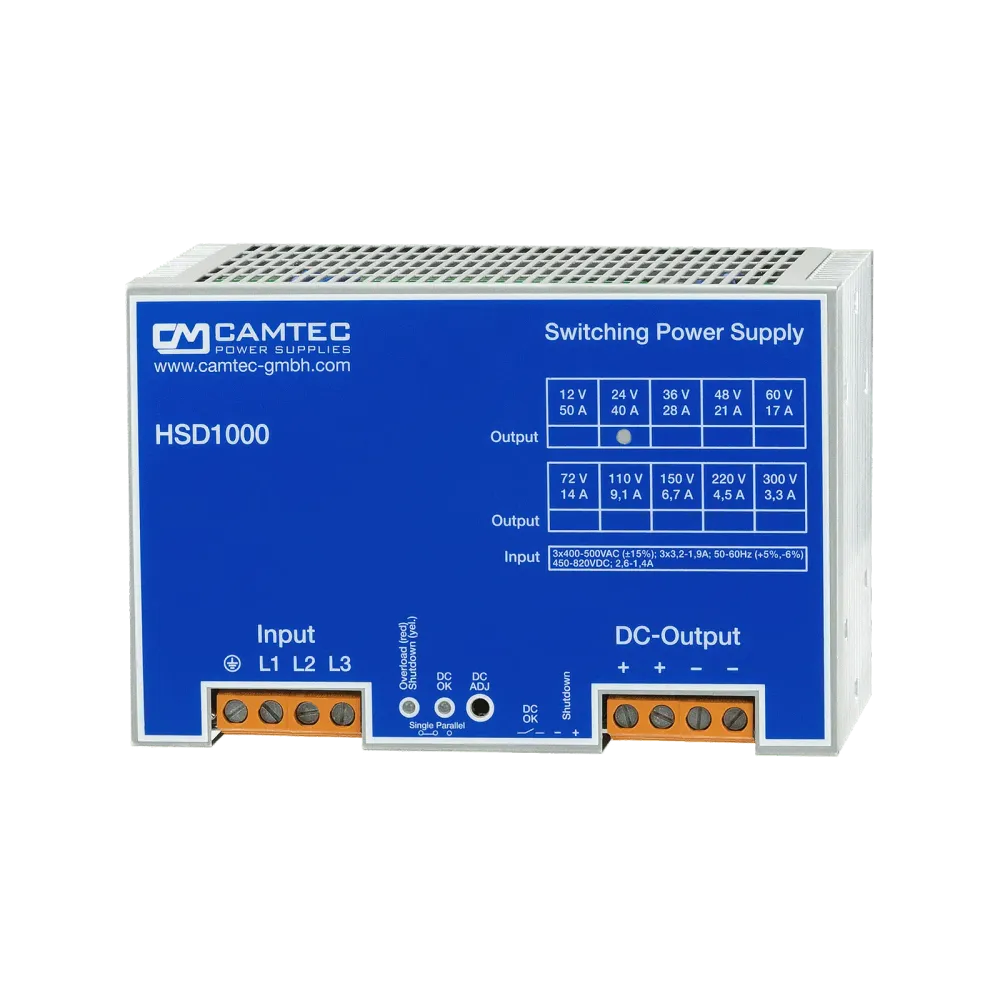

1008W DIN rail power supply 48V/21A, 3-phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The Camtec HSD 3-phase models are industrial high-performance power supplies "Made in Germany". These power supplies are designed for complex loads and for battery charging. They can also be used in a 2-phase network configuration.

Technical data

DIN rail power supply unit 2/3-phase fixed voltage TS35mm
Clean U/I characteristic without foldback, ideal for drives and DC UPS
High energy reserves and constant current output up to almost 0V enable controlled power output to complex loads without unwanted uncontrolled power boosts
Parallel operation N+1
Active inrush current limitation for low starting currents
Active PFC (Power Factor Correction)

Product specifications

Width	200 mm
Certificates	EN60204-1, EN61010-1, EN61010-2-201, EN62368-1
Overload behaviour	Constant current limiting
Additional functions	Parallel switchable
Depth	120.8 mm
Height	131.5 mm
Output current	21 A
Product series	HSD
Control signals	Remote ON/OFF
Power	1008 W
Status signals	AC OK relay contact, DC OK relay contact
Manufacturer	Camtec
Output voltage (VDC)	48 V
Input voltage range (VAC)	340-575 V
