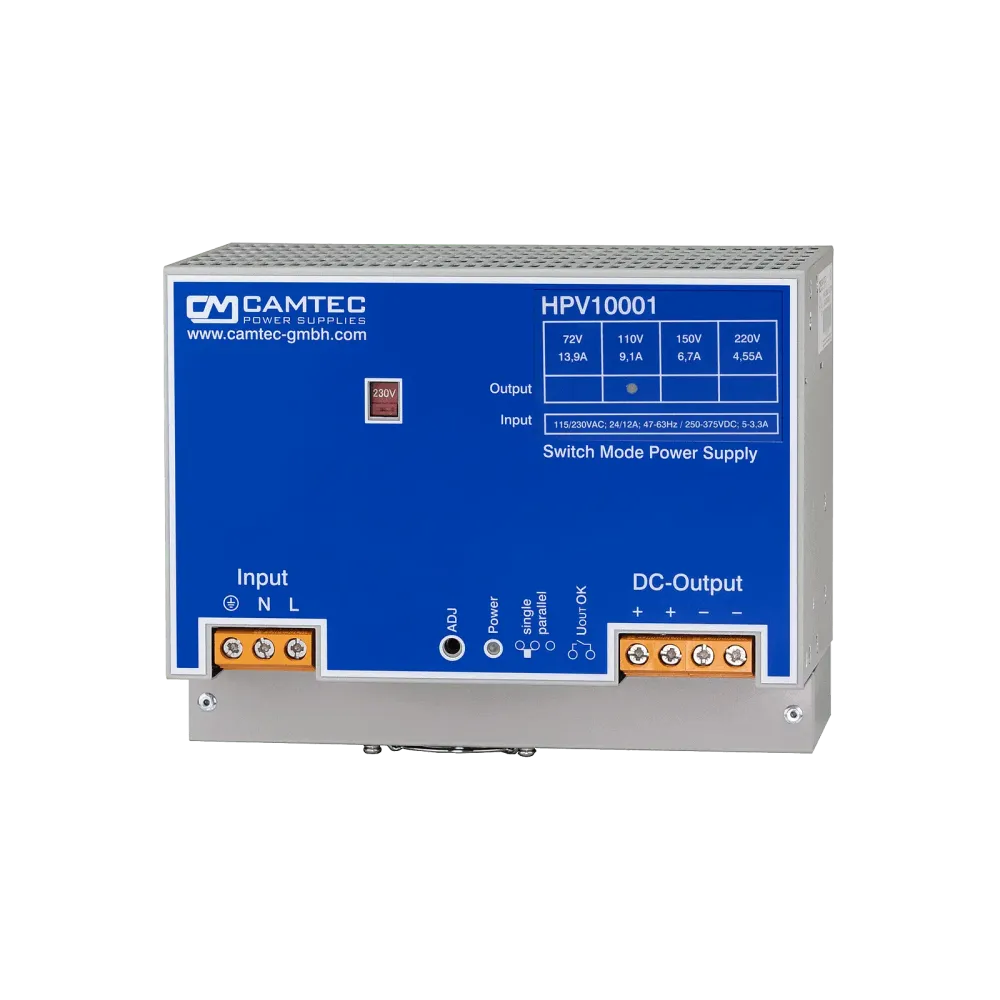

1001W DIN rail power supply 220V/4.55A, single phase

The Camtec HPV series is a high-precision switching power supply for demanding requirements. Developed and built in Germany, the design meets the demanding requirements of applications such as complex drives, piezo print heads, test benches and professional mechanical engineering. The power supply has a low ripple noise, precise load regulation and a high efficiency of up to 93%. High-quality long-life capacitors guarantee an extended hold-up time and an exceptional service life of the power supply unit. The circuit design is designed for complex loads. The internal control circuit monitors unwanted operating states and thus protects your system from damage. The HPV series has active protection against high input transients with suppressor diodes, X2 capacitors and varistors. All inputs, outputs and function connections are galvanically isolated. The circuit is designed for extended interference immunity and safety.
The device complies with the standards EN61010-1, EN61010-2-201, EN62368-1, EN60950-1 and EMC compatibility in accordance with EN55032.

Technical data

• Suitable for mounting on TS-35 top-hat rails
• Spring terminals 0.5 to 16mm²
• Efficiency 91%
• Open-circuit-proof and permanently short-circuit, overvoltage and undervoltage-proof
• Operating temperature range from -20° to +60°C at full load
• Classic V/I characteristic curve for complex loads such as DC motors
• Serial and parallel switchable
• Dimensions 156 x 200 x 115mm (H x W x D)
• Highly reliable, shock and vibration resistant
• Made in Germany
