960W DIN rail power supply 24V/40A, 3-phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

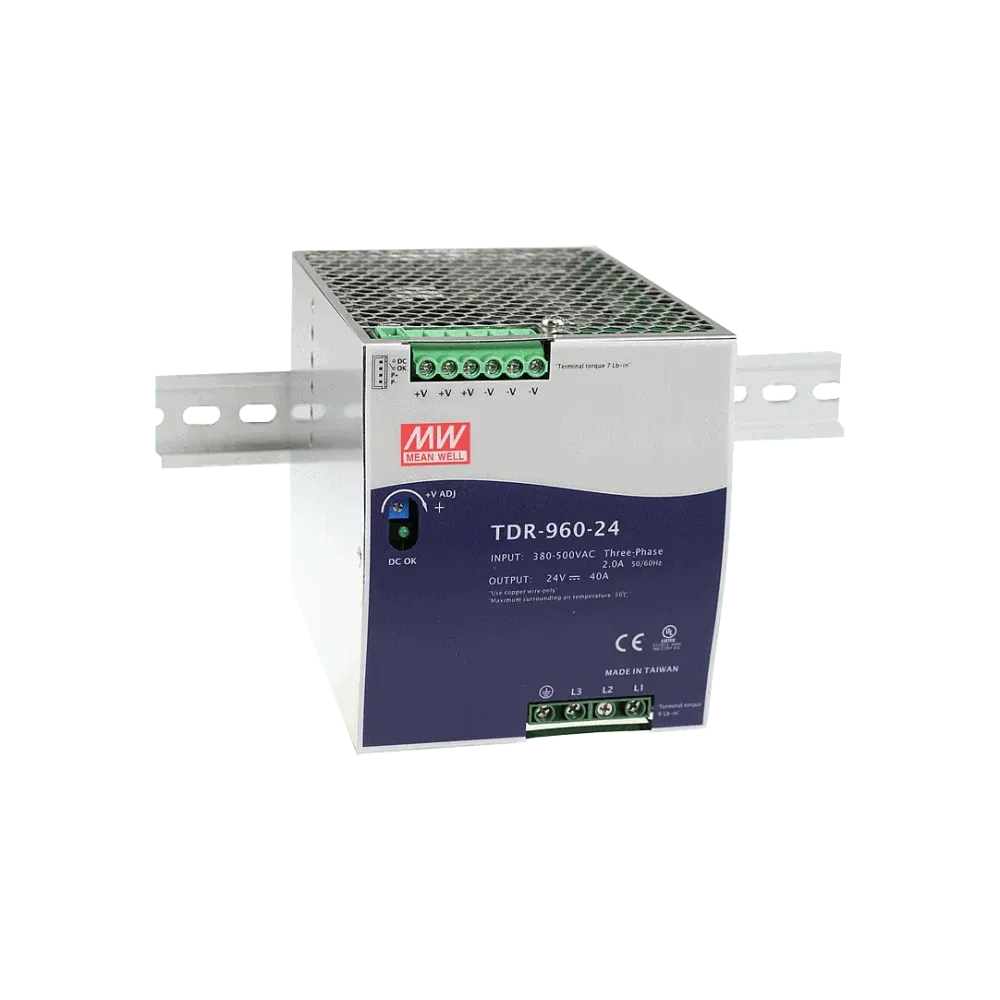

TDR-960-24 is a compact DIN rail power supply unit for 3-phase operation. The 110mm wide metal housing saves space in the control cabinet. With the high efficiency of 94%, the power loss is minimized to keep the heating in the control cabinet as low as possible. The power supply unit is ideal for industrial control systems, semiconductor production or automation applications.

Technical data

3 phase input voltage 340 to 550Vac (2 phase operation possible)
Suitable for mounting on TS-35/7.5/15 top-hat rails
High efficiency 94%
Operating temperature range from -30°C to +70°C
Parallel switchable up to 4 devices
Built-in DC OK relay contact
LED display for DC OK
Dimensions 110 x 125.2 x 150mm (W x H x D)

Product specifications

Output voltage (VDC)	24 V
Overload behaviour	Constant current limiting
Certificates	IEC62368-1, UL508
Product series	TDR
Depth	150 mm
Width	110 mm
Power	960 W
Status signals	DC OK relay contact
Height	125.2 mm
Output current	40 A
Manufacturer	MEAN WELL
Input voltage range (VAC)	340-550 V
