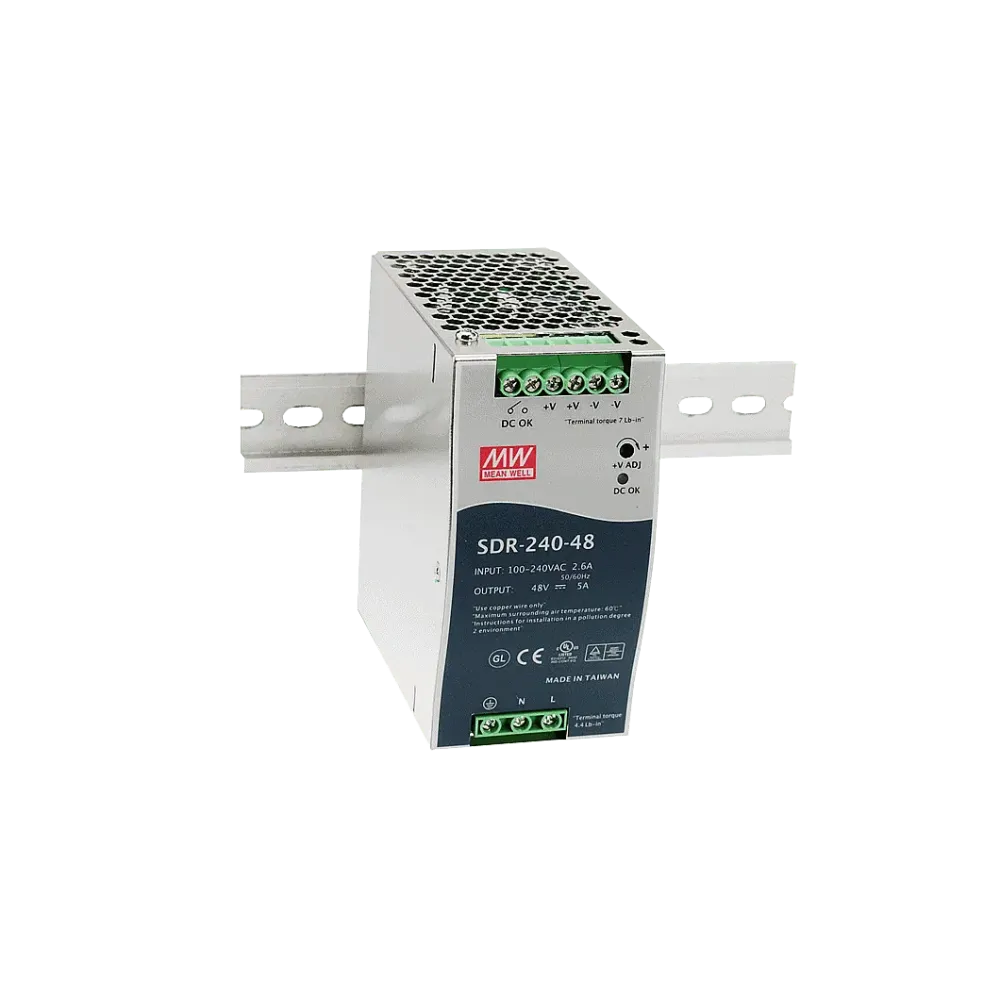

240W DIN rail power supply 48V/5A, single phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The Mean Well SDR-240-48 was developed to meet the highest demands. This DIN rail power supply offers impressive performance and reliability for your professional electronics projects. With a rated power of 240 watts and an output voltage of 48V, the SDR-240-48 is the ideal choice for industrial applications and demanding environments. In the short term, the power supply delivers up to 150% peak power.

Technical data

Built-in active PFC
Suitable for mounting on TS-35/7.5/15 top-hat rails
150% peak load
Operating temperature range from -25°C to +70°C
LED display for DC OK
DC OK relay contact
Dimensions 63 x 125.2 x 113.5mm (W x H x D)

Product specifications

Manufacturer	MEAN WELL
Overload behaviour	Constant current limiting
Depth	113.5 mm
Product series	SDR
Status signals	DC OK relay contact
Height	125.2 mm
Input voltage range (VAC)	85-264 V
Output current	5 mA
Width	63 mm
Output voltage (VDC)	48 V
Power	240 W
Certificates	EN62368-1, IEC62368-1, AS/NZS62368-1, EAC TP TC 004, UL62368-1, UL508
