About the product

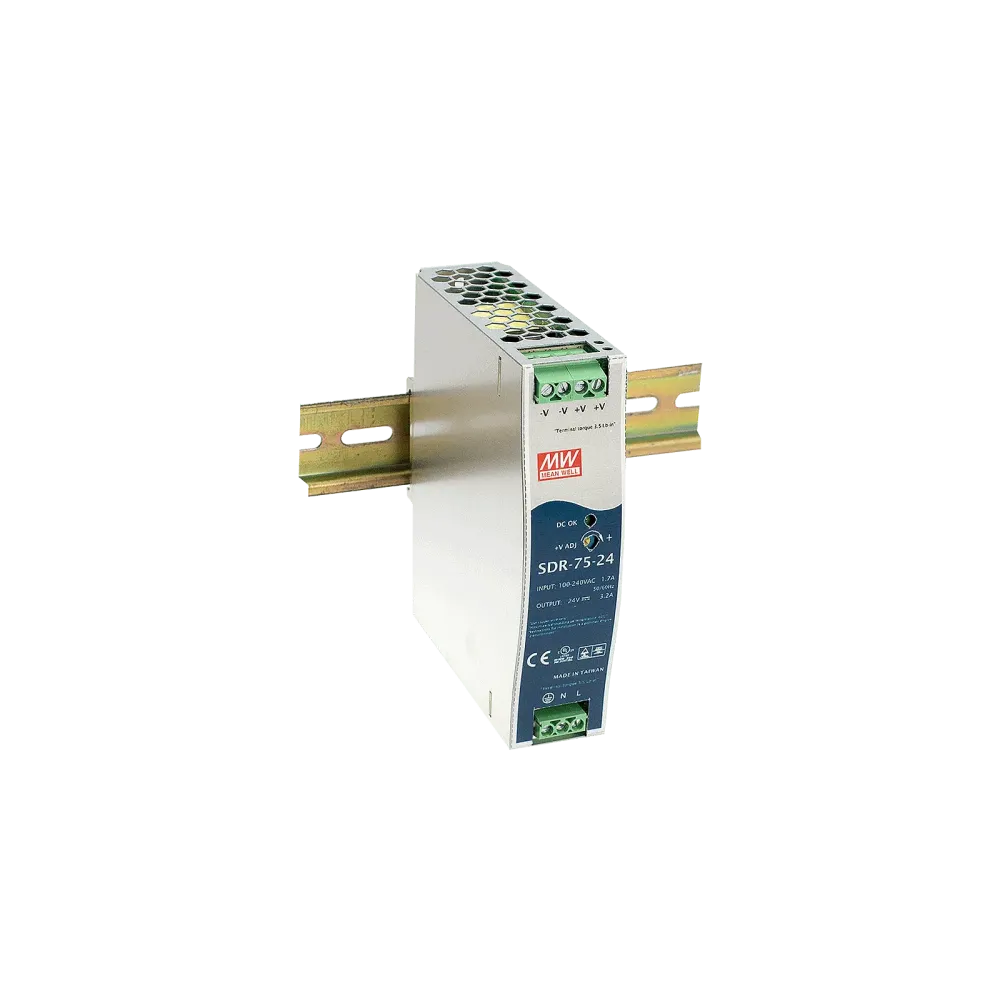

SDR-75-24 is a slim 75W DIN rail power supply with metal housing and 150% peak power function.
Technical data
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- 150% peak load
- Operating temperature range from -30°C to +70°C
- LED display for DC OK
- Dimensions 32 x 125.2 x 102mm (W x H x D)
Product specifications
| Width | 32 mm |
| Overload behaviour | Constant current limiting |
| Power | 76 W |
| Depth | 102 mm |
| Product series | SDR |
| Height | 125.2 mm |
| Input voltage range (VAC) | 85-264 V |
| Output current | 3.2 A |
| Manufacturer | MEAN WELL |
| Output voltage (VDC) | 24 V |
| Certificates | EN62368-1, IEC62368-1, UL508 |
