240W DIN rail power supply 48V/5A, single phase

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

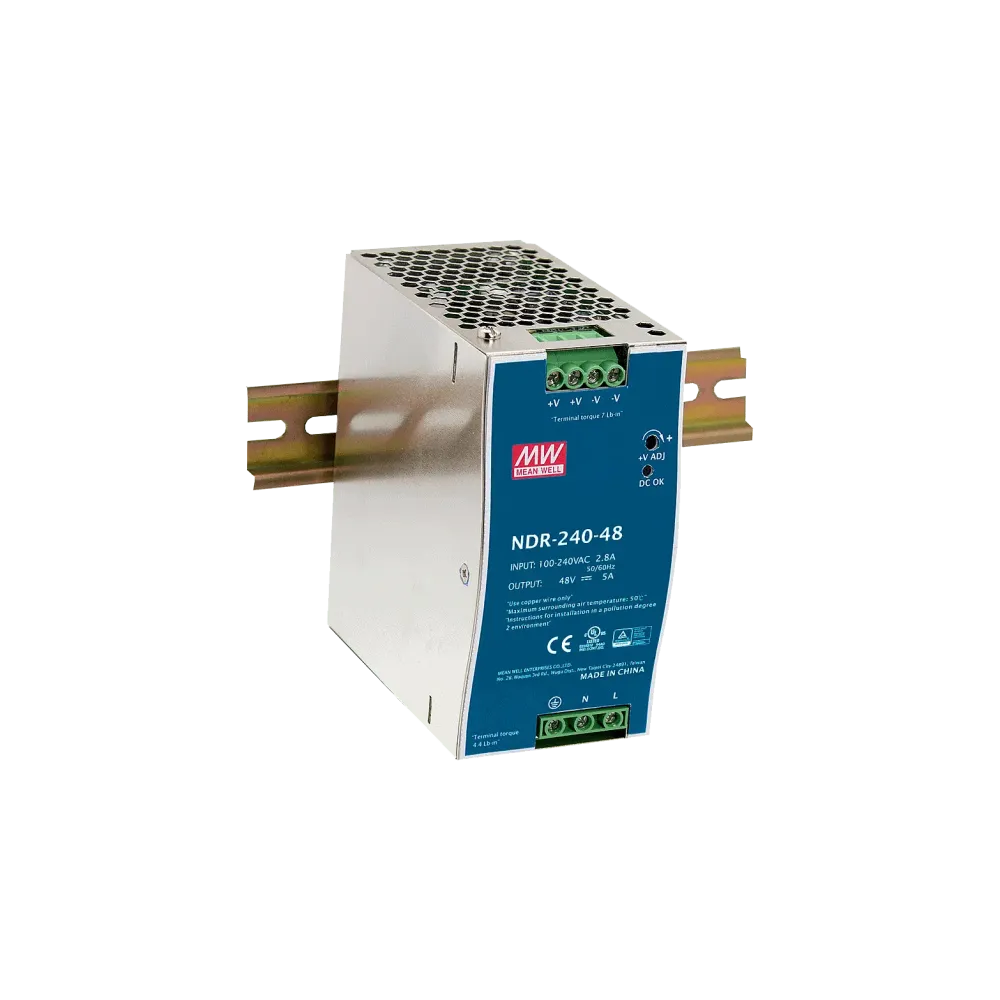

NDR-240-48 is a cost-effective, slim 240 Watt DIN Rail power supply unit for mounting on TS-35/7.5 or TS35/15 mounting rails.
. With an efficiency of up to 88%, the entire series can be operated at an ambient temperature between -20°C and 70°C under air convection. The power supply is equipped with a constant current mode for overload protection and is suitable for various inductive or capacitive applications. The complete protection functions and the corresponding certifications for industrial control devices (UL508, TUV BS EN62368-1) make the NDR-240 a very competitive power supply solution for industrial applications.

Technical data

Suitable for mounting on TS-35/7.5/15 top-hat rails
Operating temperature range from -20°C to +70°C
LED display for DC OK
Dimensions 63 x 125.2 x 113.5mm (W x H x D)

Product specifications

Manufacturer	MEAN WELL
Overload behaviour	Constant current limiting
Product series	NDR
Depth	113.5 mm
Height	125.2 mm
Input voltage range (VAC)	85-264 V
Output current	5 mA
Width	63 mm
Output voltage (VDC)	48 V
Power	240 W
Certificates	EN62368-1, IEC62368-1, UL508
