About the product

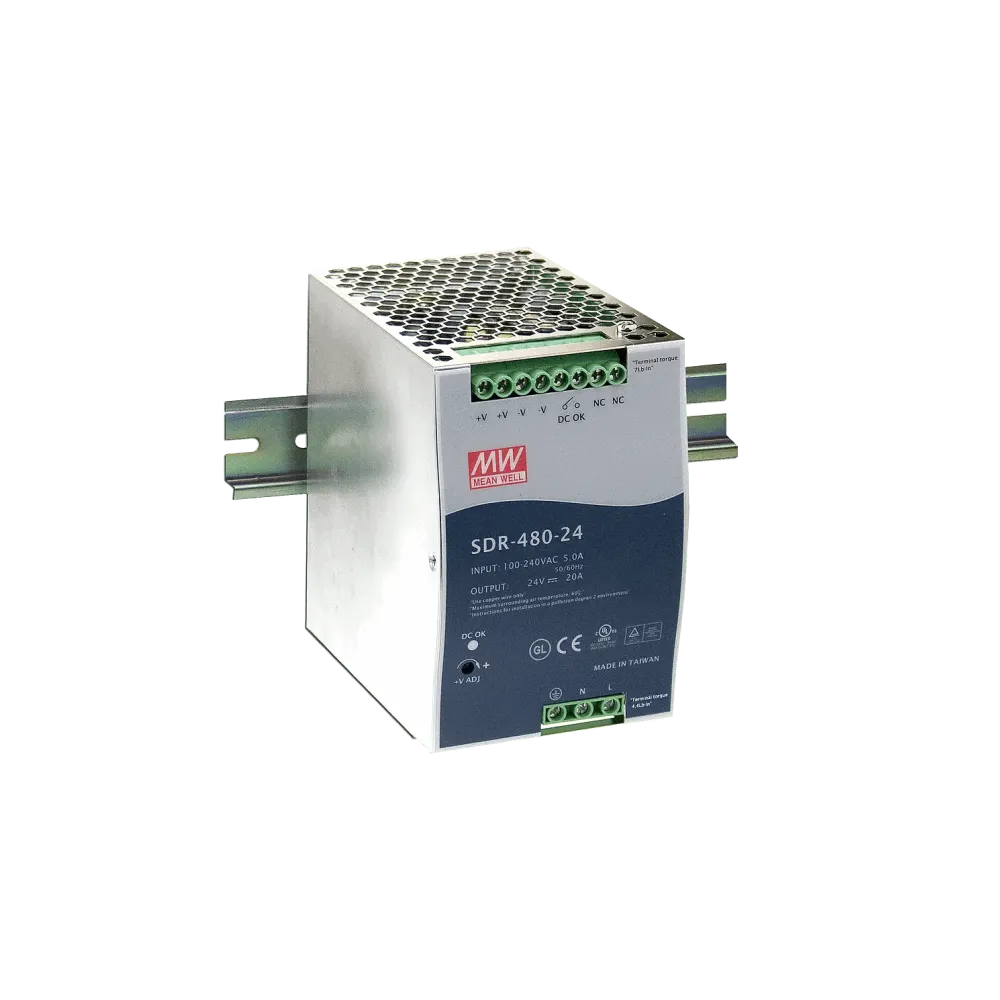

SDR-480-24 is a slim 480W DIN rail power supply with metal housing and 150% peak power function.
Technical data
- Built-in active PFC
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- 150% peak load
- Operating temperature range from -25°C to +70°C
- LED display for DC OK
- DC OK relay contact
- Dimensions 85.5 x 125.2 x 128.2mm (W x H x D)
Product specifications
| Output voltage (VDC) | 24 V |
| Overload behaviour | Constant current limiting |
| Product series | SDR |
| Status signals | DC OK relay contact |
| Depth | 128.5 mm |
| Height | 125.2 mm |
| Input voltage range (VAC) | 85-264 V |
| Width | 85 mm |
| Output current | 20 A |
| Power | 480 W |
| Manufacturer | MEAN WELL |
| Certificates | EN62368-1, IEC62368-1, AS/NZS62368-1, EAC TP TC 004, UL508 |
