About the product

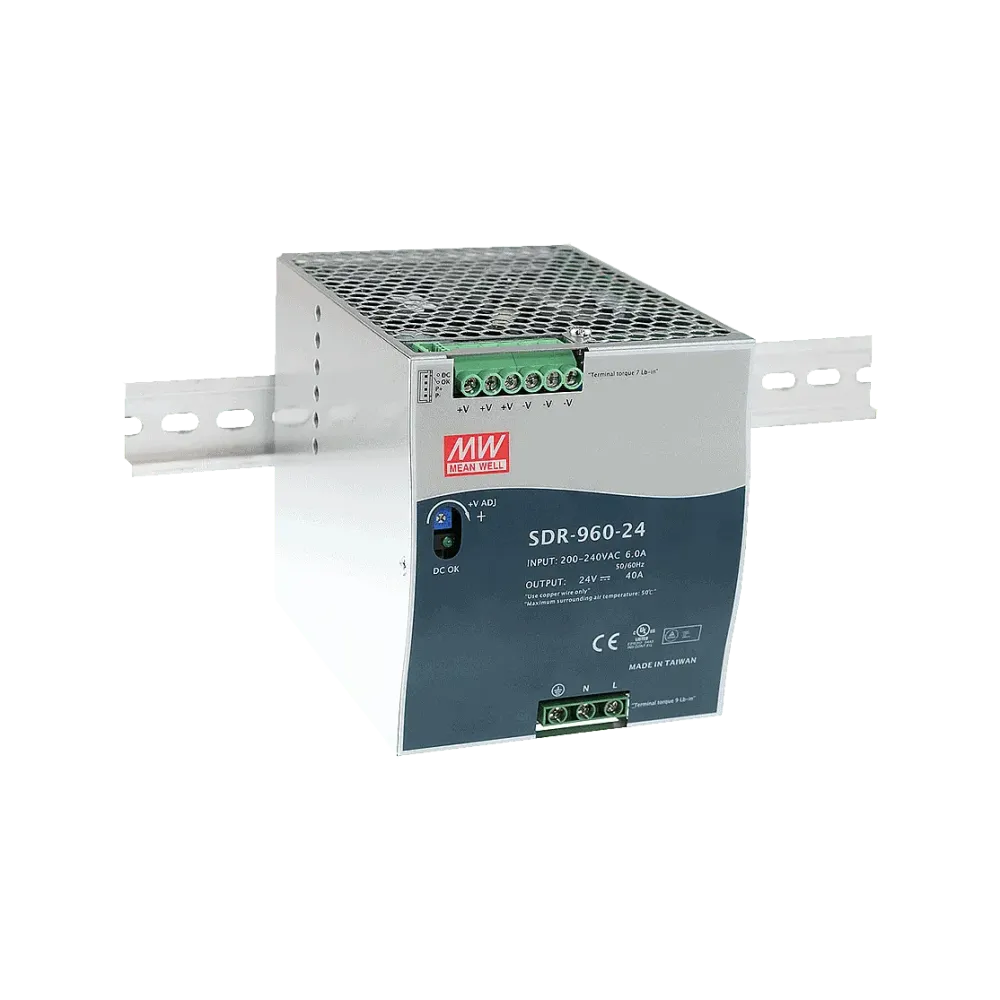

SDR-960-24 is a slim 960W DIN rail power supply with metal housing and 130% peak power function.
Technical data
- Built-in active PFC
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- 130% peak load
- Parallel switchable up to 4 devices
- Operating temperature range from -30°C to +70°C
- LED display for DC OK
- DC OK relay contact
- Dimensions 110 x 125.2 x 150mm (W x H x D)
Product specifications
| Output voltage (VDC) | 24 V |
| Overload behaviour | Constant current limiting |
| Depth | 150 mm |
| Width | 110 mm |
| Power | 960 W |
| Product series | SDR |
| Status signals | DC OK relay contact |
| Height | 125.2 mm |
| Input voltage range (VAC) | 180-264 V |
| Output current | 40 A |
| Manufacturer | MEAN WELL |
| Certificates | EN62368-1, IEC62368-1, AS/NZS62368-1, CNS14336-1, EAC TP TC 004, UL508 |
Data sheets
