About the product

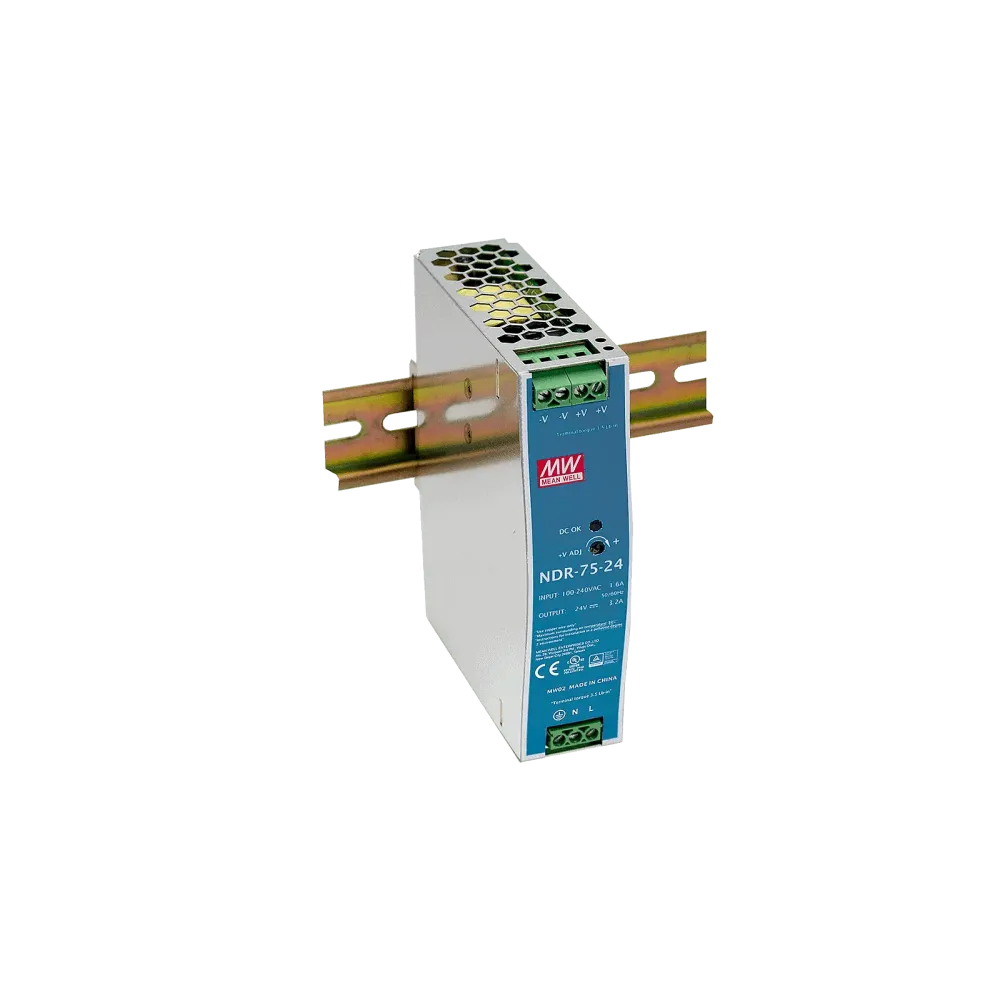

NDR-75-24 is a low-cost, slim 75 Watt DIN rail power supply unit for mounting on TS-35/7.5 or TS35/15 mounting rails.
Technical data
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- Operating temperature range from -20°C to +70°C
- LED display for DC OK
- Dimensions 32 x 125.2 x 102mm (W x H x D)
Product specifications
| Width | 32 mm |
| Overload behaviour | Constant current limiting |
| Product series | NDR |
| Power | 76 W |
| Depth | 102 mm |
| Height | 125.2 mm |
| Input voltage range (VAC) | 85-264 V |
| Output current | 3.2 A |
| Manufacturer | MEAN WELL |
| Output voltage (VDC) | 24 V |
| Certificates | EN62368-1, IEC62368-1, UL508 |
