About the product

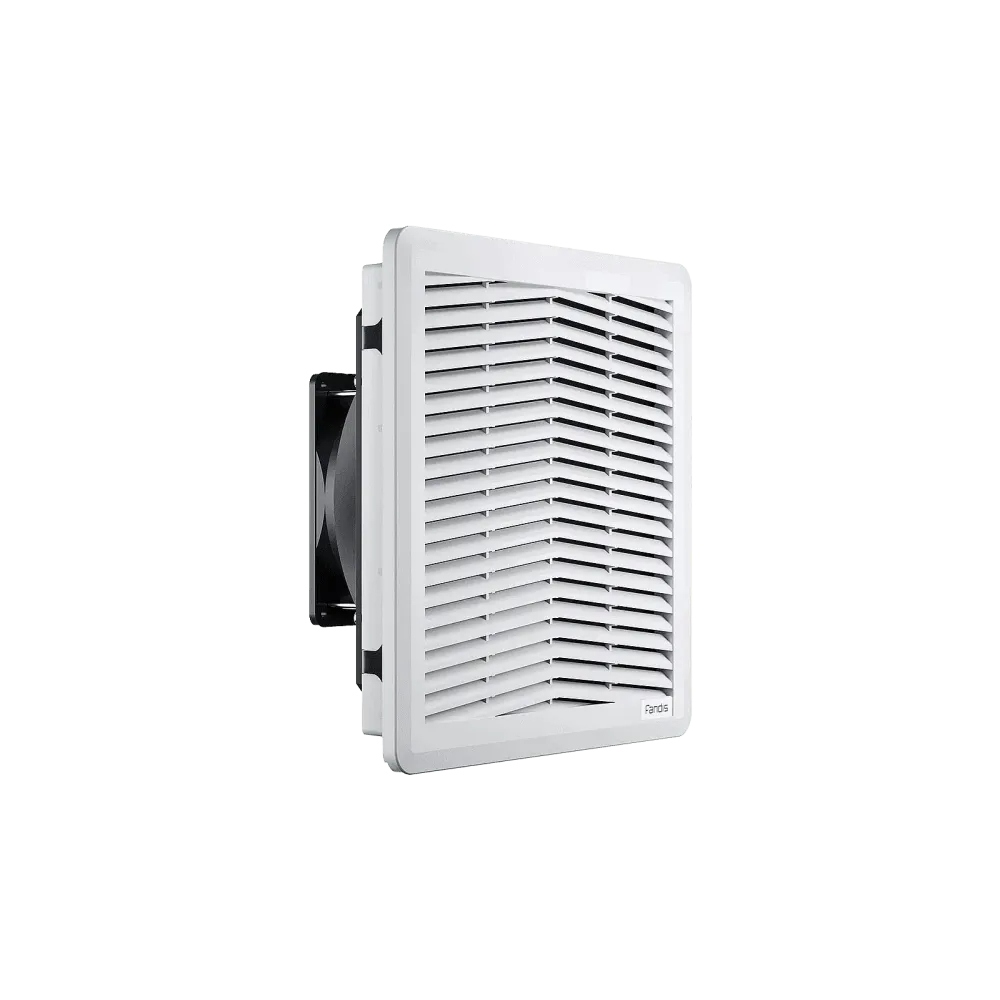

New Fandis FF filter line
. New generation of filterfans with "easy-mount" system
Quick installation
. Screwless quick installation - just press the filter fan/outlet filter into the cut-out
Injection-molded rubber seal
. Thanks to the existing rubber seal, an optimum fit between the FF filterfan/outlet filter and the enclosure is ensured at all times
Simple slide opening
. Fix the filter housing and slide the cover upwards
High protection against water ingress
. Thanks to screwless installation and the rubber seal, the FF filter line meets protection class IP54 (optionally IP55). If water does penetrate between the filter housing and the cover, it is drained to the outside by the existing bars.
UV protection
. Base and lid are made of UV-resistant PC/ABS plastic
Product specifications
| Certificates | CE |
| Air direction | B flow intake |
| Static pressure | 63 Pa |
| Installation depth | 103 mm |
| Supply | 230 VDC |
| Product | Filter fan |
| Cut-out | 223 x 223 mm |
| Standard size | 250 x 250 mm |
| Filter class | G3 |
| Air flow (m³/h) | 130 |
