About the product
- Suitable for wall thicknesses up to 8 mm (optionally 16 mm)
- Innovative flexible mounting system - fixation with fold-out retaining brackets
- Available in 3 standard sizes (12 / 15 & 20)
- Protection class IP54
- Color RAL 7035 (RAL 7032 on request)
- Air flow direction sucking in (B flow) - blowing out (A flow ) on request
Product specifications
| Certificates | CE |
| Air direction | B flow intake |
| Installation depth | 118 mm |
| Static pressure | 110 Pa |
| Supply | 230 VDC |

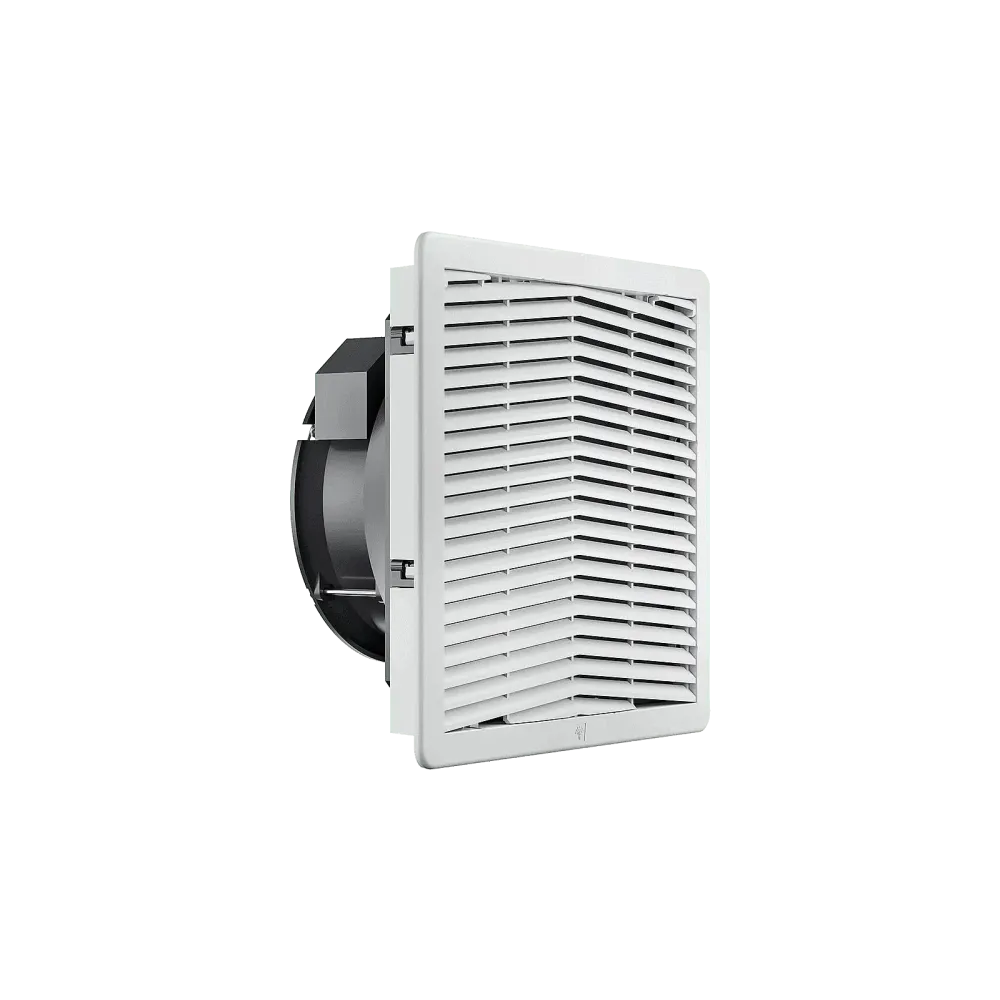

| Product | Filter fan |
| Cut-out | 223 x 223 mm |
| Standard size | 250 x 250 mm |
| Filter class | G3 |
| Air flow (m³/h) | 148 |
