About the product

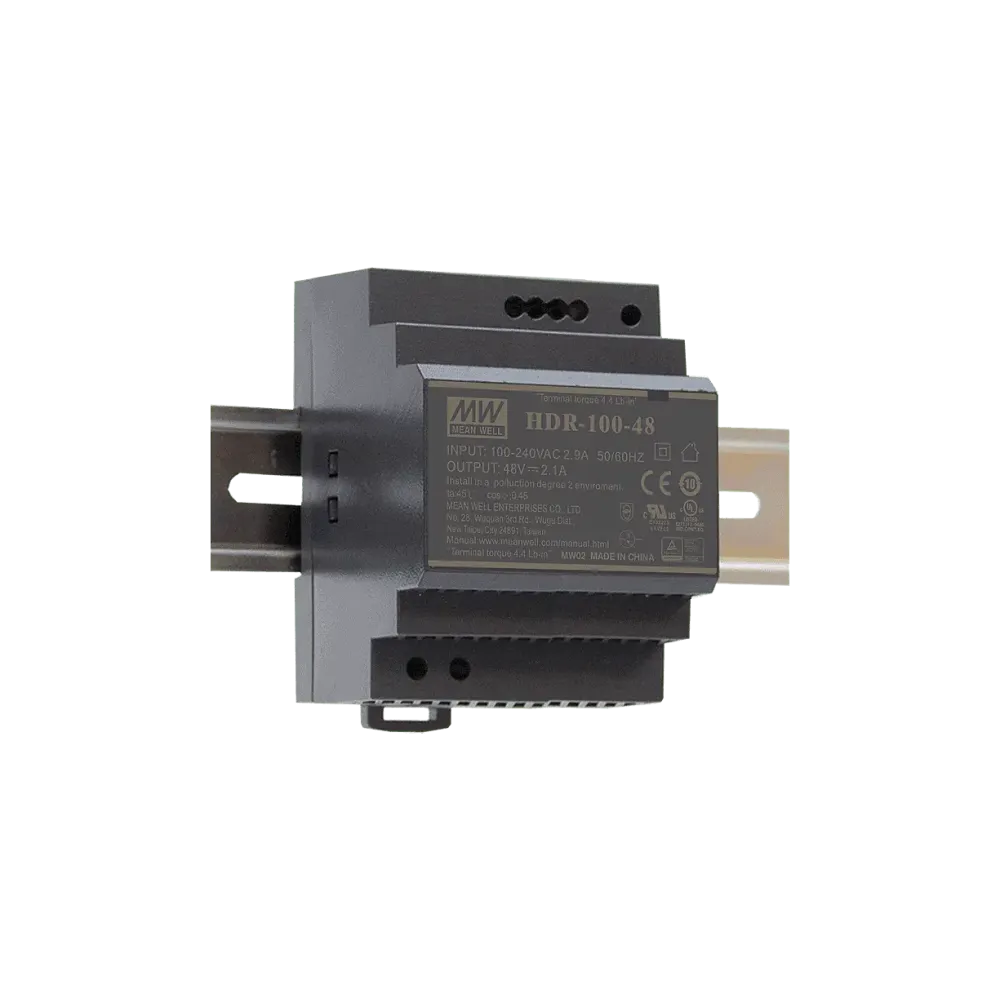

HDR-100-48N is an ultra-compact DIN rail power supply unit for installation in distribution boards. Approved for industrial and domestic applications, the power supplies are the ideal solution for industrial control systems and building automation.
Technical data
- Suitable for mounting on TS-35/7.5/15 top-hat rails
- Haushaltszulassung EN61558-2-16
- Protection class II Device without earth connection
- Dimensions 70 x 90 x 54.5mm (W x H x D)
Product specifications
| Manufacturer | MEAN WELL |
| Certificates | EN61558-1, IEC62368-1, CNS15598-1, EAC TP TC 004, UL62368-1, EN61558-2-16, UL508, OVC III |
| Width | 70 mm |
| Product series | HDR |
| Depth | 54.5 mm |
| Height | 90 mm |
| Input voltage range (VAC) | 85-264 V |
| Power | 100 W |
| Output current | 2.1 A |
| Output voltage (VDC) | 48 V |
| Overload behaviour | Hiccup mode |
