About the product
The ball joint holders are available in different ball diameters, which have different holding forces. A small amount of lever pressure is all that is needed for stepless locking with a high holding force. The base can be selected for clamping, for fixed screwing or with screwed-in high-performance magnets. A quick clamping system for optimum alignment of cameras, monitors, sensors or measuring devices. Carving plates, carving balls or various clamping and holding tools are used in woodworking. In instrument making and model making, a wide variety of clamping and holding devices are screwed on. Suitable adapters and extensions of all kinds can be screwed on via the thread on the ball. An ideal support for repairing e-scooters, e-bikes and bicycles in a free-floating position. Universities, research centers and laboratories have appreciated the versatile application and usage options for years. The clamp-on attachment is suitable for workbenches with a maximum table top thickness of up to 80 mm. The screw-on attachment can be connected to workbenches, tables and base plates via the four 9 mm through-holes. The high-performance magnets offer individual attachment, which can also be changed quickly.
Technical data

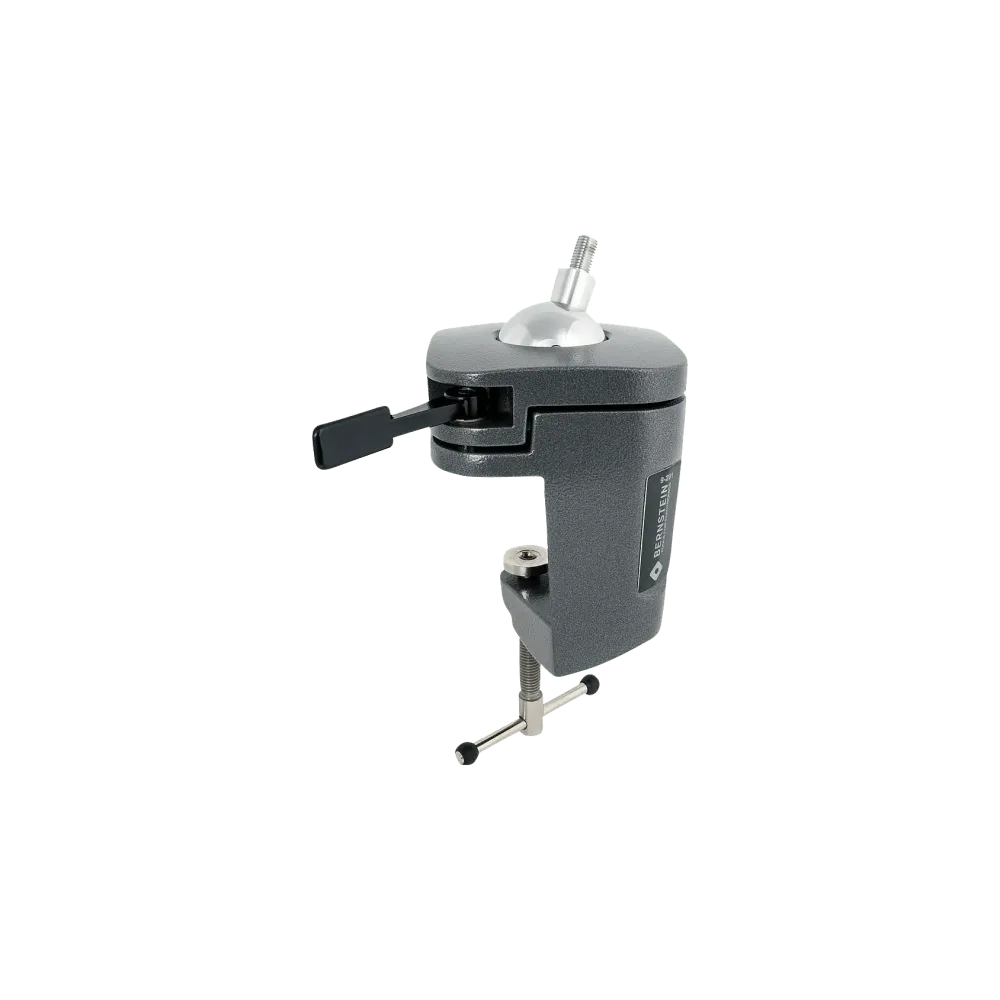

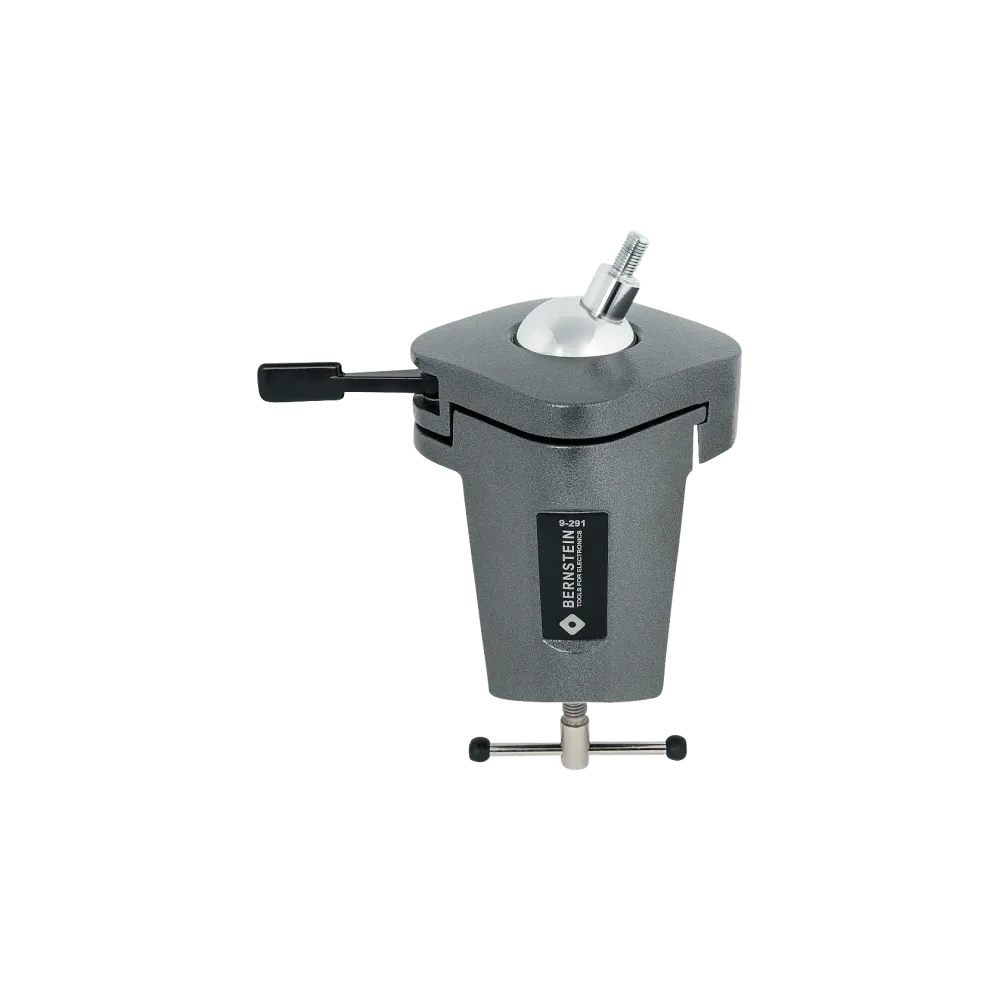

- Ball-and-socket quick-release clamp for heavy parts, 360° rotatable, continuously lockable, quality product Made in Germany
- For clamping to the workbench (table thickness max. 80 mm)
- Threaded stud M12 x 1.5 x 20 mm
- Mounting surface approx. Ø 20 mm
- Tilt angle +/- 45°
- Included in the scope of delivery: Schnorr washer and lock nut, lock nut for the thread
- Cast aluminum, powder-coated, dark grey metallic
- Orientation dimensions approx. 240 x 220 x 200 mm
- Weight 3000 g
Product specifications
| Manufacturer | BERNSTEIN |
| ESD safe | No |
| Product | Brackets |
