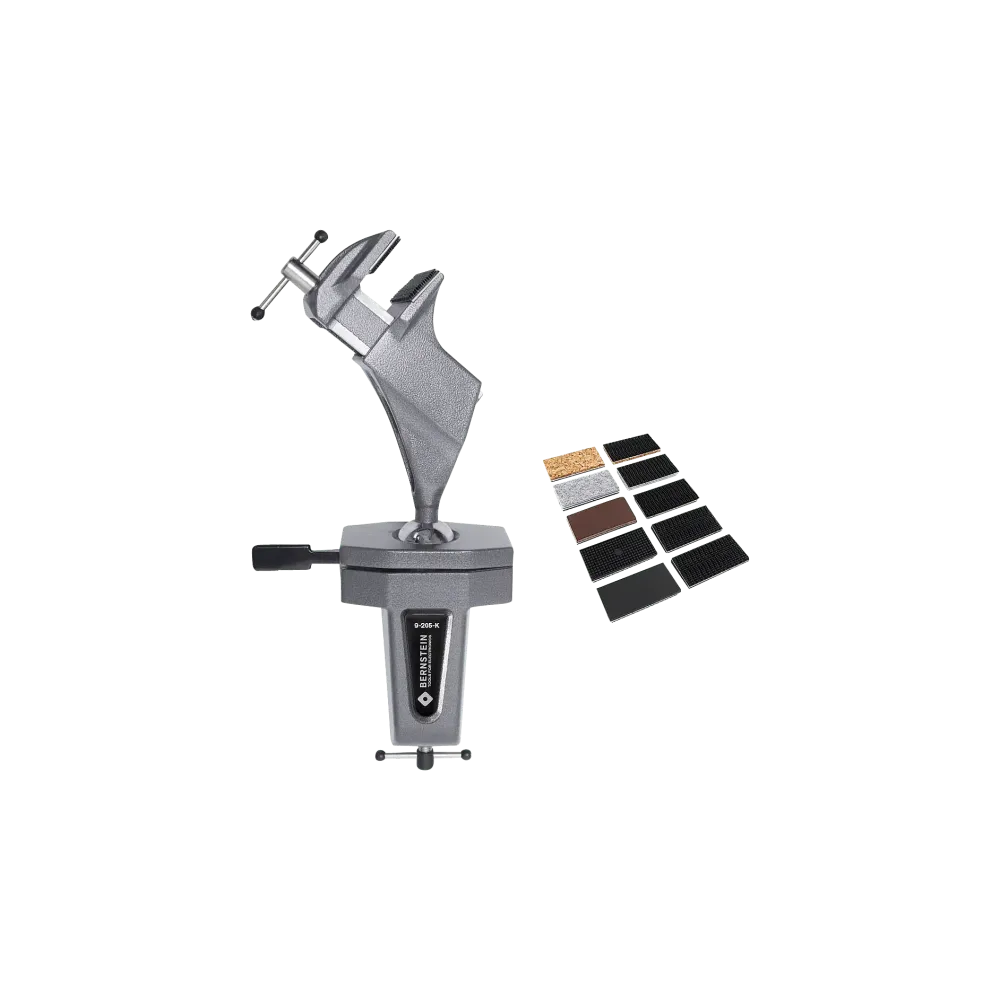

SPANNFIX ball joint vice for clamping (Velcro)

A small push of the lever is all it takes to continuously align the clamped workpiece in any convenient working position. The individual adjustment of the working height offers an ergonomic position for standing work (such as drilling, sawing, grinding, milling, cutting, etc.). The interchangeable clamping jaws of the ball-joint vices are 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise. We offer protective jaws for clamping scratch-sensitive workpieces in felt, leather, cork and rubber coverings. Jaws with aluminum prisms are suitable for pipe clamping, all jaws are available in jaw widths from 50 - 150 mm. The vice attachment for clamping is suitable for workbenches with a maximum table top thickness of up to 80 mm. The screw-on vice attachment can be connected to workbenches, tables and base plates via the four 9 mm through-holes. The high-performance magnets offer individual attachment, which can also be changed quickly from time to time

Technical data

• Precision ball joint 360° rotatable, infinitely adjustable quick release, quality product Made in Germany
• For clamping to the workbench (table thickness max. 80 mm)
• including 5 pairs of hook-and-loop 50 mm plastic jaws, ribbed, flexible pressure lock (Dual Lock from 3M) connection for re-release, firm, stable, precise and accurate connection
• Clamping width 70 mm, clamping depth 38 mm, clamping pressure 1470 N
• Tilt angle +/- 45°
• incl. interchangeable jaws (felt, cork, leather, corrugated plastic, smooth plastic)
• Cast aluminum, powder-coated, dark grey metallic
• Orientation dimensions approx. 310 x 170 x 75 mm
• Weight 1450 g

Scope of delivery

• 9-205-K Ball joint vice SPANNFIX for clamping (Velcro)
• 9-900-K50-FILZ Replacement jaws for hook and loop fastening Felt/Velcro 50 mm (pair)
• 9-900-K50-KORK Replacement jaws for hook and loop fastening cork/velcro 50 mm (pair)
• 9-900-K50-LEDER Replacement jaws for leather/velcro 50 mm (pair)
• 9-900-K50-KST Replacement jaws for Velcro fastening Plastic ribbed/Velcro 50 mm (pair)
• 9-900-K50-KSTG Replacement jaws for Velcro fastening Plastic smooth/Velcro 50 mm (pair)
