About the product

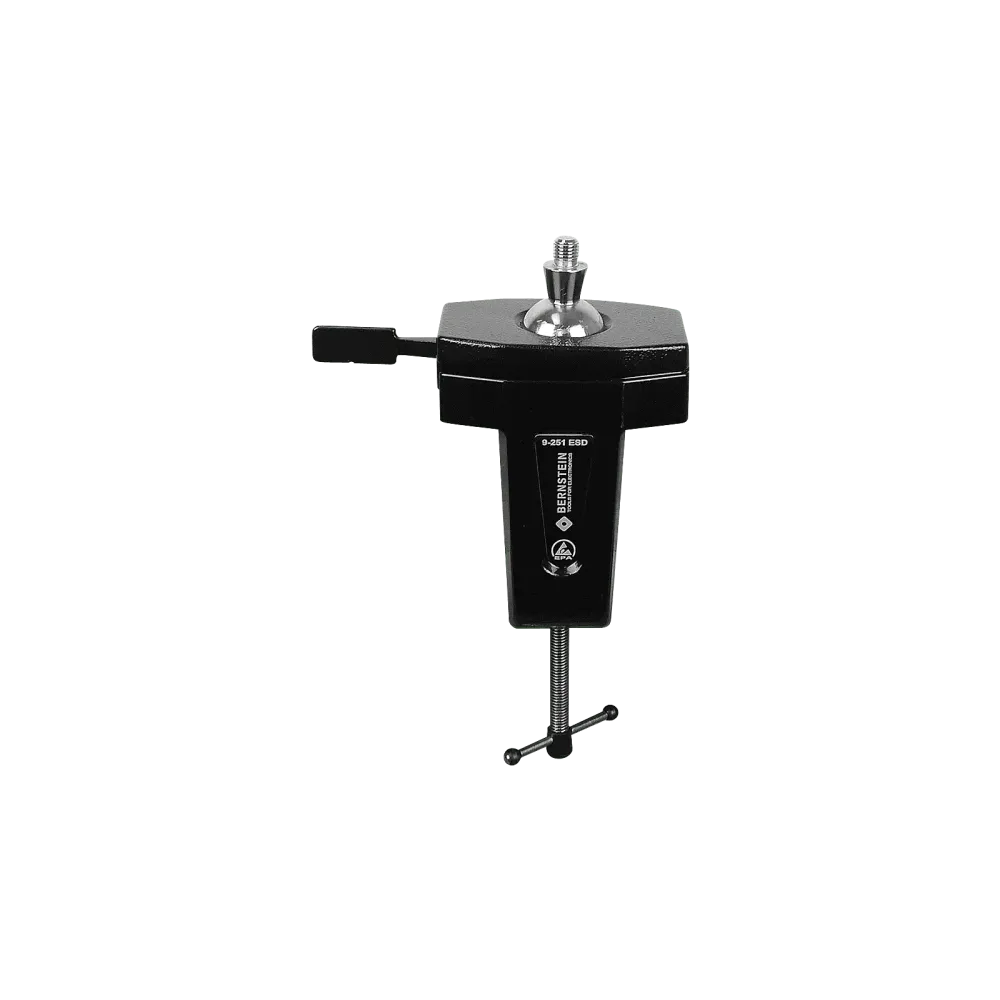

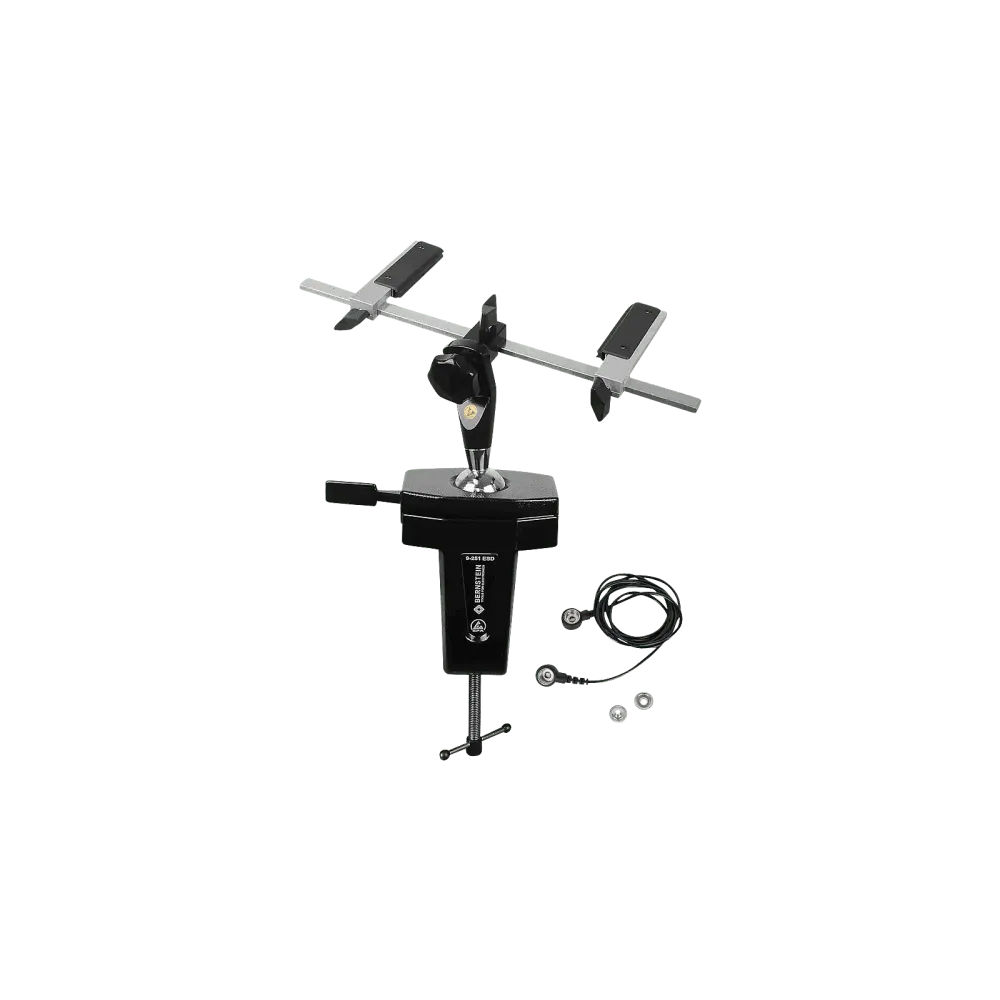

With the SPANNFIX VARIO, PCBs / circuit boards up to a length of 270 mm can be clamped. The infinitely adjustable ball allows the PCB to be positioned and held securely in all directions. Quick turning of the PCBs / boards is possible thanks to the adapter. Very helpful as a third hand when soldering or assembling, useful clamping and holding device with quick-release mechanism.
Technical data

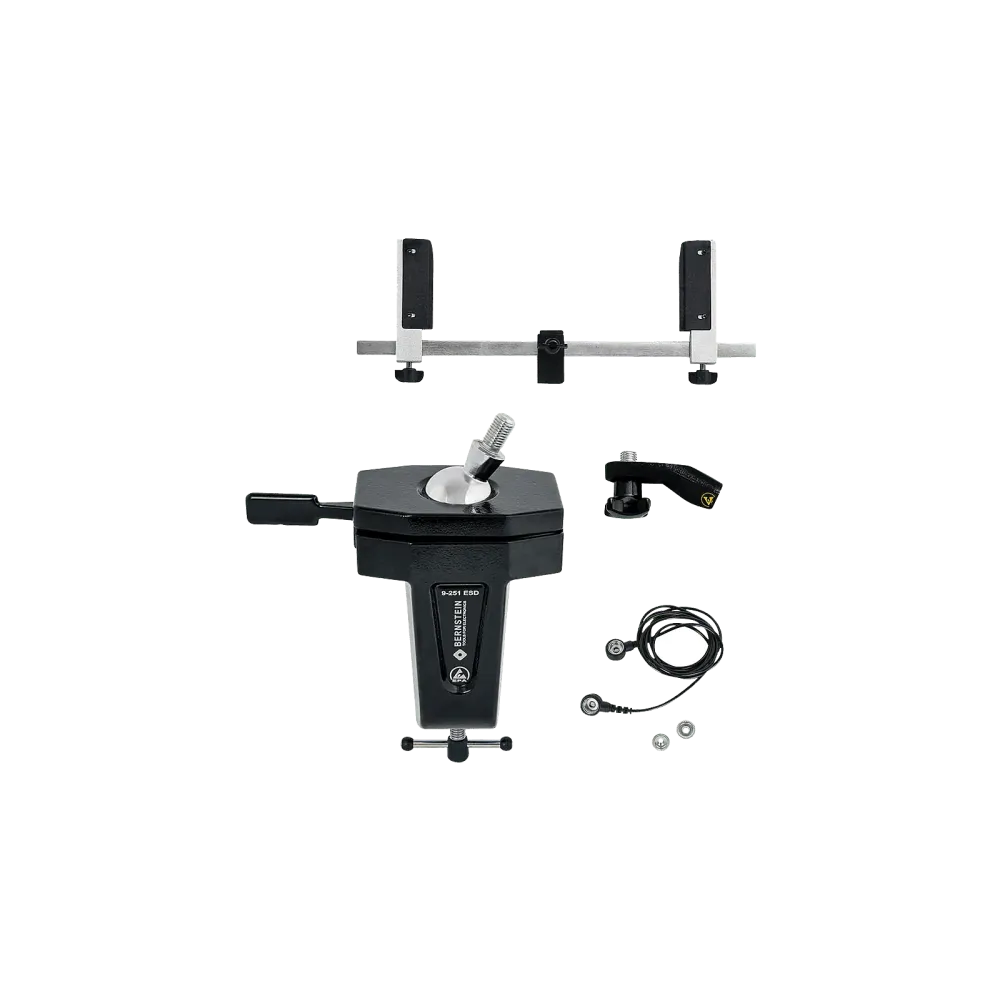

- Precision ball joint 360° rotatable, infinitely adjustable quick release, quality product Made in Germany
- Sturdy mounting frame with adjustable and rotatable holders
- with suspension for sensitive circuit boards, angle adapter for greater inclination
- Circuit board holder adjustable from 25 mm to 270 mm
- For clamping, for workbenches with max. worktop thickness of 80 mm
- Tilt angle +/- 45°
- incl. ESD earthing cable 1 MOhm, length 1.8 m for connection to an EBP / Earth Bonding Point
- Materials Steel, plastic, cast aluminum with ESD powder coating black, dissipative 10^7 to 10^8 Ohm
- Orientation dimensions approx. 360 x 280 x 180 mm
- Weight 1330 g
Product specifications
| ESD safe | Yes |
| Manufacturer | BERNSTEIN |
| Product | Vices |
