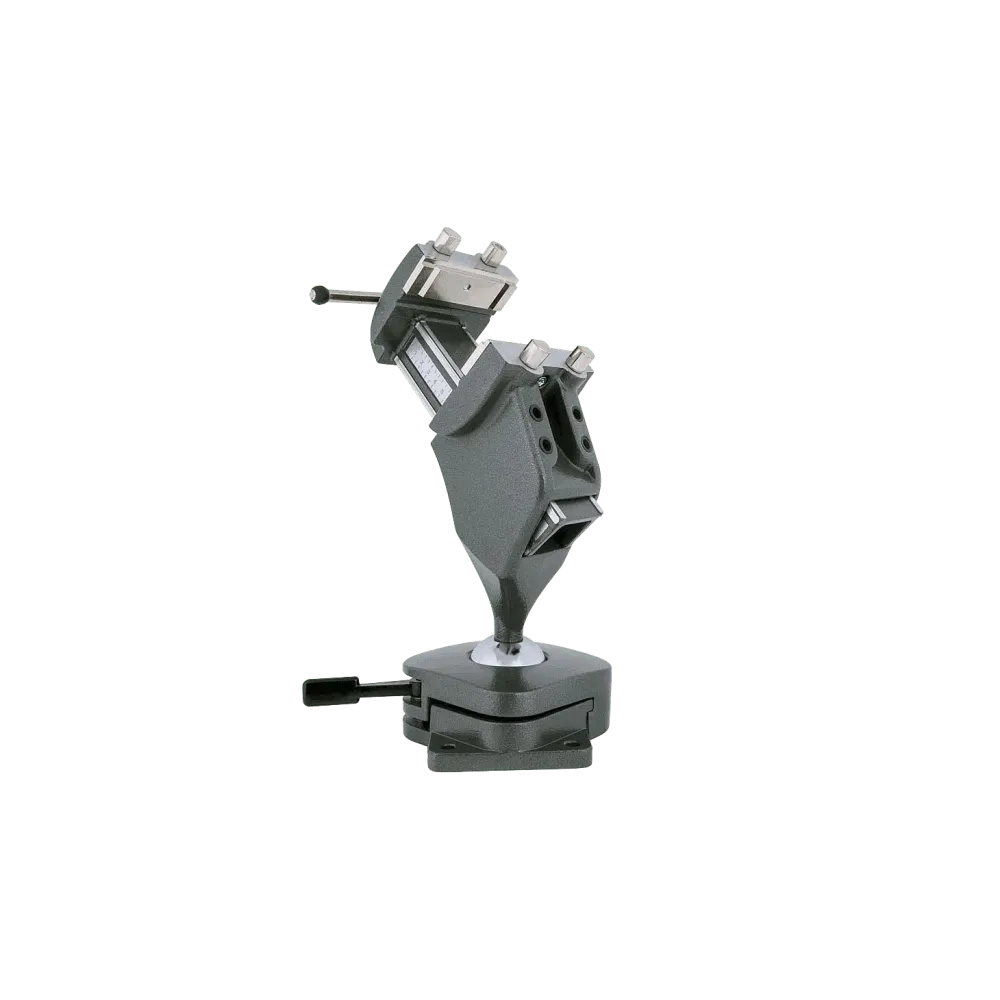

About the product
A small push of the lever is all it takes to continuously align the clamped workpiece in any convenient working position. The individual adjustment of the working height offers an ergonomic posture for standing work (such as drilling, sawing, grinding, milling, cutting, etc.).
. The interchangeable clamping jaws of the ball-joint vices are 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise. We offer protective jaws for clamping scratch-sensitive workpieces in felt, leather, cork and rubber coverings. Jaws with aluminum prisms are suitable for pipe clamping, all jaws are available in jaw widths from 50 - 150 mm.
. The vice attachment for clamping is suitable for workbenches with a maximum table top thickness of up to 80 mm. The screw-on vice attachment can be connected to workbenches, tables and base plates via the four 9 mm through-holes. The high-performance magnets offer individual attachment, which can also be changed quickly.
Technical data
- Precision ball joint 360° rotatable
. Infinitely adjustable quick clamping
. Quality product 100% Made in Germany - For screwing onto the workbench (space dimensions: 152x151mm)
- 100 mm steel jaws (replaceable)
- Clamping width 100 mm
. Clamping depth 50 mm
. Clamping pressure 12,000 N - Tilt angle +/-45°
- incl. steel jaws 9-900-0773-1 (pair)
. Dowel pins 9-900-S1000 (PU4)
. Further accessories: Protective jaws search field input 9-900 - Cast aluminum, powder-coated, dark grey metallic
- Orientation dimensions approx. 290 x 160 x 190 mm
- Weight 4720 g
Product specifications
| Manufacturer | BERNSTEIN |
| ESD safe | No |
| Product | Vices |
| Jaw width | 100 mm |
Data sheets
