About the product

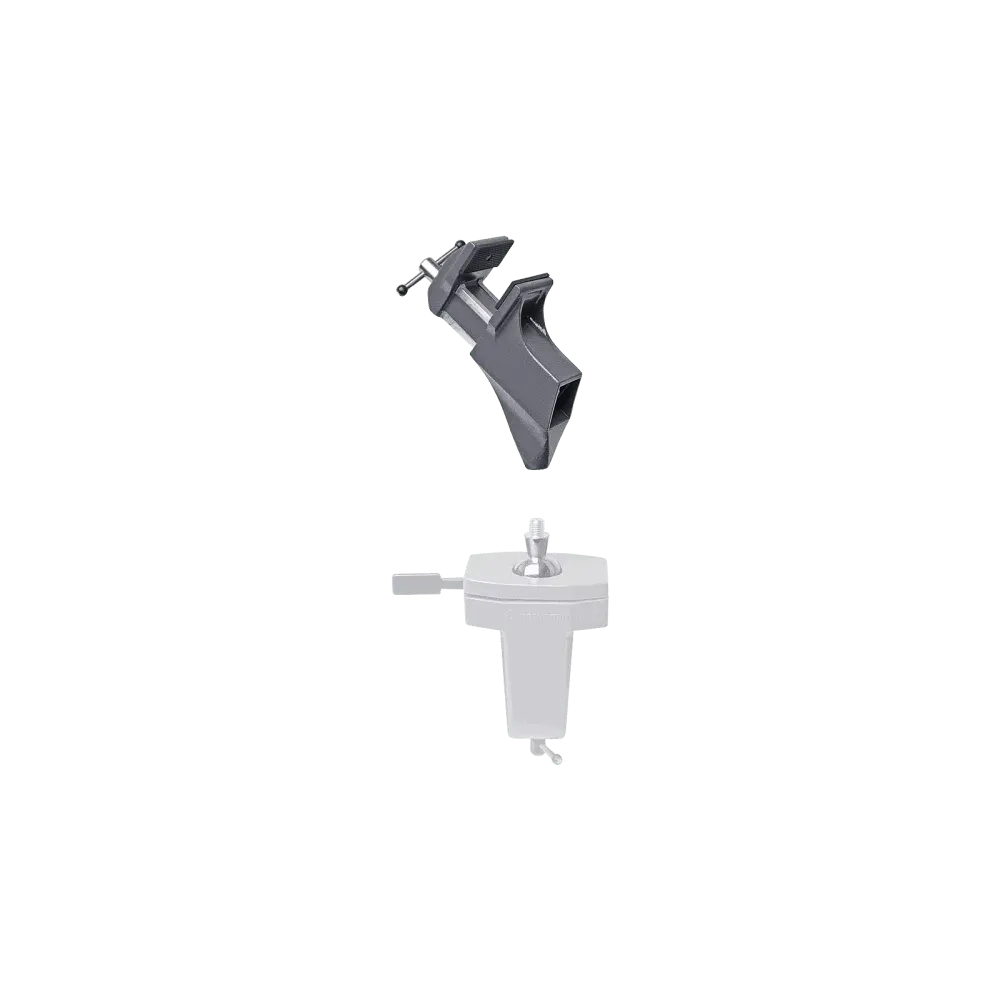

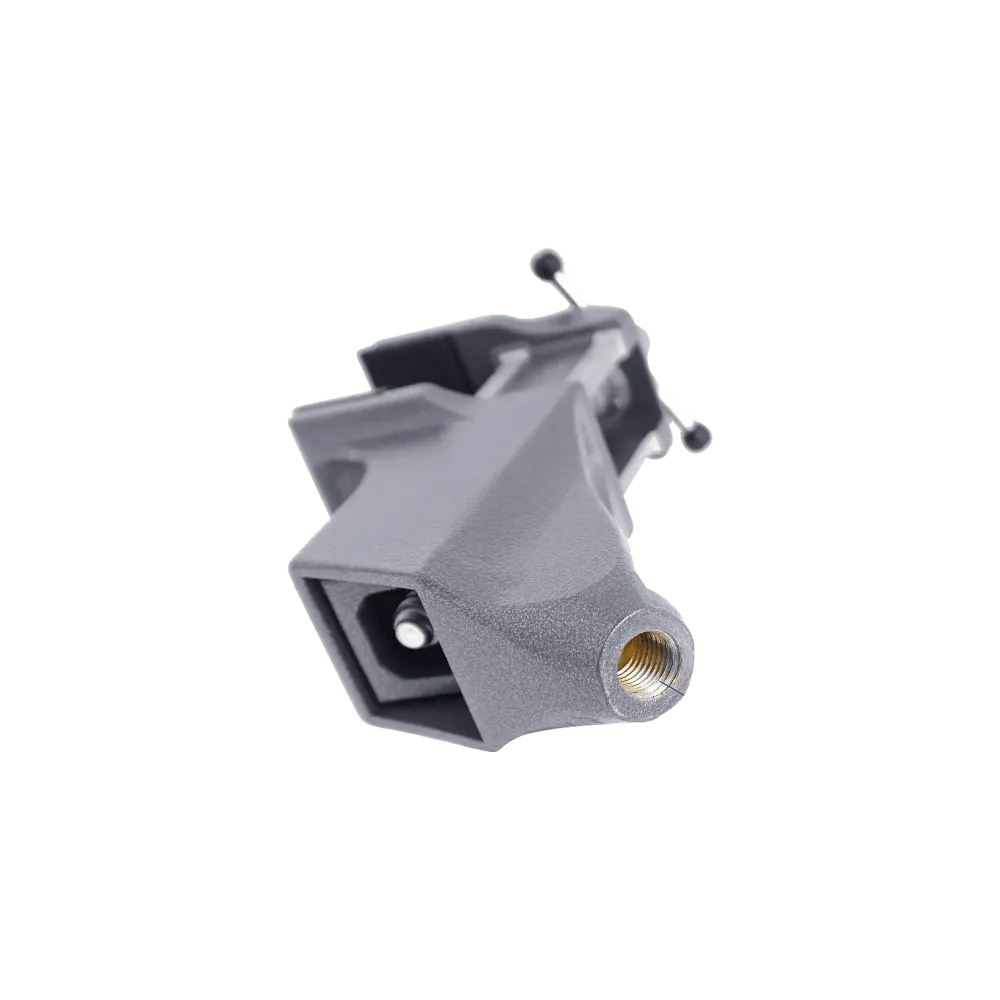

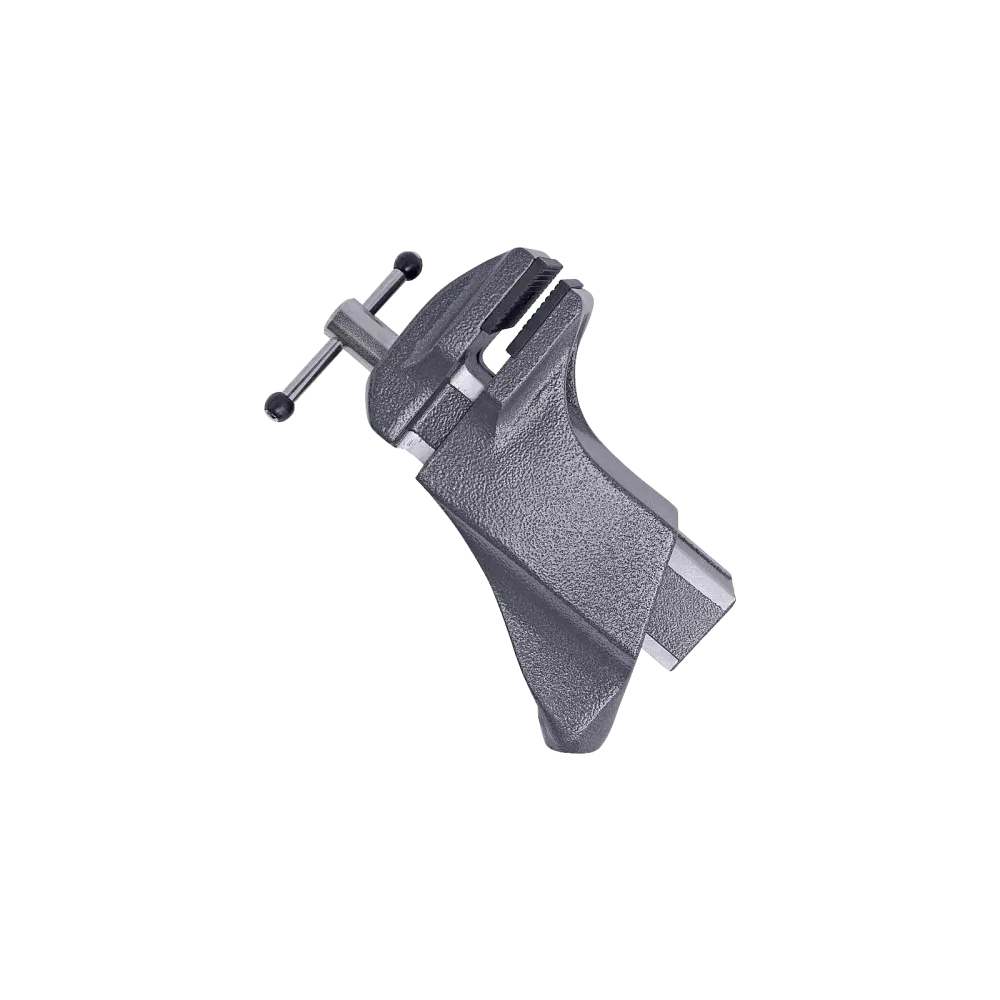

The BERNSTEIN ball-joint vice has an infinitely adjustable articulated head that can be rotated through 360° and tilted +/- 45°. The upper part of the vice can therefore be tilted in any direction, allowing you to work in front of or above the table. With a simple lever movement, the vice head is released in the tapered socket, individually aligned and clamped again. Without any locking mechanism, the ball clamp provides an extremely strong hold.
Technical data
- 360° rotatable for precision ball joint
. Infinitely adjustable quick clamping
. Quality product 100% Made in Germany - to screw on for ball joint holders 9-251, 9-261, 9-281
- 50 mm plastic jaws with grip
- Clamping width 70 mm
. Clamping depth 38 mm - Clamping pressure 1470 N
- Accessories: Replacement jaws
. Article 9-900-E50 (pair)
. further jaws search field entry 9-900 - Cast aluminum, powder-coated, dark grey metallic
- Orientation dimensions approx. 180 x 70 x 50 mm
- Weight 560 g
Product specifications
| Manufacturer | BERNSTEIN |
| ESD safe | No |
| Jaw width | 50 mm |
| Product | Screw heads |
